Didn't find what you were looking for? Configure your letterbox entirely to your own specifications!

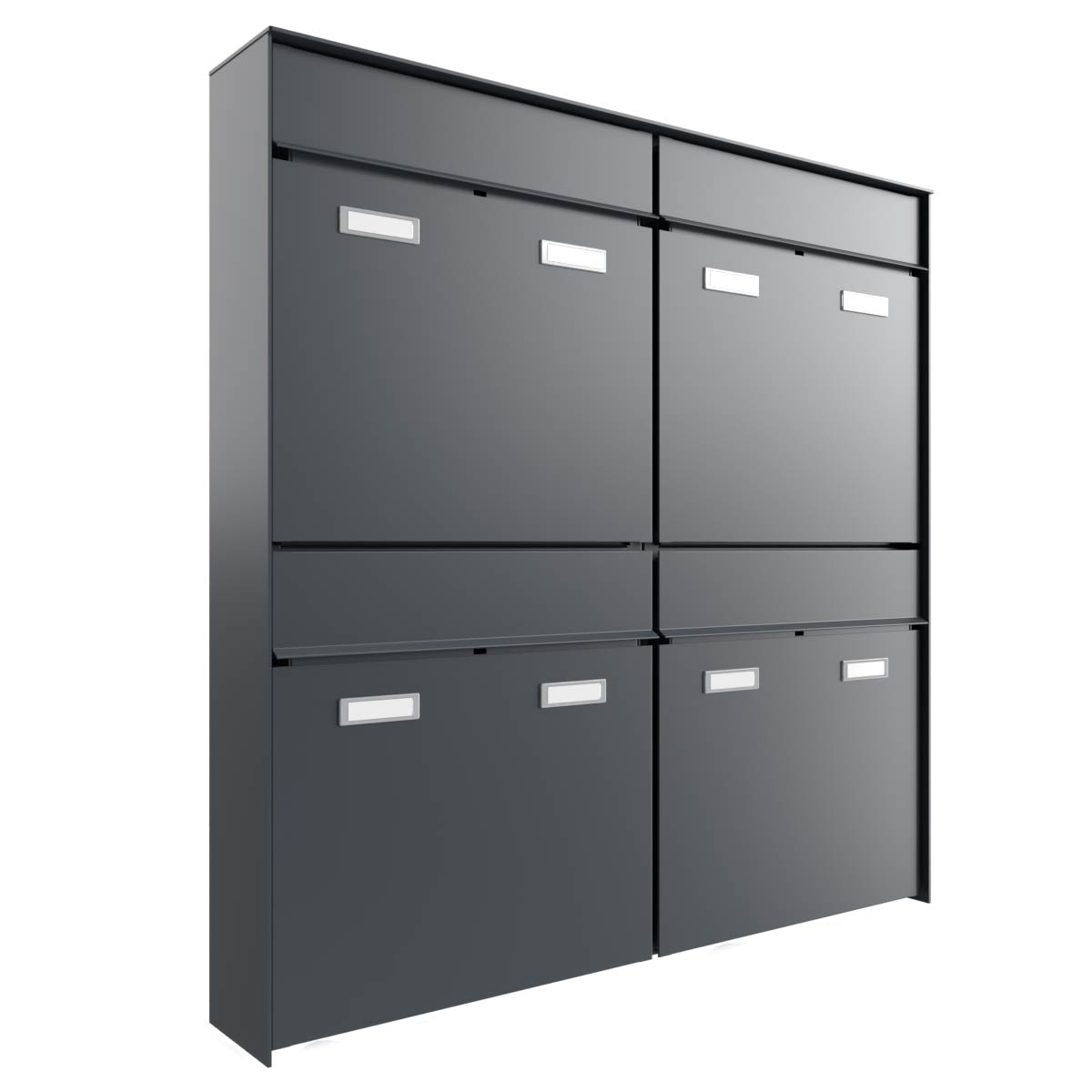

4-piece 2x2 design surface-mounted letterbox system GOETHE AP - RAL of your choice
High-quality manufactured 4-party surface-mounted letterbox system. The modern GOETHE letterbox is ideal for the sophisticated entrance area. The linear design without a visible lock makes this letterbox look particularly elegant.

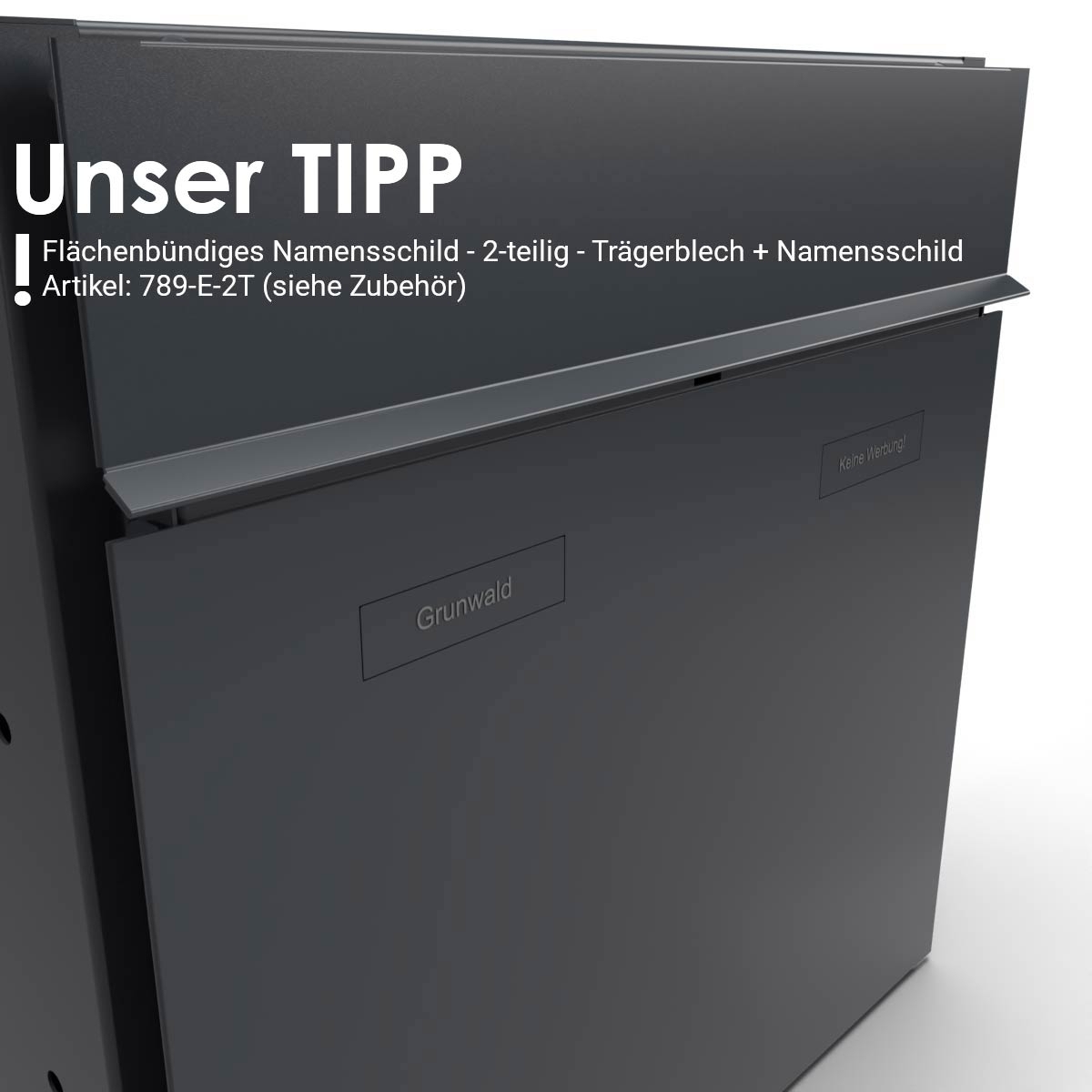

The dimensions of the individual boxes allow for a capacity of approx. 16 litres, while the large slot guarantees no crumpled mail, even with DIN C4 envelopes and magazines or after several days of absence. The innovative push-key lock is concealed inside the letterbox. The key is simply inserted into the existing opening (no turning required) and the door opens. With the arrangement of the lock, this letterbox is designed in such a way that the removal door prevents the mail from falling towards you. The water drainage edge ensures that the mail inside is optimally protected from the weather. The insertion flap is fitted with high-quality axle dampers, guaranteeing quiet closing and preventing annoying rattling caused by the weather. The interchangeable Plexiglas name plates can be conveniently operated from the front; for an optimum look, we recommend the flush-fitting name plate with laser engraving (see accessories). The 2nd nameplate is fitted with a Yes/No advertising insert.
The surface-mounted letterbox systems in the GOETHE collection are characterised by the consistent use of stainless steel and aluminium. The result is a very long service life and sustainability. The design has been developed by our own engineers with a view to high flexibility and modularity, simple spare parts assembly and uncomplicated self-assembly. Spare parts for all GOETHE systems are available directly in our shop.
Thanks to the design, self-assembly is uncomplicated.
Protected utility model according to DPMA file number DE: 20 2021 101 679.5
- High-quality 4-post surface-mounted letterbox made of stainless steel and aluminium.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- Letterboxes made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL colour of your choice.
- Innovative push-key lock with 2 keys per party.
- Mail is inserted and removed from the front. Insertion flap with high-quality axle dampers for very quiet mail insertion.
- The letterboxes comply with DIN/EN 13724. Insertion size (3.5 cm x 36.0 cm) for C4 across, even large letters fit in here without creasing.
- Removal doors open from top to bottom. This prevents the mail from falling towards you.
- Plexiglas nameplate for name labelling and 2nd nameplate advertising yes/no per party.
- Optional house number lettering approx. 70-80 mm high.
- Optimum rain protection thanks to rain run-off edges and a rain canopy made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Side cladding made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Incl. mounting rail for wall mounting.
Important information:
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is fully inserted in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to enter the letterbox. This system is protected against the ingress of water in accordance with DIN EN 13724. Water ingress is not a reason for complaint.
| Material: | Aluminium AlMg3 W19, Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301 |
|---|---|
| Number of boxes: | with 4 letterboxes |
| Removal of mail: | On the front |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Height of single box in mm: | 400,0 |
|---|---|
| Width of single box in mm: | 400,0 |
| Capacity in litres: | 16 |
| Height of letterbox slot in mm: | 35,0 |
| Width of letter slot in mm: | 360,0 |
| Height of letterbox in mm: | 800,0 |
| Width of letterbox system in mm: | 800,0 |
| Total width in mm: | 808,0 |
| Depth in mm: | 200.0 + 25.0 Rain roof |
| Weight in kg: | 29 |
| Delivery condition: | Delivery is assembled |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |
“Make the noble simple, make the simple noble.” – Johann Wolfgang von Goethe

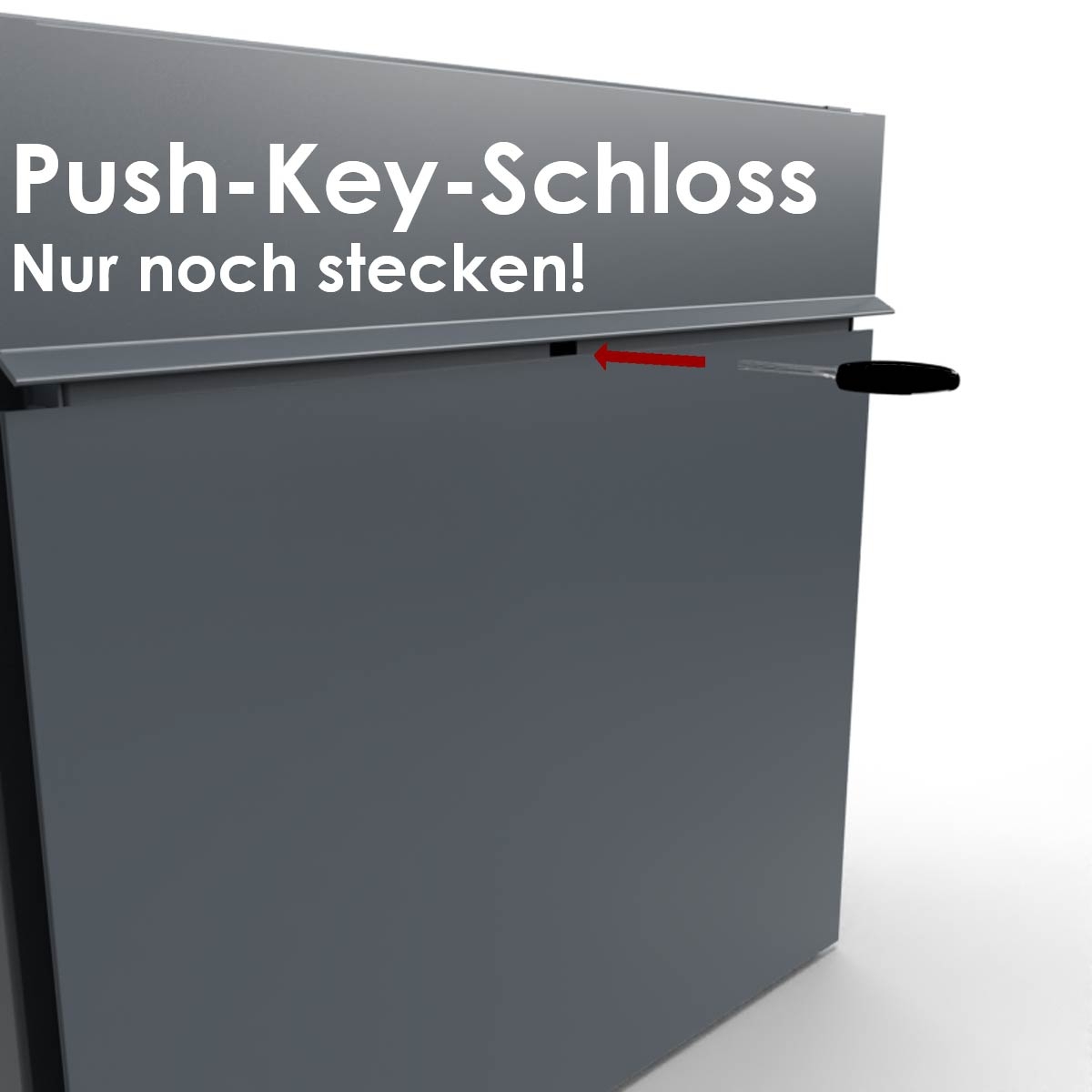

How does the Push-Key lock work?
With our latest development, the Push-Key lock, we are revolutionising the world of letterbox security. This pioneering lock is supplied with two keys.
The special feature of this lock is its groundbreaking, purely mechanical technology. The key only needs to be inserted, with no turning action required – a simple operation for the owner.
Locking is equally straightforward: the flap is simply pushed shut. No more fiddling or turning – our Push-Key lock offers maximum security with minimal effort. Experience a new era of user-friendliness and innovation in locking mechanisms.
Is the GOETHE letterbox sustainable?
The revolutionary GOETHE System from the Briefkasten Manufaktur redefines sustainability in product design. Every element of this System is interchangeable, creating a durable solution that lasts a lifetime. This approach opens up unique possibilities and elevates the product well above the market standard.
With the GOETHE System we are setting a milestone in sustainable product development. Our commitment to environmental protection and longevity is reflected in this innovative concept. By minimising the need to discard items, we reduce resource waste and contribute to a sustainable future.
Is the GOETHE® collection available in the configurator?
The GOETHE® letterbox is available in all mounting variants offered by Briefkasten Manufaktur. This means the GOETHE® letterbox is offered both as a wall-mounted and as a freestanding letterbox. In the wall-mounted version the mounting options are through-the-wall, flush-mounted and surface-mounted. In the freestanding version the mounting options are a pedestal (Stele) or freestanding elements. All variants can be created in the Letterbox Configurator.
