Which mounting component do I need for my door intercom system?
The correct mounting component depends on the door communication system and on how the equipment should be integrated into the wall, façade, mailbox or metal front.
For a surface-mounted installation, for example, a suitable housing is required. For a BML flush-mounted solution, a specially prepared stainless steel front panel may be used instead. Other modules serve as mounts for speakers, doorbell buttons, nameplates or additional functions.
Therefore, not only the visible dimensions are decisive. System family, number of modules, orientation, installation depth, fixing method and the actual scope of delivery must match.
Housing, front panel or built-in module – what's the difference?
| Component | Purpose | Typical use | Check before ordering |
|---|---|---|---|
| Surface-mounted housing | accommodates the intended system modules and is mounted on the surface | retrofit installation or deliberately surface-mounted door station | number of modules, system family and orientation |
| Flush-mounted front panel | provides the visible BML front for a solution more integrated into the wall or façade | new build, renovation or an architecturally calm entrance solution | cut-out, depth, required system housing and included components |
| Built-in module / preparation | provides a mount, cut-out or fixing for on-site equipment | speakers, buttons or custom door communication components | permissible dimensions and the actually compatible built-in device |
| Cover plate | forms the visible surface of an existing system module | call button, blank position or other modular system functions | type of module and manufacturer assignment |
| Blank module | closes an unused module position | modular systems with an empty functional slot | system grid and desired surface finish |
When is a surface-mounted housing suitable?
A surface-mounted housing is suitable when the door communication is to be mounted directly on an existing surface and no deep flush-mounted installation is planned.

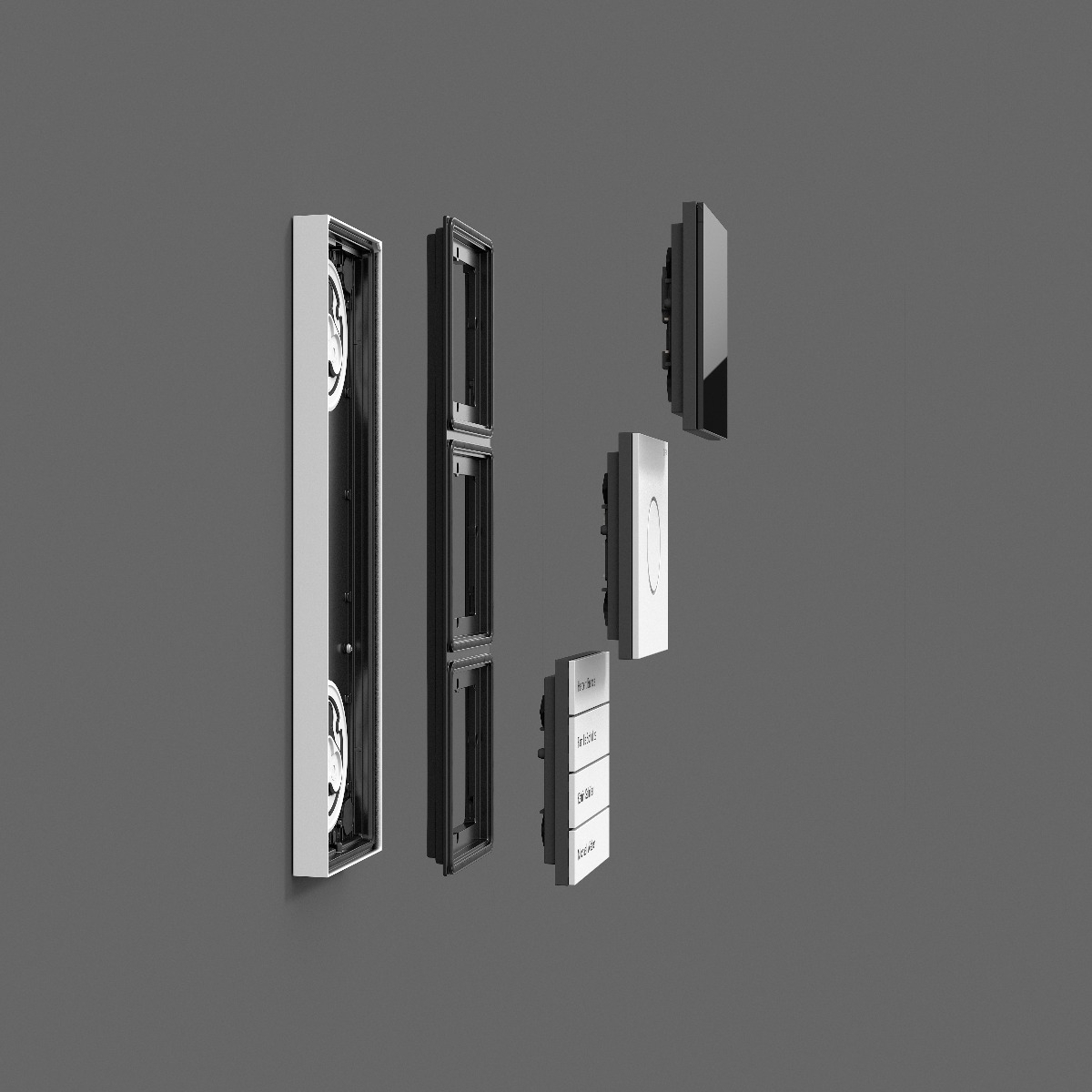

For Gira System 106, different housing sizes are available for multiple module counts. This allows, for example, the combination of call button, voice, camera and information module to be configured to match the system.
It is important to determine the housing size and required modules before installation. Cable routing and the fixing substrate should also be clarified in advance.
How is Gira System 106 integrated into a BML flush-mounted front?
For a solution more integrated into the façade, BML offers its own stainless steel front panels, which are structurally prepared to accommodate Gira System 106 modules.
Depending on the design, different module grids and arrangements are available. The front can therefore be planned to suit the architecture and the required functions.
Important: The BML front panel does not automatically replace all Gira components. The housing required for module installation as well as camera, voice, call and other system modules must be taken into account according to the specific design.
This is precisely where a key BML advantage lies: system technology and our own metal fabrication are structurally coordinated with one another.
What does "prepared for door communication" mean?
A preparation means that BML has structurally prepared the mechanical component for the later installation of a specific or on-site component.
Prepared
Cut-out, perforation, mounting bracket or adapter are present. The actual electronic component, however, is not automatically part of the item.
With system technology
If a product is explicitly offered with a camera, voice module or complete set, the specified equipment is included in the item according to the concrete scope of delivery.
When is a prepared module for a built-in speaker useful?
Not every project uses a visible standard door station. Often an existing or on-site audio component is intended to be hidden behind a uniform metal front.
For this, prepared BML modules can provide a speech perforation and a rear fixing option. The actual audio technology is then added to suit the chosen system.
This also allows project-specific requirements to be implemented, where the technology remains in the background and the entrance area retains a uniform appearance.
View speakers & voice modules →Surface-mounted or flush-mounted – which mounting method suits?
| Mounting method | Character | Especially suitable for | Planning |
|---|---|---|---|
| Surface-mounted | housing is visibly mounted on the surface | existing façades and retrofitting | fixing, cable routing, housing size and number of modules |
| Flush-mounted | technology is more integrated into the wall or façade | new build, renovation and particularly calm design | fix the wall opening, installation depth, housing, cables and front dimensions early on |
| Integration into a BML front | system technology becomes part of a custom-manufactured metal solution | mailbox systems, bell plates, steles and special solutions | agree system, function, positions and metal construction together |
Plan mounting components not in isolation, but as part of the entrance
The special advantage of BML is that mounting components and door communication can be combined with our own metal fabrication.
This allows the front panel, mailbox, call button, camera, speaking unit, labelling and other functions to be structurally coordinated in advance.
Depending on the product, stainless steel, powder coating, different module grids and project-specific preparations are available.
This is particularly interesting when a standard door station does not fit the desired entrance solution aesthetically or structurally.
Add suitable components for the installation
Door station
Complete external station with doorbell, speaking function and, depending on the version, camera.
View door stations →Speakers & microphones
Built-in speakers and voice modules for prepared or modular speaking units.
View audio components →System devices
Power supplies, control units, gateways and interfaces matching the chosen door communication.
View system devices →Door communication
Consider external station, internal station, installation, system devices and access control together.
Door communication overview →What must be considered when installing door communication components?
In addition to mechanical fixing, cable routing, power supply and the requirements of the respective communication system must be taken into account.
For flush-mounted solutions, the installation opening and depth should be finalised before starting façade work. For surface-mounted housings, a load-bearing substrate and suitable cable routing are important.
Electrical or networked door communication should be connected and commissioned by qualified personnel in accordance with the manufacturer's documentation.
Frequently asked questions about mounting components for door communication
What belongs to the mounting components of a door intercom system?
Depending on the system, this can include surface-mounted housings, front panels, cover plates, blank modules, mounting brackets, adapters and other mechanical integration components.
What is the difference between a surface-mounted housing and a flush-mounted front panel?
A surface-mounted housing sits visibly on the wall. A flush-mounted solution integrates the technology more into the wall or façade and therefore requires a correspondingly planned installation opening.
Are Gira modules included with a prepared front panel?
Not automatically. A front described as prepared primarily provides the structural mounting for the intended modules. The specific scope of delivery must be checked on the respective item.
How many Gira System 106 modules do I need?
That depends on the desired range of functions. Voice, camera, call buttons, information and other functions each occupy their own module positions depending on the setup.
Can Gira System 106 also be mounted horizontally?
For housings or BML front panels designed for this purpose, different arrangements are possible. Which orientations are available depends on the specific size and version.
Can a custom built-in speaker be mounted behind a BML front?
For suitable projects, BML offers prepared modules with a speech opening and rear mounting. Whether the desired speaker fits must be checked based on its dimensions and technical requirements.
Can an existing door intercom system simply be installed in a new front?
That depends on the system, dimensions, fixing, cable routing and required openings. For an existing system, the current components should therefore be documented in detail before construction.
Who should install door communication and mounting components?
The mechanical installation must suit the respective installation situation. Connection and commissioning of electrical or networked door communication should be carried out by qualified personnel in accordance with the manufacturer's instructions.
We help you choose the right mounting component
Tell us the planned door communication system, the required functions and the installation situation. For existing systems, photos, model designations and dimensions of the current components are helpful. For new projects, the metal front and system technology can be planned together from the start.
