Park e-bikes, secure accessories and charge the battery
A good e-bike charging station needs more than an accessible socket. Riders want to park their bikes securely, store battery and charger protected, and not have to wait next to them while charging. The ACHIM system combines bicycle spaces with a lockable locker unit for exactly this purpose.
Depending on the version, three, four or five bicycle spaces are available. The lockers can be equipped with internal Schuko sockets. This allows a removable e-bike battery to be charged together with its own charger inside the locked compartment. Helmets, bags and other accessories also find a protected place.
Which size suits your project?
Plan not only for today's demand. At hotels, employers, residential complexes or tourist destinations, usage can grow quickly. The three sizes lead directly to the appropriate variants with the locker unit arranged on the left or right.
View 3-space versions →
View 4-space versions →
View 5-space versions →
| Configuration | Suitable locations | Locker unit | Planning note |
|---|---|---|---|
| 3 bicycle spaces | Small businesses, guesthouses, holiday properties, residential buildings | Three lockable compartments, left or right | Check space requirements and expected usage with a reserve |
| 4 bicycle spaces | Offices, hospitality, multi-family houses, municipal locations | Four lockable compartments, left or right | Define access rules and daily user rotation |
| 5 bicycle spaces | Hotels, companies, excursion destinations and larger residential complexes | Six lockable compartments, left or right | Plan circuits and simultaneous charging early |
How a bicycle parking area becomes a usable e-bike charging station
The charging function arises from the interaction of a secure parking place, protected compartment, appropriate socket and clearly regulated access. This makes the installation particularly attractive for changing users.
Store battery and charger protected
For removable batteries, the battery and matching charger are stored in the locker. The internal socket supplies the charger while the compartment remains locked.
Locking system suited to the usage
Lever locks are suitable for permanently assigned users. Latch locks permit the use of a personal padlock. RFID is useful where access should be convenient and without a conventional key.

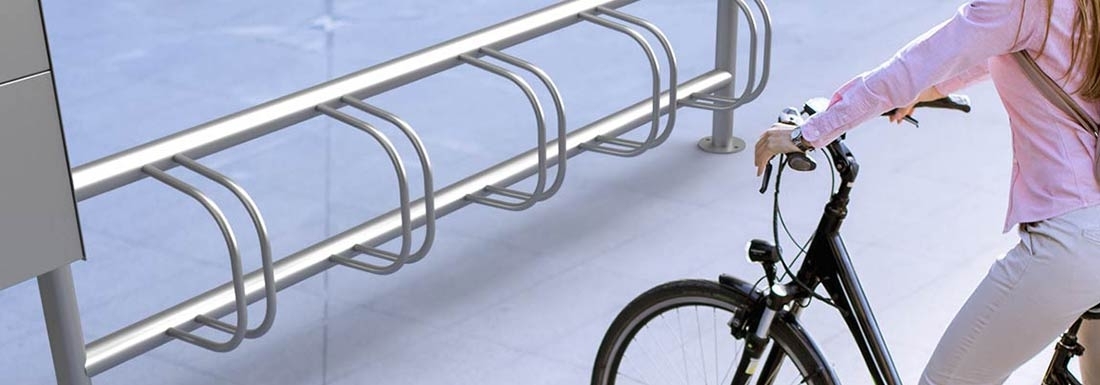

Park bicycles stably and in order
The welded stainless steel construction guides wheels at a 90-degree angle. For planning, allow for tyre widths up to 60 mm and a wheel spacing of 430 mm.
Mounting to suit the ground
For existing load-bearing surfaces there are base elements for bolt-down mounting. For newly planned outdoor areas, longer base elements can be set in concrete.
What matters before ordering
The suitable number of bicycle spaces is only the first step. Equally important are the position of the lockers, the type of anchoring, the cable routing and the number of batteries to be charged simultaneously. For publicly accessible installations, signage, permitted usage duration, key management and regular inspection should also be determined.
The electrical connection, protective measures and testing of the optional sockets must be carried out by a qualified electrician. They will coordinate cabling, protection and residual current device to suit the location, number of sockets and expected simultaneous use.
Frequently asked questions about bicycle and e-bike charging stations
Is an e-bike charger included in the station?
No. The optional equipment provides a Schuko socket inside the locker. Users use the charger appropriate for their own battery. This keeps the installation usable with different e-bike systems.
How many bicycles can be parked?
The ACHIM system is available for three, four or five bicycles. The five-bicycle version has six lockers. For larger projects, multiple systems can be combined or bespoke solutions requested.
Which locking systems are available?
Depending on configuration, lever locks with keys, latch locks for using a personal padlock and RFID mortice locks are available.
Can the locker unit be mounted on the left or right?
Yes. Product variants differ between locker units arranged on the left or right. The position should be chosen according to access, route guidance and available space.
Is a double-sided wheel arrangement possible?
The standard versions are designed for single-sided bike parking. A double-sided solution can be requested for specific projects.
How is the e-bike charging station fixed in place?
Depending on the selected base elements, bolt-down mounting on a load-bearing foundation or setting in concrete is possible. Foundation, fixings and cable routing must suit the location and the specific version.
Who is allowed to connect the sockets?
Electrical connection, protective measures, testing and commissioning must be carried out by a suitably qualified electrician.
Looking for bicycle stands without charging lockers or a separate power supply?
For pure bicycle parking spaces you will find additional bicycle stands and leaning hoops. If flexible Schuko or CEE connections are needed for gardens, businesses or outdoor areas, power and socket columns are the more appropriate product group.
Select an e-bike charging station or plan your project together
Compare the ACHIM versions with three, four or five bicycle spaces. For hotels, companies, residential complexes and public sites, a site plan, desired capacity, mounting type and details of the power supply help us to assist you.
