Design video door intercom GOETHE UP with COMELIT Switch - VIDEO complete set - RAL of your choice
High-quality door station with a seamlessly integrated Comelit video intercom system. The modern GOETHE video door intercom system is ideal for demanding entrance areas. This state-of-the-art system offers advanced features including face recognition, voice control and convenient operation via smartphone app. Perfectly pre-programmed, it enables straightforward installation - just connect two wires and the system is ready to go! Depending on your needs, the set is available either with a gateway without a home station (home stations can be optionally extended) or with a WiFi-enabled home station to ensure maximum flexibility and customisation to your individual requirements.
The letterbox systems in the GOETHE collection are characterised by the consistent use of stainless steel. The result is very high durability and sustainability. The design has been developed by our own engineers with a view to high flexibility and modularity, simple spare parts assembly and uncomplicated self-assembly. Spare parts for all GOETHE systems are available directly in our shop.
Thanks to the design, self-assembly is uncomplicated.
Protected utility model according to DPMA file number DE: 20 2021 101 679.5

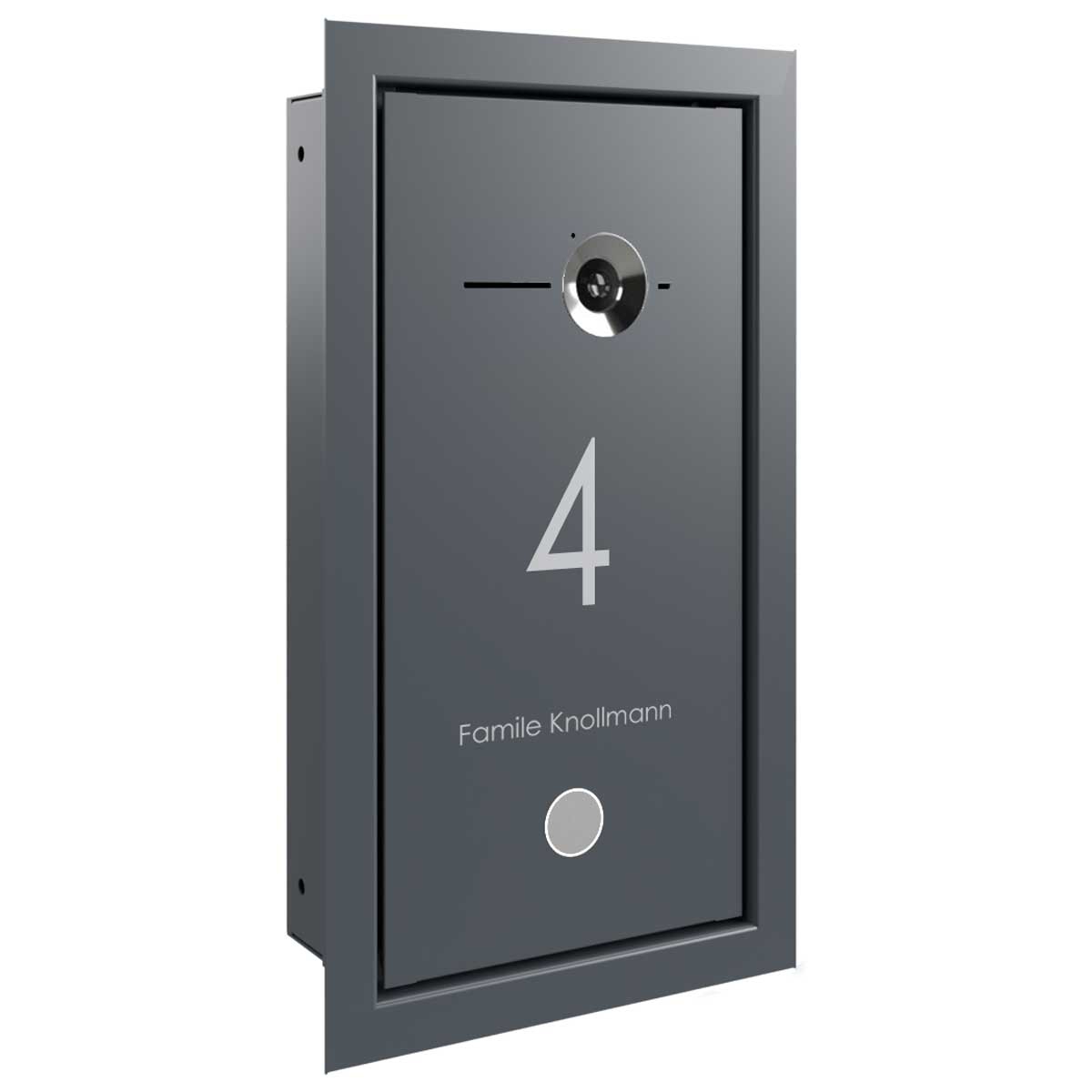

- Flush-mounted door station made entirely of stainless steel, powder-coated in RAL colour of your choice.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- EU compliant: COMELIT as a guarantee for your data - the cloud server infrastructure belongs to COMELIT and is located in Europe (in Frankfurt, one of the most important financial centres in Europe and a major location for the data centre industry) and is managed in partnership with the most important cloud provider in the world: Amazon AWS (Amazon Web Services).
- Functional box (BH 200x400mm) made of stainless steel 1.4016 (magnetic stainless steel), powder-coated in RAL colour of choice.
- Cover can be opened from top to bottom.
- 8-12V DC short-stroke bell push-button with white LED ring lighting.

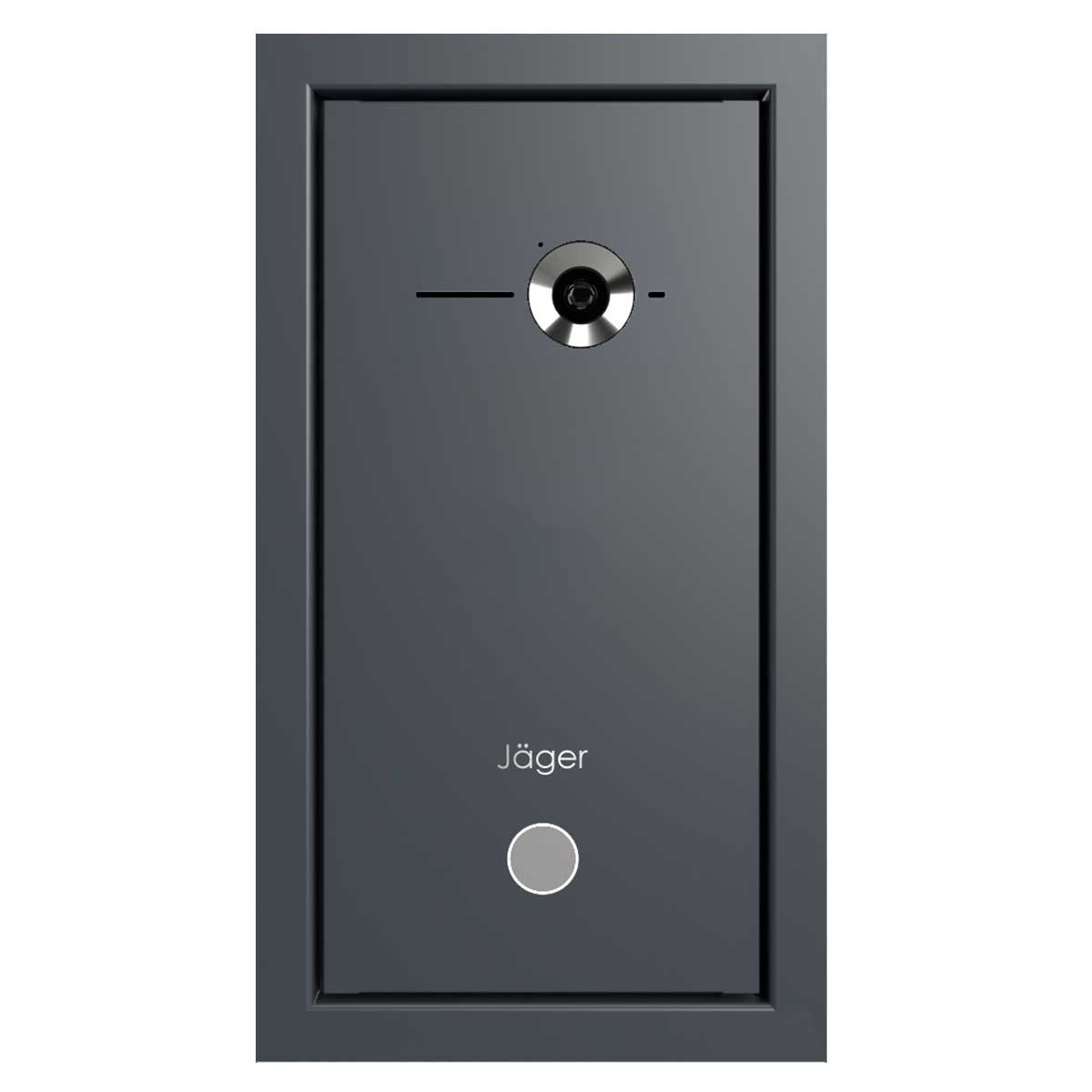

- Optionally with name labelling approx. 10-20mm high.

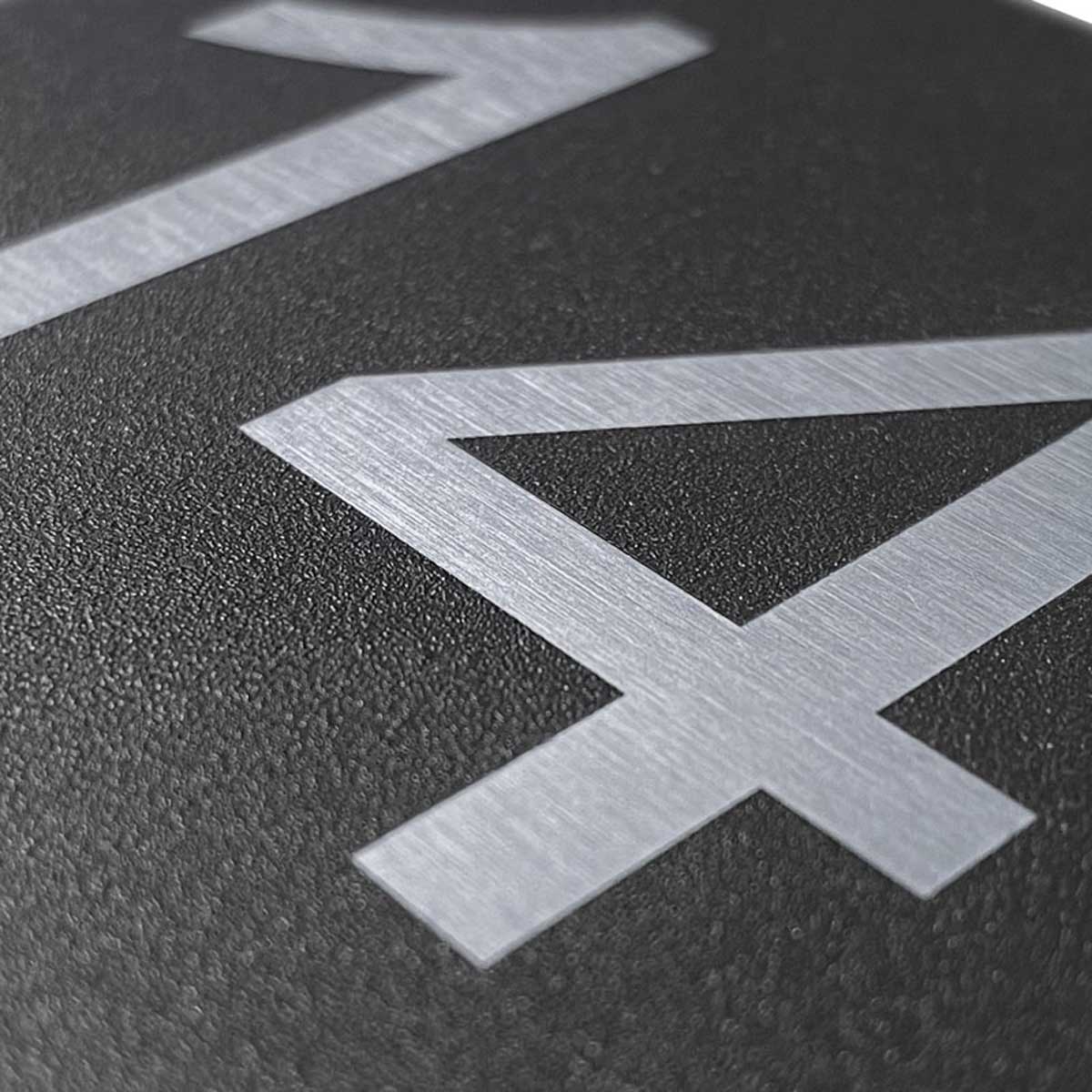

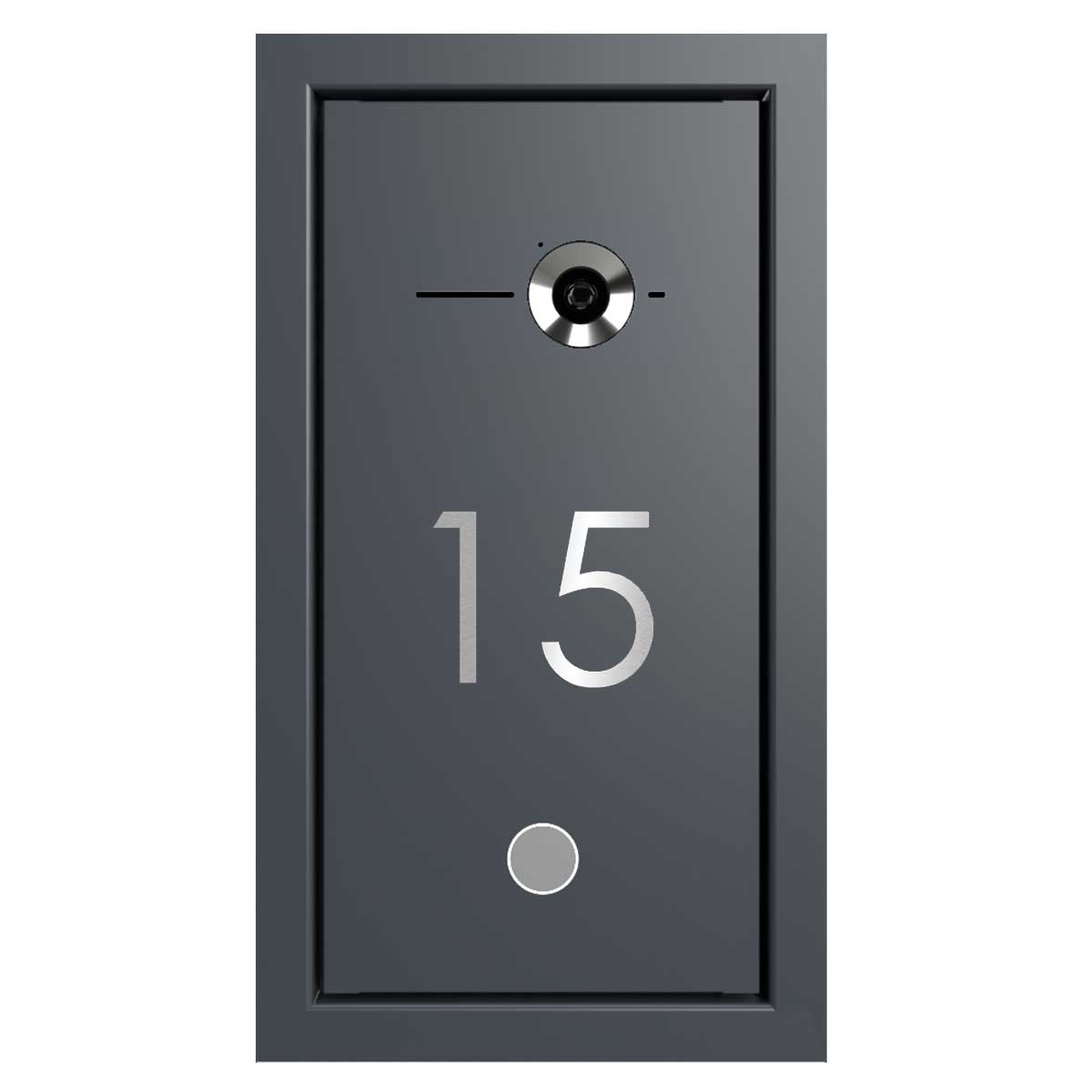

- Optionally with house number labelling approx. 60-80mm high.
- Plaster cover frame made of stainless steel angle profile 25 x 58 mm, powder-coated in RAL colour.
Important information
Camera or intercom preparation
The intercom systems must be connected by an electrician. Please contact your trusted electrician for planning, fitting and installation.
Water protection
To achieve optimum water protection, the door station should be located under a canopy if possible.
| Connection technology: | 2-wire |
|---|---|
| Material: | Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301 |
| Number of bell push buttons: | 1 button |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de

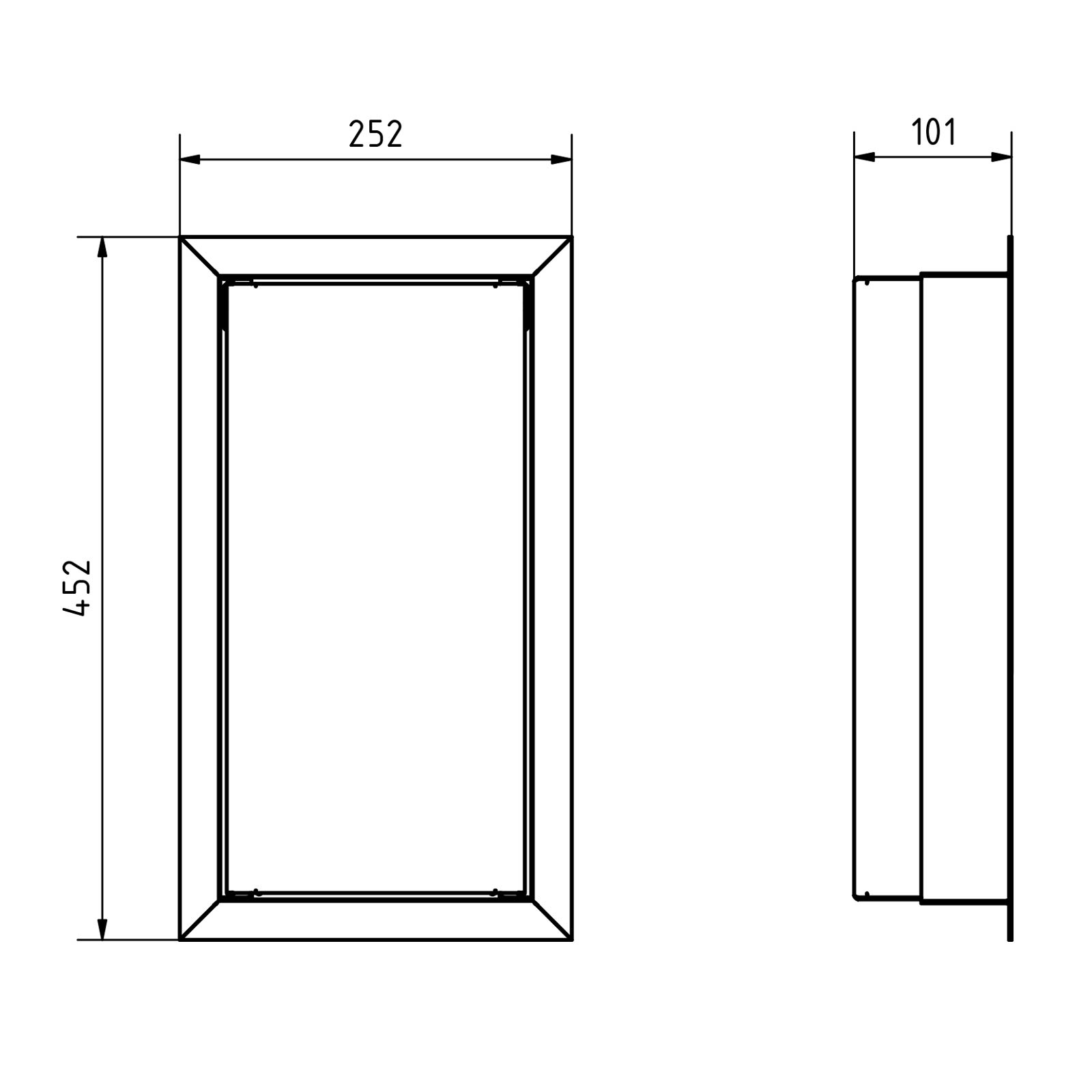

| Width in mm: | Outer dimension 250 | installation dimension 203 |
|---|---|
| Height in mm: | External dimension 450 | installation dimension 403 |
| Overall height in mm: | recommended 1400.0 - 1600.0 |
| Depth in mm: | 100.0 | installation dimension 98.5 |
| Weight in kg: | 5 |
| Delivery condition: | Delivery is assembled |
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately). |
The Comelit complete set in detail
The (video) intercom sets from COMELIT are simply connected using 2-wire technology. This means that the existing cables can be used and there are no additional costs for laying new cables and plastering or painting work. Simply lay 2 wires from the new power supply unit in the meter cupboard to the built-in loudspeaker or to the video loudspeaker in the function box of the letterbox system, and 2 wires from the power supply unit to the door station in the flat or to the gateway in the distribution box. DONE. A WLAN within range is required for the WiFi function of the 6741W home station. The gateway 1406A is connected to the Internet via an Ethernet port.
++ Ideal for remodelling and renovation, as existing bell lines are used
++ No additional work for plastering and painting
++ low costs due to simple installation
++ Simple commissioning
The COMELIT app functions
- Receive calls from the door station wherever you are.
- View the recordings from the cameras in your system (including the door station cameras)
- Retrieve video messages from visitors recorded during your absence.
- Call the internal devices in your system (internal audio and video intercoms).
- Open gates, doors and switch on the lights.
- The APP is based on PUSH notifications; this means considerable energy and data savings, as the APP is only activated when a call is received, and much more.
The highlights Face recognition and voice commands
Easy integration with Amazon Alexa. This feature is available for free via the Mini Wi-Fi and is the incredible innovation that led to the creation of the first voice-controlled video intercom. You can integrate your Amazon Alexa into your Comelit video door entry system in a few simple steps, without the help of a professional.
We already know that you can unlock your phone at a glance. Why shouldn't it also be possible to open the gate to the house? Comelit facial recognition is available free of charge and gives you the ability to manage access in your home (gates, front doors, circulation areas) with a simple glance, without having to use a key, an app or anything else.
EU-compliant: COMELIT as a guarantee for your data
There are several countries that have banned certain manufacturers of video surveillance systems from entering the market. These include the United States, which prohibits government contractors from procuring telecommunications or video surveillance equipment, systems, or services (or a major component thereof) manufactured or supplied by some of the largest manufacturers and their subsidiaries and affiliates through Section 889 of the John S. McCain National Defense Authorisation Act.
By choosing Comelit, you are choosing a private Italian company with no state involvement and no interest or obligation to transmit the data collected through our servers.
And COMELIT has even more to offer!
- the cloud server infrastructure belongs to COMELIT and is located in Europe (in Frankfurt, one of the most important financial centres in Europe and a major hub for the data centre industry) and is managed in partnership with the most important cloud provider in the world: Amazon AWS (Amazon Web Services).
- the components of Comelit products comply with NDAA and GDPR regulations.
Your complete solution for video communication

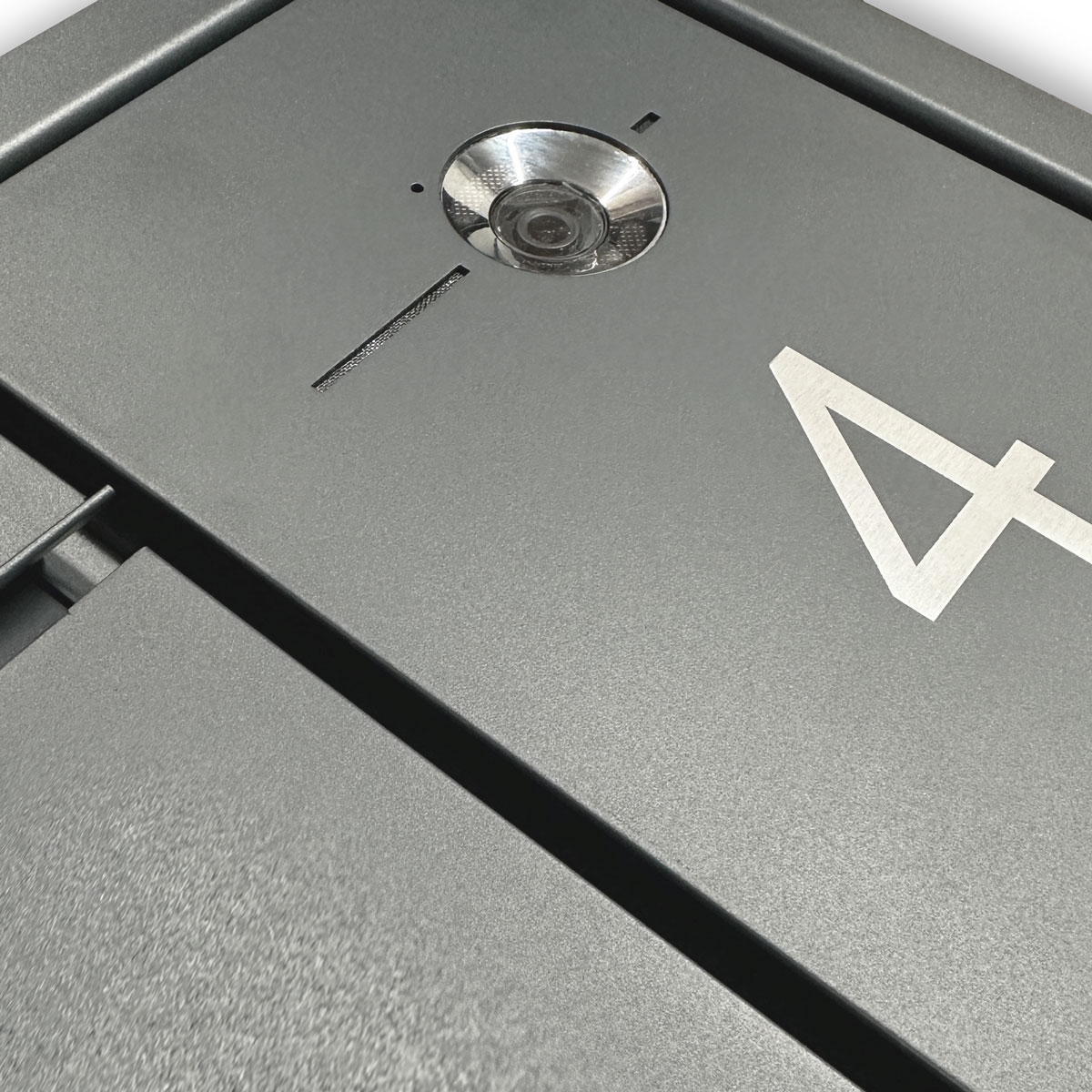

The 4681 video speaker is the ideal choice for 2-wire systems when it comes to a reliable and high-quality colour audio-video unit. It features an integrated, front-adjustable colour camera with LED lighting for optimum visibility even in poor lighting conditions.
Features and functions at a glance:
- High-quality camera: Colour LED-illuminated camera that ensures precise and clear video transmission.
- Optimum sound quality: Speech connection with echo cancellation as well as a dustproof and waterproof speaker and electret microphone for crystal-clear communication.
- Customisable settings: The speaker volume can be adjusted directly on the front panel.
- Handicap indicators included: Visual and acoustic signals, which can be individually programmed, offer additional accessibility.
- Door release function: Integrated electronic door release (3 A) and additional relay contacts (C, NC, NO) with a load capacity of 10 A.
The 4681 video loudspeaker combines functionality and convenience in a compact design that integrates seamlessly into your system. Benefit from the latest technology for your security and communication.
