€0.00*
Delivery time approx. 38 - 42 business days
Can't find anything suitable? Configure your letterbox individually!
- High-quality parcel letterbox made of stainless steel and aluminium, powder-coated in the colour of your choice.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- Letterbox (BH 400x400mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL colour of your choice with stainless steel laser inscription pictogram "BRIEF".
- 2 innovative push-key locks with 10 keys, keyed alike.
- Mail is inserted and removed from the front. Insertion flap with high-quality axle dampers for very quiet mail insertion.
- The letterbox complies with DIN/EN 13724. Insertion size (3.5 cm x 36.0 cm) for C4 across, even large letters fit in here without creasing.
- Removal door opens from top to bottom. So the mail cannot fall towards you.
- Parcel box (BH 600x1200mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL of your choice with stainless steel laser inscription pictogram "PAKET".
- Parcel compartment volume: 192 litres, max. Parcel dimensions: 555 x 375 x 305 mm (WD), corresponding to parcel size L.
- Parcel flap with damping for quiet closing.
- Function box (BH 200x400mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL colour of choice.
- Incl. GIRA home station & control unit enclosed, System 106 door station module, info module & camera module installed.
- Optimum rain protection thanks to rain run-off edges and a rain canopy made of 3 mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Side cladding made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Rear panel made of 1mm stainless steel 1.4301 V2A, powder-coated in RAL of your choice.
- Base made of 40x40x2mm stainless steel tube 1.4301 V2A, powder-coated in RAL of your choice.
- Invisible fastening and cable routing in the pedestal. The overall height is 1.65 m.
- A high-quality camera with high light sensitivity is concealed behind the replaceable black glass pane. Thanks to a detection angle of 100°, the user is always in the picture of what is happening outside his front door.
- For house numbers that need to be clearly visible.
- Compact voice module with integrated call button for communication between inside and outside.
- A high-quality microphone and a weatherproof loudspeaker ensure good communication.
- Power supply via 2-wire bus. Additional connection for ZV (e.g. necessary from 3rd camera module).
- All other System 106 modules (except voice module) are supplied with power via the door station module.
- Video home station with a 17.78 cm (7") TFT colour display and convenient hands-free function for surface mounting or wall mounting with flush-mounted device box or cavity wall box. Also suitable for placement on furniture with the optional stand (see accessories). A 32 GB SD memory card is included for internal image storage. Full-surface glass front with touch functionality and tactile feedback.
- Control device for supplying the audio and video components of the Gira door communication bus.
- Supply of the reverse-polarity protected and short-circuit-proof 2-wire bus when using video components such as colour camera, TFT colour display.
- Up to 2 door stations with colour camera and 28 home stations with TFT colour display can be supplied via the video control device.
- A total of up to 15 colour cameras can be controlled by the video control device (5 video door stations and 10 DCS camera gateways), of which two door stations with colour camera can be supplied with power by the video control device. The other colour cameras must each be operated with their own power supply for door communication.
- Self-resetting electronic short-circuit and overload detection of the operating voltages and the bus connection.
- Buttons for system and door opener programming.
- LED status indicators for operation, overload, system programming and door opener programming.
- AC 12 V output for supplying power to a standard electric strike.
- Relay output for switching an electric strike with its own power supply.
- Door opener switching time continuously adjustable from 1 to 10 s.

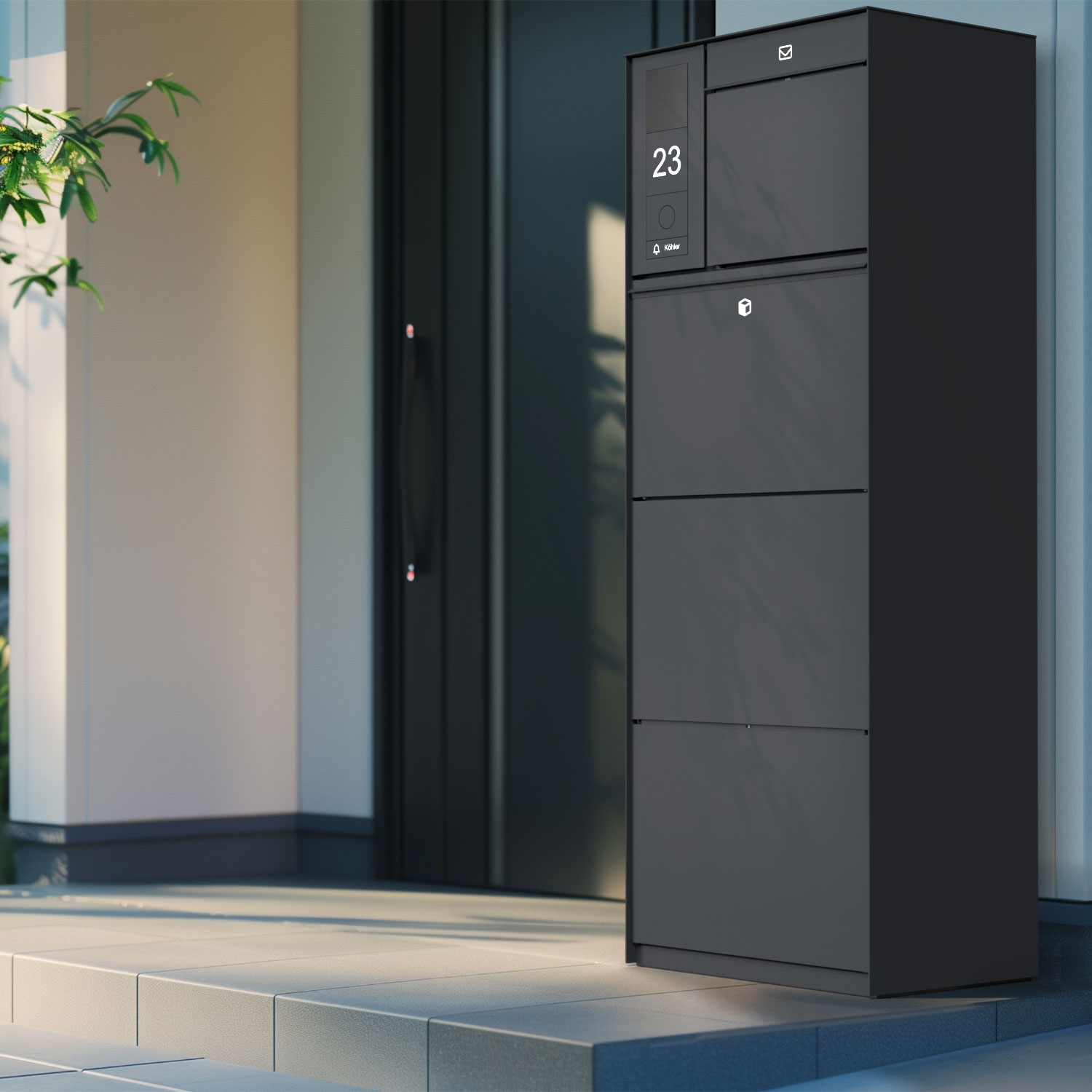

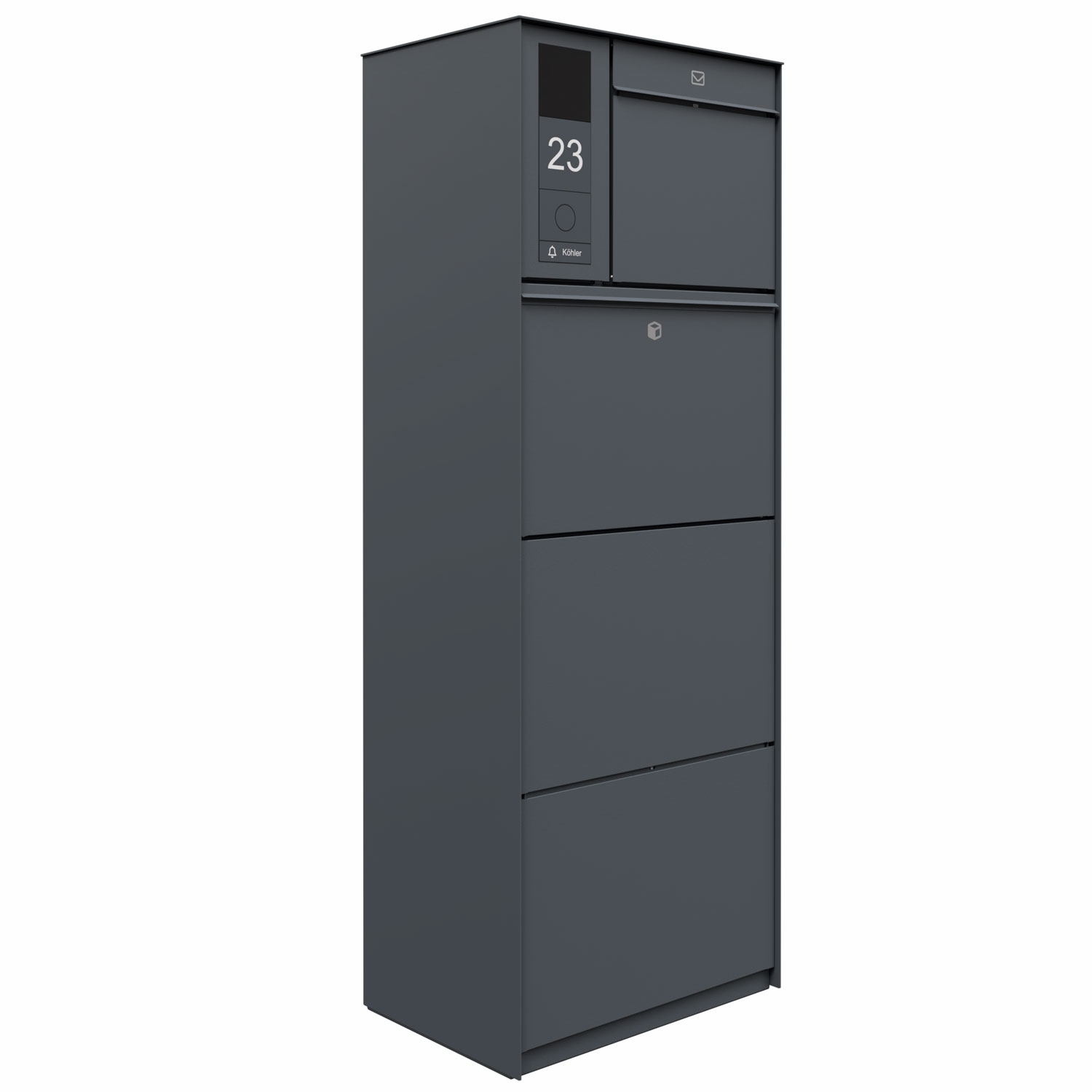

Freestanding XXL parcel box GOETHE with 1 letterbox and GIRA System 106 - video intercom left - lock system - RAL of your choice
Parcel delivery has changed dramatically in recent years - today's customers expect more flexibility and security than ever before. With the GOETHE parcel letterbox from Briefkasten Manufaktur, you can rely on an optimum combination of innovative technology and outstanding design, manufactured from high-quality stainless steel and aluminium, powder-coated in the colour of your choice. The GIRA System 106 is integrated, which is a particularly flexible and future-proof solution for your entrance door thanks to its modular design. Three GIRA system modules are already included in the scope of delivery so that the letterbox is ready for immediate use. The matching GIRA home station and the necessary control unit are also included to complete the system. Thanks to the simple mounting system, the modules can be replaced or extended at any time without great effort.
The letterbox (BH 400x400 mm) is made of stainless steel (non-rusting, magnetic stainless steel), powder-coated in a RAL colour of your choice. It is equipped with an innovative push-key lock that locks in the same way as the parcel box and is supplied with ten keys. Mail is inserted and removed from the front. The insertion flap is fitted with high-quality axle dampers, allowing the mail to be inserted particularly quietly. The letterbox complies with DIN/EN 13724 with an insertion size of 3.5 x 36.0 cm - sufficient for C4 envelopes in landscape format without them being creased. The removal door opens downwards so that the mail cannot fall towards you. The dimensions of the letterbox allow a capacity of approx. 64 litres. The innovative push-key lock is discreetly concealed inside: simply insert the key - without turning it - and the door opens.
The spacious parcel box (BH 600x1200 mm) is also made of stainless steel, powder-coated in a RAL colour of your choice. It has a volume of 192 litres and enables the delivery of parcels up to a size of 555 x 375 x 305 mm (WD), which corresponds to DHL parcel size L. The parcel flap is damped and closes particularly quietly. Thanks to the specially developed delivery gate, your parcel is automatically transported into the secure removal box after insertion. The lock is immediately ready for further deliveries and remains isolated from the removal box - so your parcels are optimally protected at all times. Any delivery company (e.g. DHL, DPD, TNT, GLS, Hermes) can use the parcel letterbox. Depending on the placement, up to four size M DHL parcels can even fit inside.
Briefkasten Manufaktur attaches great importance to high-quality materials. Stainless steel ensures extremely high corrosion resistance and an elegant surface finish. Quality assurance begins with the selection of our raw material suppliers and only ends when the parcel letterbox reaches you in the required quality. Put your trust in the GOETHE parcel letterbox - a secure, flexible and stylish solution for your post and parcel deliveries. A product that combines traditional craftsmanship with state-of-the-art technology - Made in Germany by Briefkasten Manufaktur Lippe.
Camera module Gira System 106 - 5561 000
Info module Gira System 106 - 5560 920
Door station module Gira System 106 - 5565 920
Surface-mounted home station Gira Video 7 1209xx
Video REG control device Gira 128800
Important information
Water protection
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is completely placed in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to enter the letterbox. This system is protected against the ingress of water in accordance with DIN EN 13724. Water ingress is not a reason for complaint.
Freestanding XXL parcel box GOETHE with 1 letterbox and GIRA System 106 - video intercom left - lock system - RAL of your choice
Parcel delivery has changed dramatically in recent years - today's customers expect more flexibility and security than ever before. With the GOETHE parcel letterbox from Briefkasten Manufaktur, you can rely on an optimum combination of innovative technology and outstanding design, manufactured from high-quality stainless steel and aluminium, powder-coated in the colour of your choice. The GIRA System 106 is integrated, which is a particularly flexible and future-proof solution for your entrance door thanks to its modular design. Three GIRA system modules are already included in the scope of delivery so that the letterbox is ready for immediate use. The matching GIRA home station and the necessary control unit are also included to complete the system. Thanks to the simple mounting system, the modules can be replaced or extended at any time without great effort.
The letterbox (BH 400x400 mm) is made of stainless steel (non-rusting, magnetic stainless steel), powder-coated in a RAL colour of your choice. It is equipped with an innovative push-key lock that locks in the same way as the parcel box and is supplied with ten keys. Mail is inserted and removed from the front. The insertion flap is fitted with high-quality axle dampers, allowing the mail to be inserted particularly quietly. The letterbox complies with DIN/EN 13724 with an insertion size of 3.5 x 36.0 cm - sufficient for C4 envelopes in landscape format without them being creased. The removal door opens downwards so that the mail cannot fall towards you. The dimensions of the letterbox allow a capacity of approx. 64 litres. The innovative push-key lock is discreetly concealed inside: simply insert the key - without turning it - and the door opens.
The spacious parcel box (BH 600x1200 mm) is also made of stainless steel, powder-coated in a RAL colour of your choice. It has a volume of 192 litres and enables the delivery of parcels up to a size of 555 x 375 x 305 mm (WD), which corresponds to DHL parcel size L. The parcel flap is damped and closes particularly quietly. Thanks to the specially developed delivery gate, your parcel is automatically transported into the secure removal box after insertion. The lock is immediately ready for further deliveries and remains isolated from the removal box - so your parcels are optimally protected at all times. Any delivery company (e.g. DHL, DPD, TNT, GLS, Hermes) can use the parcel letterbox. Depending on the placement, up to four size M DHL parcels can even fit inside.
Briefkasten Manufaktur attaches great importance to high-quality materials. Stainless steel ensures extremely high corrosion resistance and an elegant surface finish. Quality assurance begins with the selection of our raw material suppliers and only ends when the parcel letterbox reaches you in the required quality. Put your trust in the GOETHE parcel letterbox - a secure, flexible and stylish solution for your post and parcel deliveries. A product that combines traditional craftsmanship with state-of-the-art technology - Made in Germany by Briefkasten Manufaktur Lippe.
- High-quality parcel letterbox made of stainless steel and aluminium, powder-coated in the colour of your choice.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- Letterbox (BH 400x400mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL colour of your choice with stainless steel laser inscription pictogram "BRIEF".
- 2 innovative push-key locks with 10 keys, keyed alike.
- Mail is inserted and removed from the front. Insertion flap with high-quality axle dampers for very quiet mail insertion.
- The letterbox complies with DIN/EN 13724. Insertion size (3.5 cm x 36.0 cm) for C4 across, even large letters fit in here without creasing.
- Removal door opens from top to bottom. So the mail cannot fall towards you.
- Parcel box (BH 600x1200mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL of your choice with stainless steel laser inscription pictogram "PAKET".
- Parcel compartment volume: 192 litres, max. Parcel dimensions: 555 x 375 x 305 mm (WD), corresponding to parcel size L.
- Parcel flap with damping for quiet closing.
- Function box (BH 200x400mm) made of stainless steel 1.4016 (non-rusting magnetic stainless steel), powder-coated in RAL colour of choice.
- Incl. GIRA home station & control unit enclosed, System 106 door station module, info module & camera module installed.
- Optimum rain protection thanks to rain run-off edges and a rain canopy made of 3 mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Side cladding made of 3mm aluminium AlMg3 W19, powder-coated in RAL of your choice.
- Rear panel made of 1mm stainless steel 1.4301 V2A, powder-coated in RAL of your choice.
- Base made of 40x40x2mm stainless steel tube 1.4301 V2A, powder-coated in RAL of your choice.
- Invisible fastening and cable routing in the pedestal. The overall height is 1.65 m.
Camera module Gira System 106 - 5561 000
- A high-quality camera with high light sensitivity is concealed behind the replaceable black glass pane. Thanks to a detection angle of 100°, the user is always in the picture of what is happening outside his front door.
Info module Gira System 106 - 5560 920
- For house numbers that need to be clearly visible.
Door station module Gira System 106 - 5565 920
- Compact voice module with integrated call button for communication between inside and outside.
- A high-quality microphone and a weatherproof loudspeaker ensure good communication.
- Power supply via 2-wire bus. Additional connection for ZV (e.g. necessary from 3rd camera module).
- All other System 106 modules (except voice module) are supplied with power via the door station module.
Surface-mounted home station Gira Video 7 1209xx
- Video home station with a 17.78 cm (7") TFT colour display and convenient hands-free function for surface mounting or wall mounting with flush-mounted device box or cavity wall box. Also suitable for placement on furniture with the optional stand (see accessories). A 32 GB SD memory card is included for internal image storage. Full-surface glass front with touch functionality and tactile feedback.
Video REG control device Gira 128800
- Control device for supplying the audio and video components of the Gira door communication bus.
- Supply of the reverse-polarity protected and short-circuit-proof 2-wire bus when using video components such as colour camera, TFT colour display.
- Up to 2 door stations with colour camera and 28 home stations with TFT colour display can be supplied via the video control device.
- A total of up to 15 colour cameras can be controlled by the video control device (5 video door stations and 10 DCS camera gateways), of which two door stations with colour camera can be supplied with power by the video control device. The other colour cameras must each be operated with their own power supply for door communication.
- Self-resetting electronic short-circuit and overload detection of the operating voltages and the bus connection.
- Buttons for system and door opener programming.
- LED status indicators for operation, overload, system programming and door opener programming.
- AC 12 V output for supplying power to a standard electric strike.
- Relay output for switching an electric strike with its own power supply.
- Door opener switching time continuously adjustable from 1 to 10 s.
Important information
Water protection
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is completely placed in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to enter the letterbox. This system is protected against the ingress of water in accordance with DIN EN 13724. Water ingress is not a reason for complaint.
| Connection technology: | 2-wire |
|---|---|
| Material: | Aluminium AlMg3 W19, Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301 |
| Number of bell push buttons: | 1 button |
| Number of boxes: | with 1 letterbox |
| Removal of mail: | On the front |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Height of single box in mm: | BK 400.0 | PK 1200.0 |
|---|---|
| Width of single box in mm: | BK 400.0 | PK 600.0 |
| Capacity in litres: | BK 64.0 | PK 192.0 |
| Height of letterbox slot in mm: | 35,0 |
| Width of letter slot in mm: | 360,0 |
| Overall height in mm: | 1650,0 |
| Total width in mm: | 608,0 |
| Depth in mm: | 400.0 + 25.0 Rain roof |
| Weight in kg: | 69 |
| Delivery condition: | Delivery is assembled |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |
„Das Edle einfach, das Einfache edel.“ – Johann Wolfgang von Goethe
How does the push-key lock work?
With our latest development, the Push-Key lock, we are revolutionising the world of letterbox security. This pioneering lock is supplied with two keys.
What makes this lock so special is its ground-breaking, purely mechanical technology. The key simply needs to be inserted without the need for any turning action - a straightforward operation for the owner.
Closing the lock is just as easy: the flap is simply pushed shut. No more tedious handling or turning - our push-key lock offers maximum security with minimum effort. Experience a new era of user-friendliness and innovation in lock mechanisms.
Is the GOETHE letterbox sustainable?
The revolutionary GOETHE system from Briefkasten Manufaktur redefines sustainability in product design. Every element of this system is interchangeable, creating a durable solution that will last a lifetime. This approach creates unique possibilities and raises the product far above the market standard.
With the GOETHE system, we are setting a milestone in sustainable product development. Our commitment to environmental protection and longevity is reflected in this innovative concept. By minimising the need to throw away, we reduce the waste of resources and contribute to a sustainable future.
Is the GOETHE® collection available in the configurator?
The GOETHE® letterbox is available in all installation variants offered by Briefkasten Manufaktur. The GOETHE® letterbox is available as a wall-mounted letterbox and as a free-standing letterbox. The wall-mounted, flush-mounted and surface-mounted versions are available. In the free-standing version, the mounting variants pedestal or free-standing elements are possible. All variants can be created in the letterbox configurator.
