Can't find anything suitable? Configure your letterbox individually!
Design letterbox pedestal GRIMM with DoorBird video intercom - A masterpiece of letterbox manufacturing
The GRIMM letterbox column combines modern design with first-class workmanship - ideal for discerning clients and architects who are looking for an elegant solution for integrating DoorBird. Manufactured from high-quality stainless steel and completely "Made in Germany" by the letterbox manufacturer Lippe, this model stands for durability, functionality and a stylish look. The powder-coated front panel made of 2 mm stainless steel V2A (##########) impresses with its timeless appearance and high corrosion resistance.
At the centre of this system is the DoorBird IP Video Door Station D2100E or D1100E, which can be optimally integrated into modern smart home solutions. It offers live video transmission, intercom function and mobile control via the DoorBird app. Whether at home or on the move - you can see and speak to visitors at your front door at any time using your smartphone. Classic components such as doorbells, electric door openers or gate operators can be easily integrated and controlled via the system.
The GRIMM letterbox is not only a visual highlight, it is also at the forefront in terms of functionality and quality. Thanks to the innovative push-key lock, the letterbox can be operated easily and conveniently with one hand. Open the door with one push and close the door without using a key. The lock is optimally protected from the weather. The letterbox also features an intelligent removal system: the door opens from top to bottom, ensuring that the mail remains securely in the box and cannot fall towards you. Mail is also conveniently inserted from the front, with high-quality axle dampers ensuring that the flap closes gently. The GRIMM is particularly unique thanks to its double box system: the pillar can be installed during the shell construction phase, while the front panel is only fitted once the construction work has been completed - for maximum flexibility in the future and protection from dirt and dust during the construction phase.
Thanks to the DIN/EN 13724 standard, the GRIMM is ideal for large letters in C4 format, which can be inserted without creasing. The GRIMM letterbox impresses with its durable quality, timeless design and sophisticated functionality.
A special feature of the GRIMM designer letterbox pedestal is the fully welded pedestal made of solid V2A stainless steel, powder-coated in the colour of your choice. This design guarantees maximum stability and an exceptionally long service life - even with long-term outdoor use. The fully welded construction creates a seamless, robust body with no visible screw or plug connections, which not only emphasises the elegant appearance, but also prevents the ingress of moisture and dirt. The precisely sanded seams ensure a homogeneous appearance and give the stele a particularly high-quality look. The design also enables invisible cable routing within the pillar so that all electrical connections for the DoorBird video intercom system and other smart home components can be installed safely and securely. This unique production method sets new standards in terms of design and functionality and makes the GRIMM letterbox pedestal a future-proof solution for modern architectural projects.

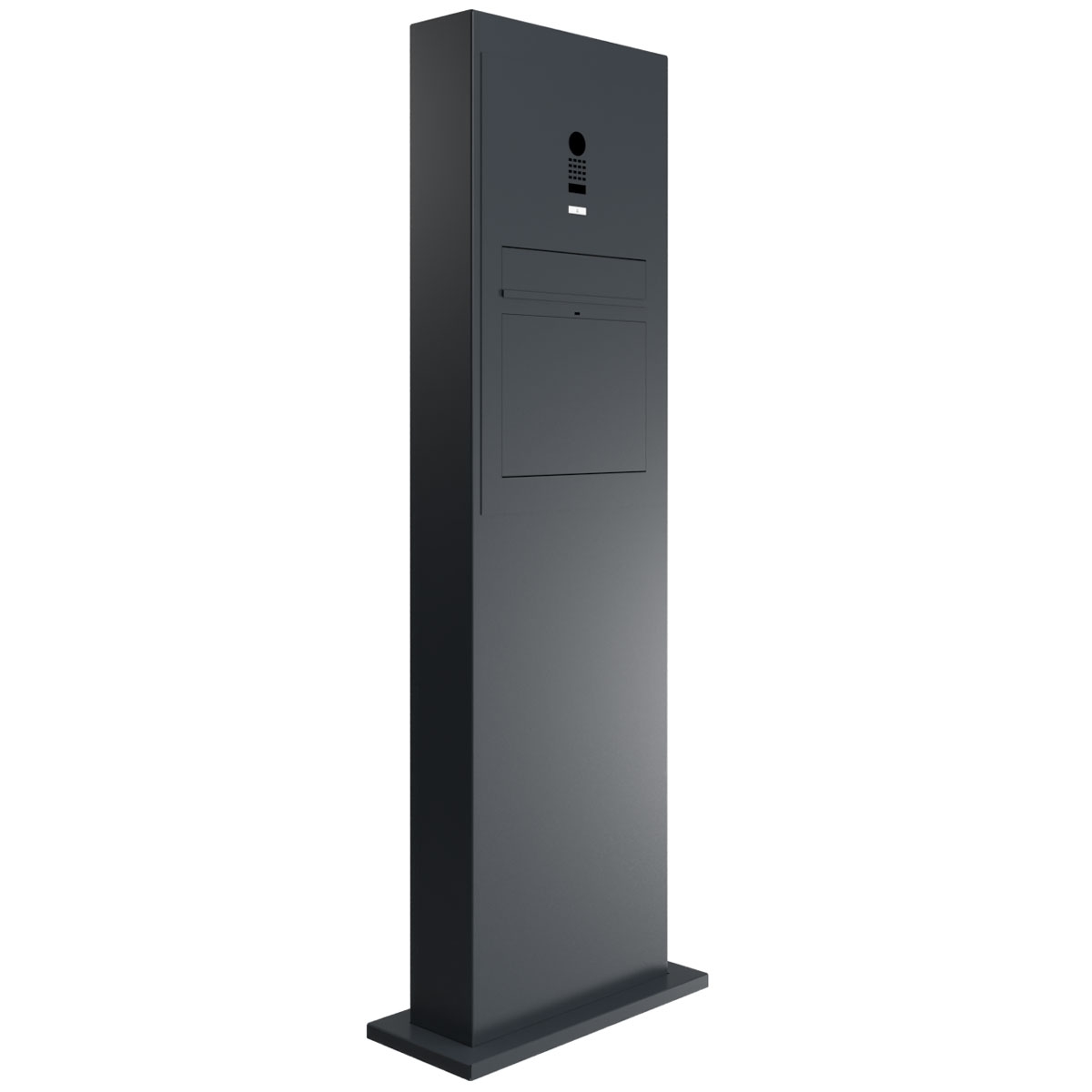

- High-quality letterbox pillar made entirely of stainless steel for free-standing installation.

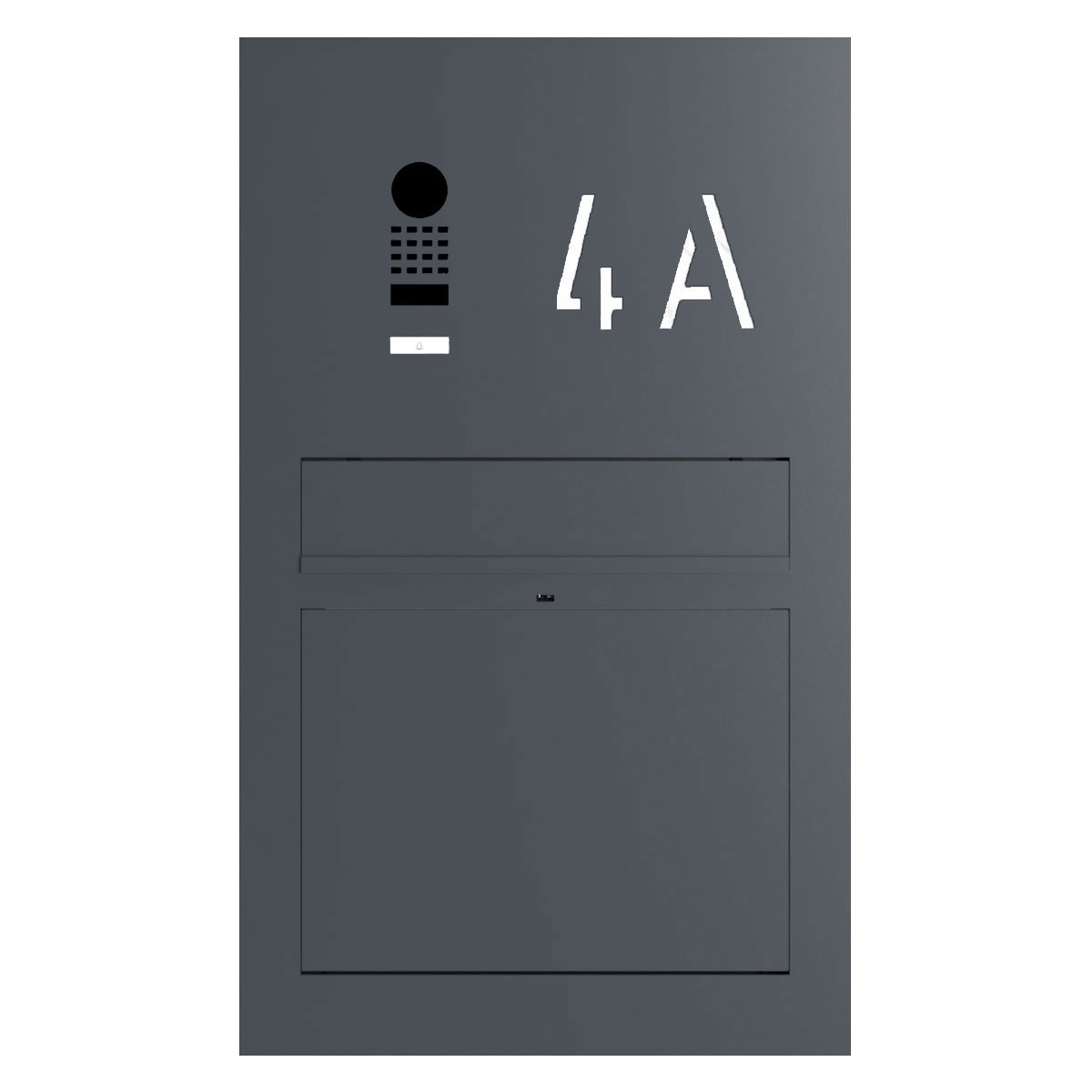

- Front panel made of 2 mm stainless steel V2A 1.4301, powder-coated in the colour of your choice.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- Integrated DoorBird IP video door station - modern door communication with your mobile phone. Compatible with many smart home systems & existing building technology.
- Innovative push-key lock including 2 keys with key number, convenient locking without a key, optimally protected from the weather.
- The removal door with opening limiter opens from top to bottom to prevent mail from falling towards you.
- Front mail slot with high-quality axle dampers for very quiet mail insertion.
- DIN/EN 13724-compliant letterbox, insertion size (3.5 cm x 32.5 cm) for C4 landscape - even large letters remain intact. Additional stainless steel removal protection integrated.
- Optimum weather protection thanks to offset cover.
- Double box system: The front panel can be easily installed after completion of the construction work and replaced at any time.
- The fully welded pedestal is made of 2 mm stainless steel V2A 1.4301, powder-coated in the colour of your choice. Construction height is 1.70 m.
- Invisible cable feed through the body is possible.
- The pedestal is fitted with a VA base plate. This is 10 mm thick and is finished with a cover plate. This conceals the fixing plugs.
Important information:
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is fully inserted in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to enter the letterbox. This system is protected against the ingress of water in accordance with DIN EN 13724. Water ingress is not a reason for complaint.
Connection technology: | 2-wire, LAN |
---|---|
Material: | Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301 |
Number of bell push buttons: | 1 button |
Number of letterboxes: | with 1 letterbox |
Removal of mail: | On the front |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de

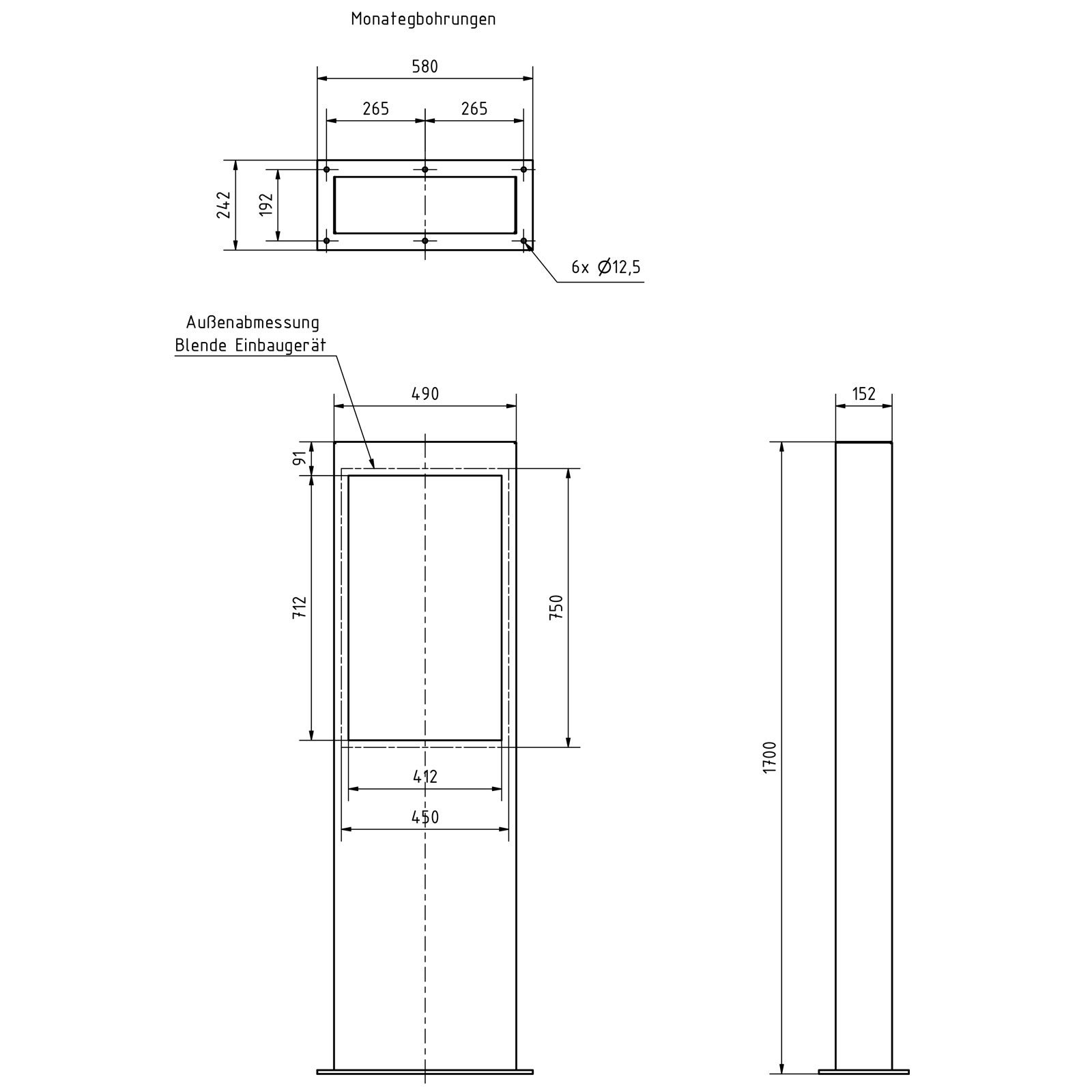

Height of single box in mm: | External dimension 750.0 | installation dimension 710.0 |
---|---|
Width of single box in mm: | External dimension 450.0 | installation dimension 410.0 |
Capacity in litres: | 26,0 |
Height of letterbox slot in mm: | 35,0 |
Width of letter slot in mm: | 325,0 |
Height of letterbox in mm: | External dimension 750.0 | installation dimension 710.0 |
Width of letterbox system in mm: | External dimension 450.0 | installation dimension 410.0 |
Overall height in mm: | 1700,0 |
Total width in mm: | Body 490.0 | Base plate 580.0 |
Depth in mm: | Korpuss 150.0 | Base plate 242.0 |
Weight in kg: | 65 |
Delivery condition: | Delivery is assembled |
Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (z.B. For free-standing letterboxes, the stand and box can be dispatched separately). |

„In jedem starken Stück Eisen steckt ein Hauch von Zauber.“ – inspiriert von den Brüdern Grimm
How does the push-key lock work?
With our latest development, the Push-Key lock, we are revolutionising the world of letterbox security. This pioneering lock is supplied with two keys.
What makes this lock so special is its ground-breaking, purely mechanical technology. The key simply needs to be inserted without the need for any turning action - a straightforward operation for the owner.
Closing the lock is just as easy: the flap is simply pushed shut. No more tedious handling or turning - our push-key lock offers maximum security with minimum effort. Experience a new era of user-friendliness and innovation in lock mechanisms.

DoorBird in detail

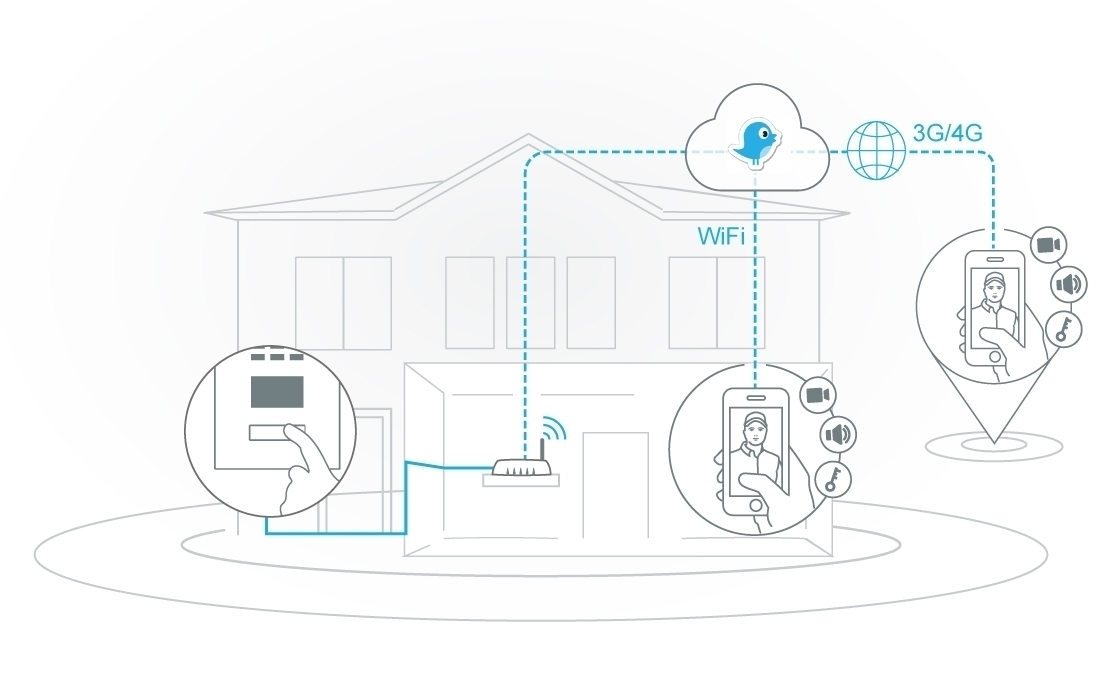

Imagine you are not at home at the moment and your children have locked themselves out or the parcel carrier has brought a delivery. With DoorBird, this is no longer a problem. Every time the doorbell rings, you receive a push notification on your smartphone or tablet and can speak to the visitor and see them in HD quality. You are guaranteed never to miss a visitor again. With DoorBird, you are on the move but still at home, even if a burglar rings the doorbell to check your presence.


Open API
Local interface for integration into third-party providers and SIP systems
Video and audio calls
On smartphones and tablets (iOS, Android) or landline phones (SIP)
Smart Transmission Mode (STM)
Audio / video transmission in real time, optimised for mobile devices via WLAN, 3G, 4G, 5G
Smart Home & ONVIF compatible
KNX, Loxone, Synology, KIWI AVM FRITZ!Fon, URC, Bang & Olufsen, Control4, QNAP, RTI, ELAN, Fibaro and many more.
Receive parcels at any time
For example, direct the parcel carrier to the neighbour or open the garage door via smartphone
and many other advantages
Customised time and action plans, automatic door opener, free cloud recording, geofencing, burglary prevention, night vision, light sensor, motion sensor with 4D technology, HDTV video, echo and noise suppression (AEC, ANR), illuminated call button, easy connection to the network
DoorBird in comparison
Downloads
The mailbox manufactory - tradition since 2003
At Briefkasten Manufaktur, you can order your letterbox, free-standing letterbox or letterbox system with countless customisations directly in the shop! Briefkasten Manufaktur only uses systems, components and individual parts from well-known manufacturers in Germany. But our customer service doesn't end with your order: After your order, you may receive a design drawing by email as a PDF to realise your wishes down to the last detail. Your wishes will be considered in detail and, as a rule, even special requests that go beyond our configuration offer can be realised. After your production approval, your letterbox is customised and conveniently delivered by parcel post. Our customer service does not end here either, we ensure that the stainless steel letterboxes, letterbox systems, doorbells and lights are delivered to you in perfect condition with customised packaging.
And if you don't like a product you have purchased or something is not to your liking, as a consumer you run no risk with us. You can return our products within two weeks.

Letterboxes in over 80 colours
At Briefkasten Manufaktur, you can choose from over 80 colours or your desired RAL colour code. In addition to a wide range of colours, we also offer premium finishes for an even more attractive look.
Design letterboxes. Variability through customisation.
Every product at Briefkasten Manufaktur is customised and is only made by hand for you after you place your order. Many of our products can therefore be ordered directly in the shop with countless customisations. This is possible thanks to the modular structure, flexible prefabrication, warehousing and logistics. Individual components are already prefabricated so that very short delivery times can be achieved in some cases.


Simple installation thanks to well thought-out designs
Our letterbox systems are supplied with detailed and easy-to-understand documentation and assembly aids and are usually fully assembled within a very short time.
