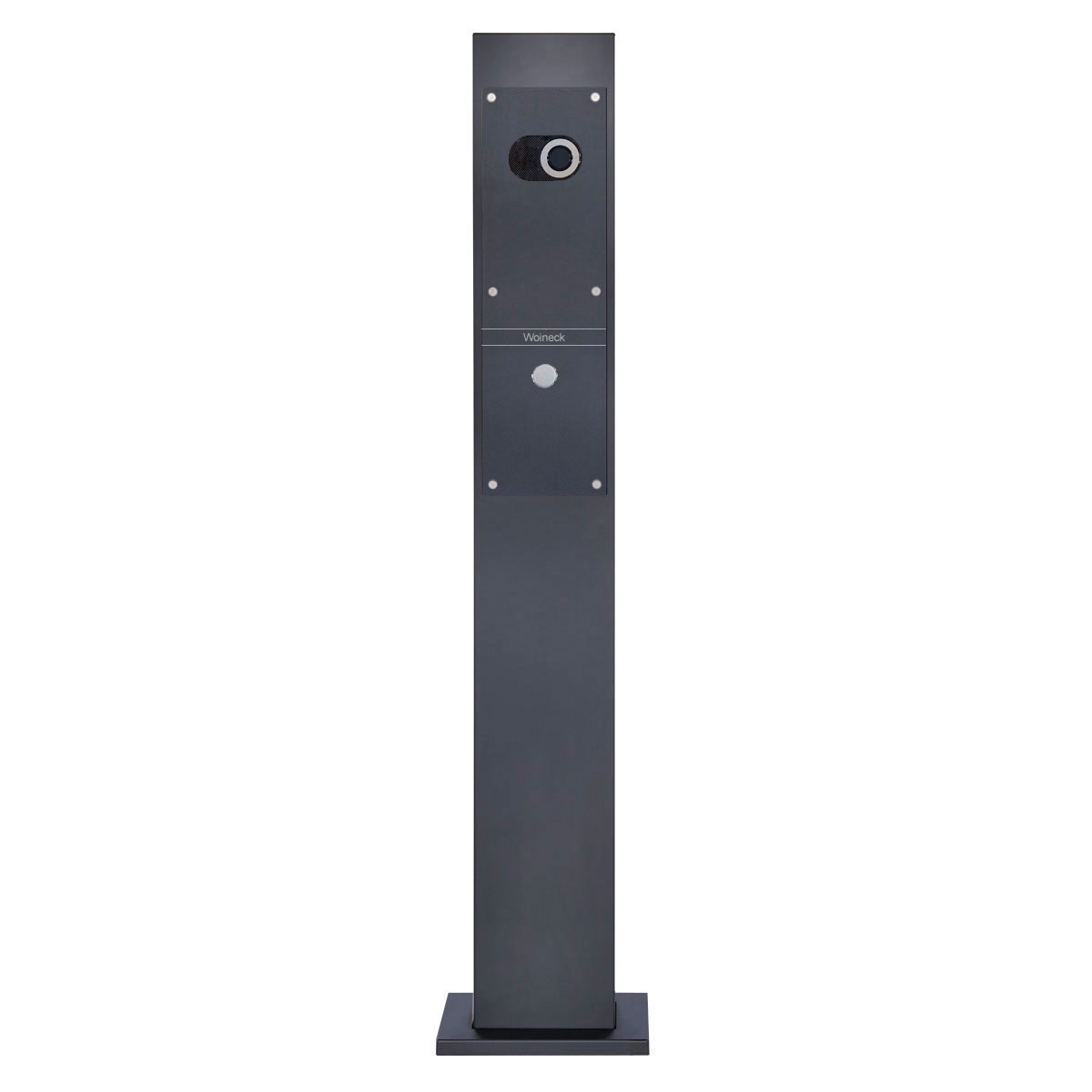

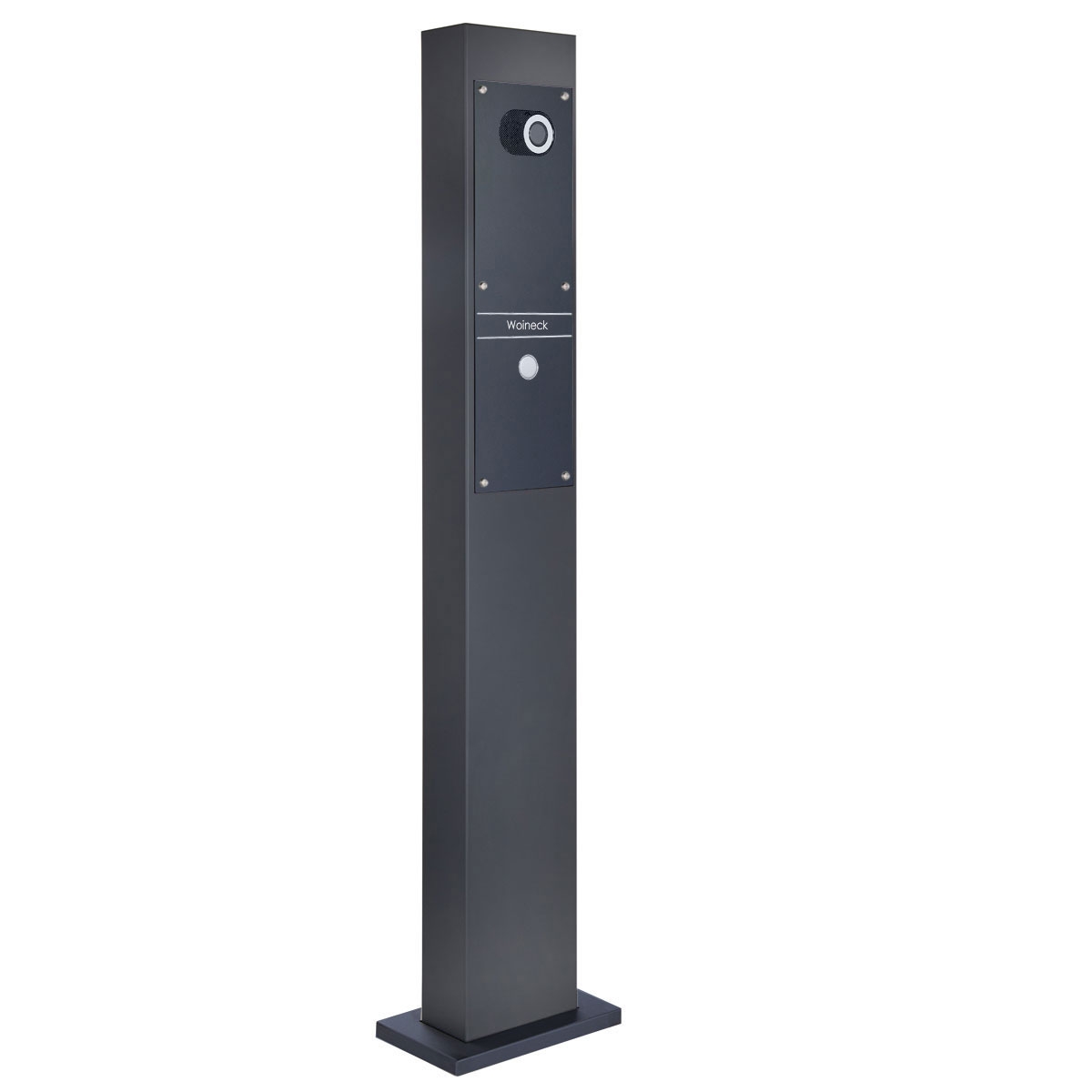

Bell pillar Designer - stainless steel V2A - RAL of your choice - Comelit VIDEO complete set
High-quality doorbell pillar made entirely of V2A stainless steel, powder-coated by Briefkasten Manufaktur. The Comelit video intercom system is an innovative solution with functions such as face recognition, voice commands and operation via smartphone app. Completely pre-programmed for easy installation - connect 2 wires and DONE! Optionally with gateway without home station or with WiFi home station.
Our products have a high quality, reliable functionality and their own identity. Made by Briefkasten Manufaktur.
- Doorbell pillar made of 1.5 mm stainless steel V2A 1.4301, powder-coated.
- Quality production - Made in Germany by Briefkasten Manufaktur Lippe.
- EU compliant: COMELIT as a guarantee for your data - the cloud server infrastructure belongs to COMELIT and is located in Europe (in Frankfurt, one of the most important financial centres in Europe and a major location for the data centre industry) and is managed in partnership with the world's most important cloud provider: Amazon AWS (Amazon Web Services).

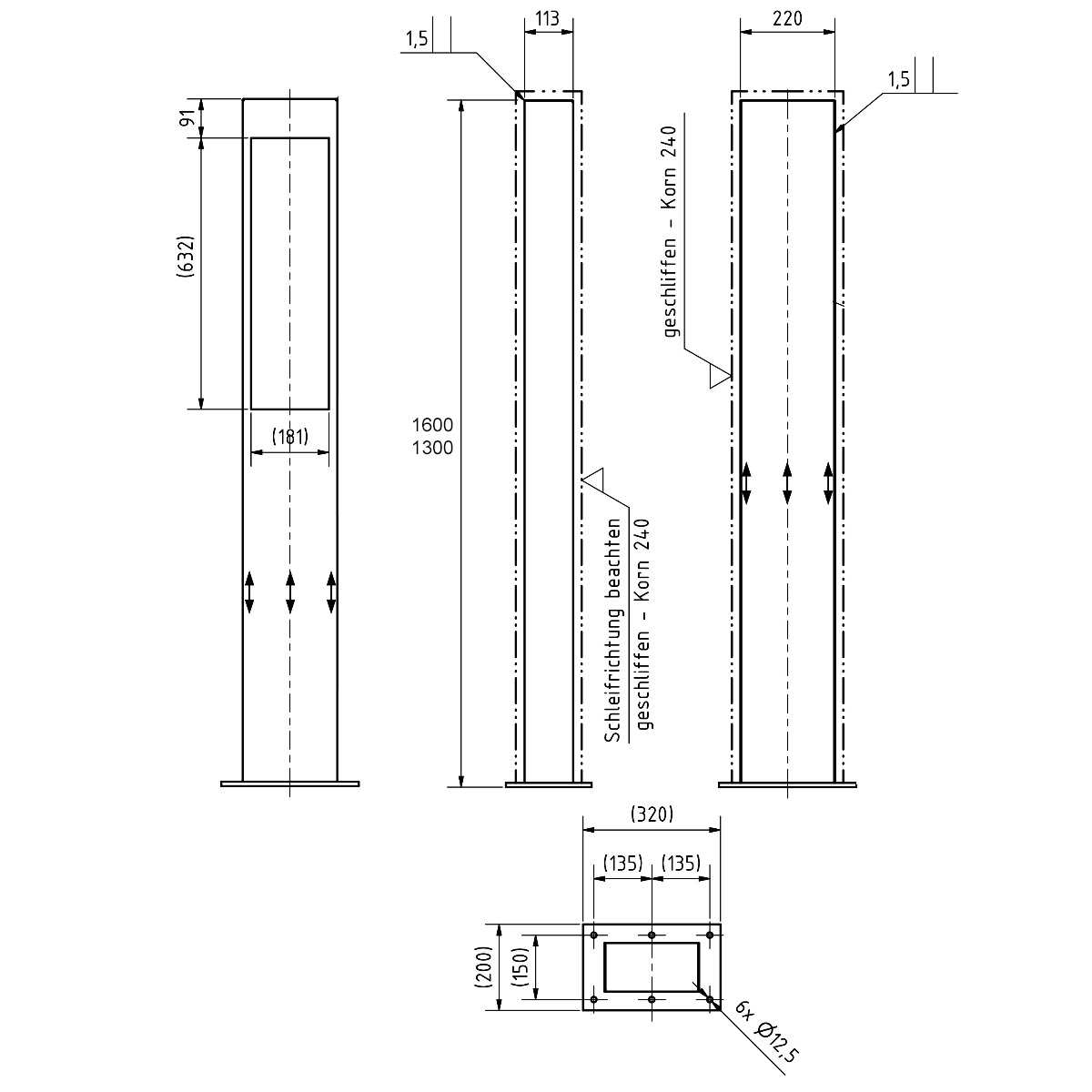

- The speech part is made of 2mm stainless steel V2A 1.4301, powder-coated. Dimensions: W 190 mm x H 640 mm x D 110 mm.
- 8-12V DC short-stroke bell push-button with LED ring illumination in white.

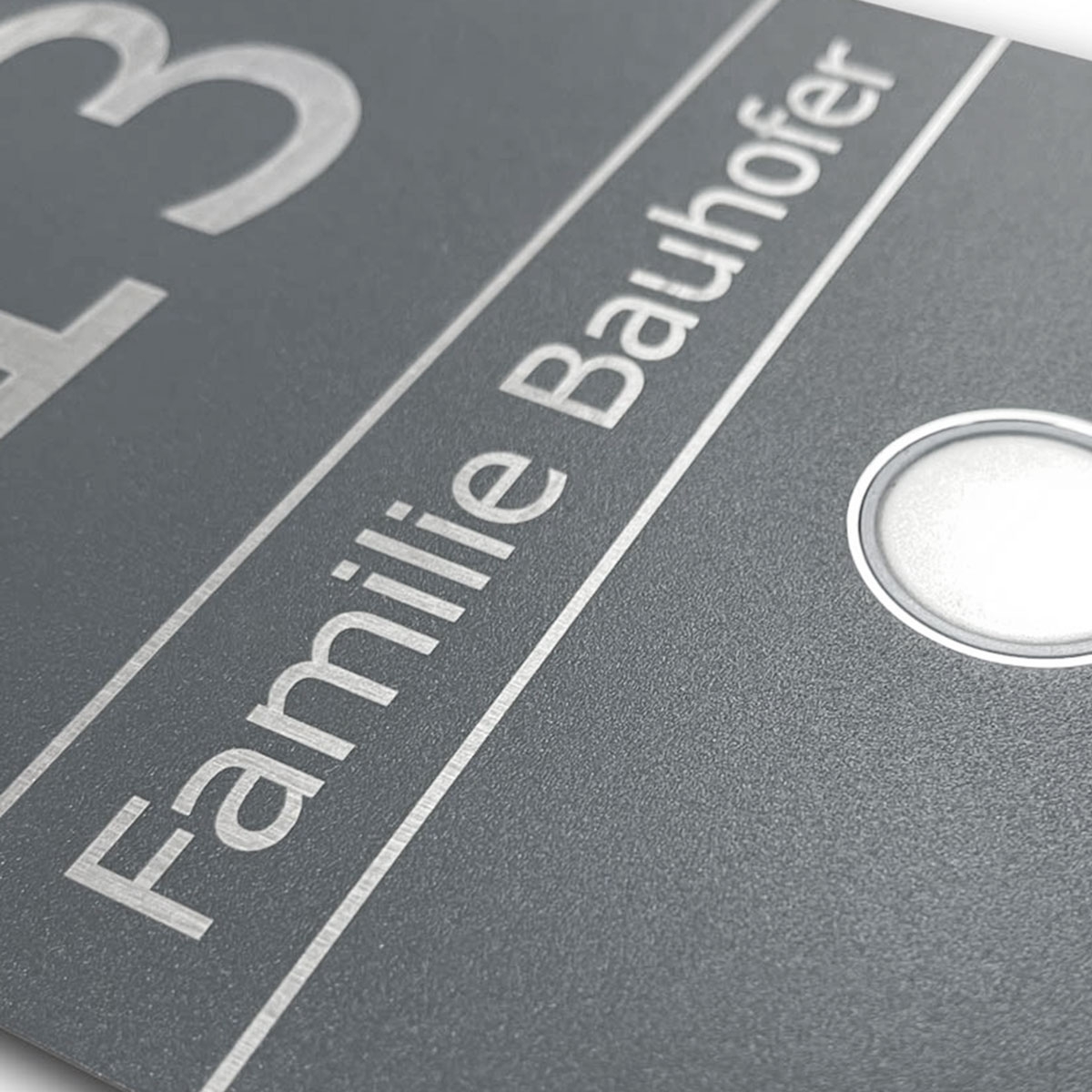

- Optionally with name lettering approx. 10-20 mm high.

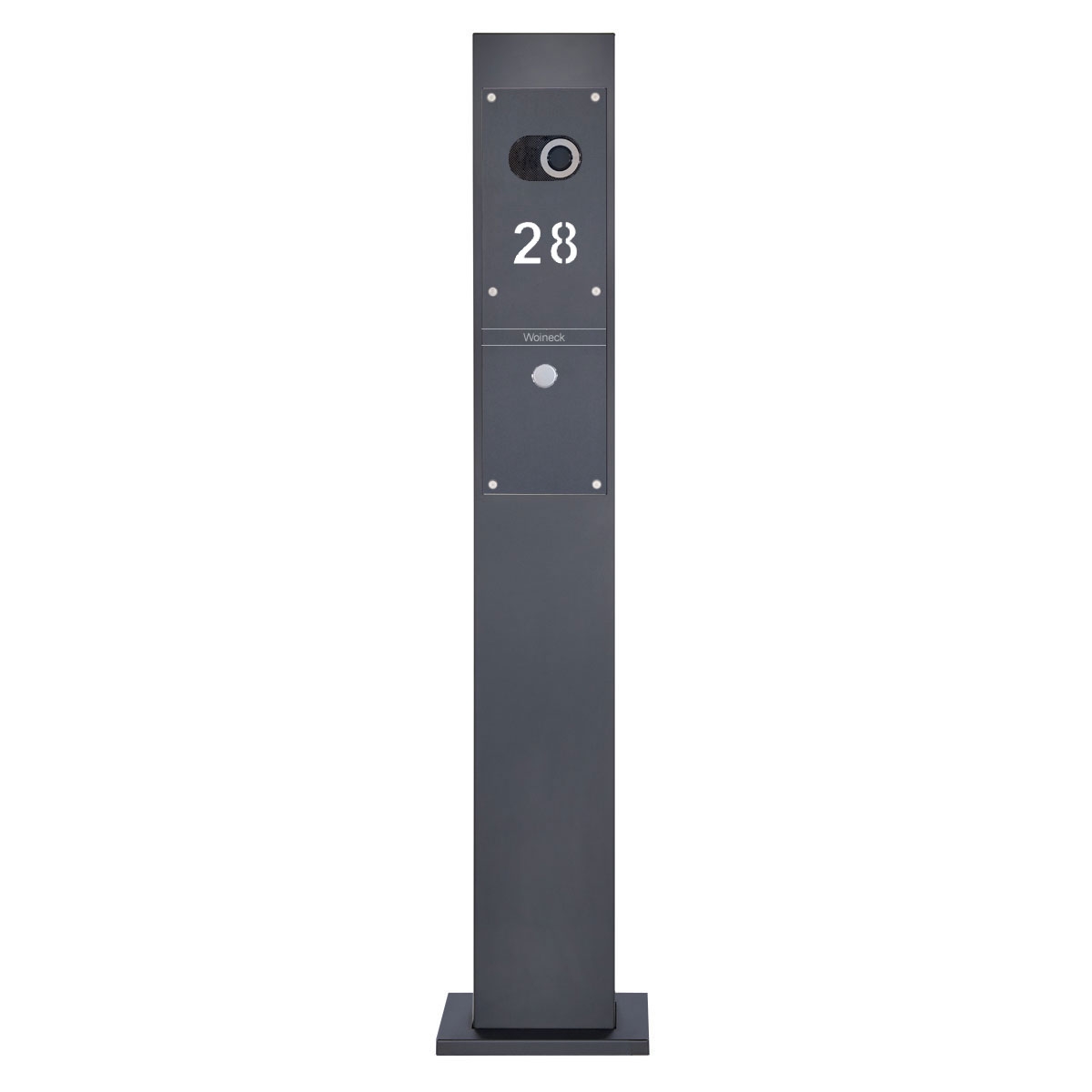

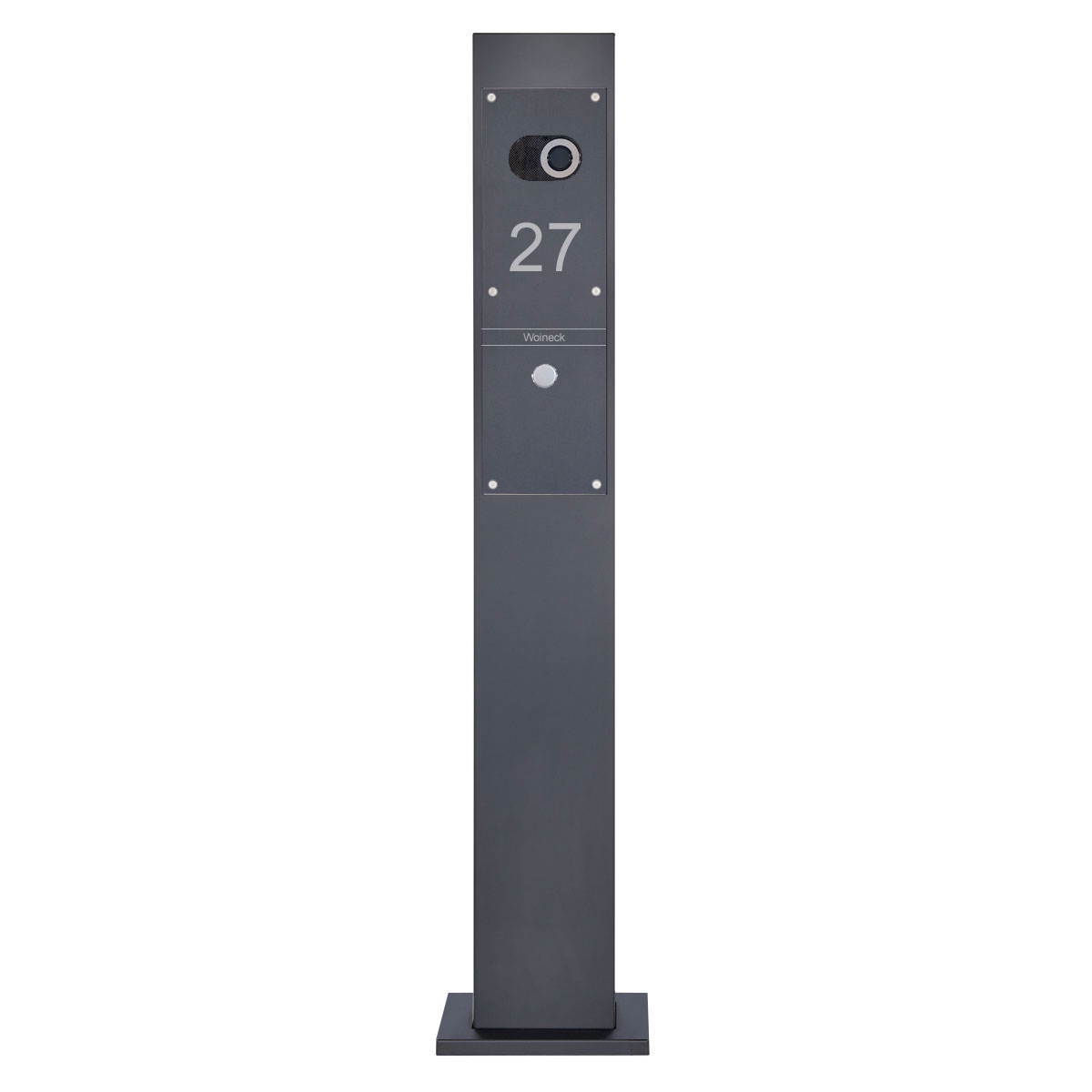

- Optionally with house number approx. 70mm high (max. 3 digits) optionally with energy-saving LED lighting 12V DC approx. 50mA / 1W, white or as laser engraving.

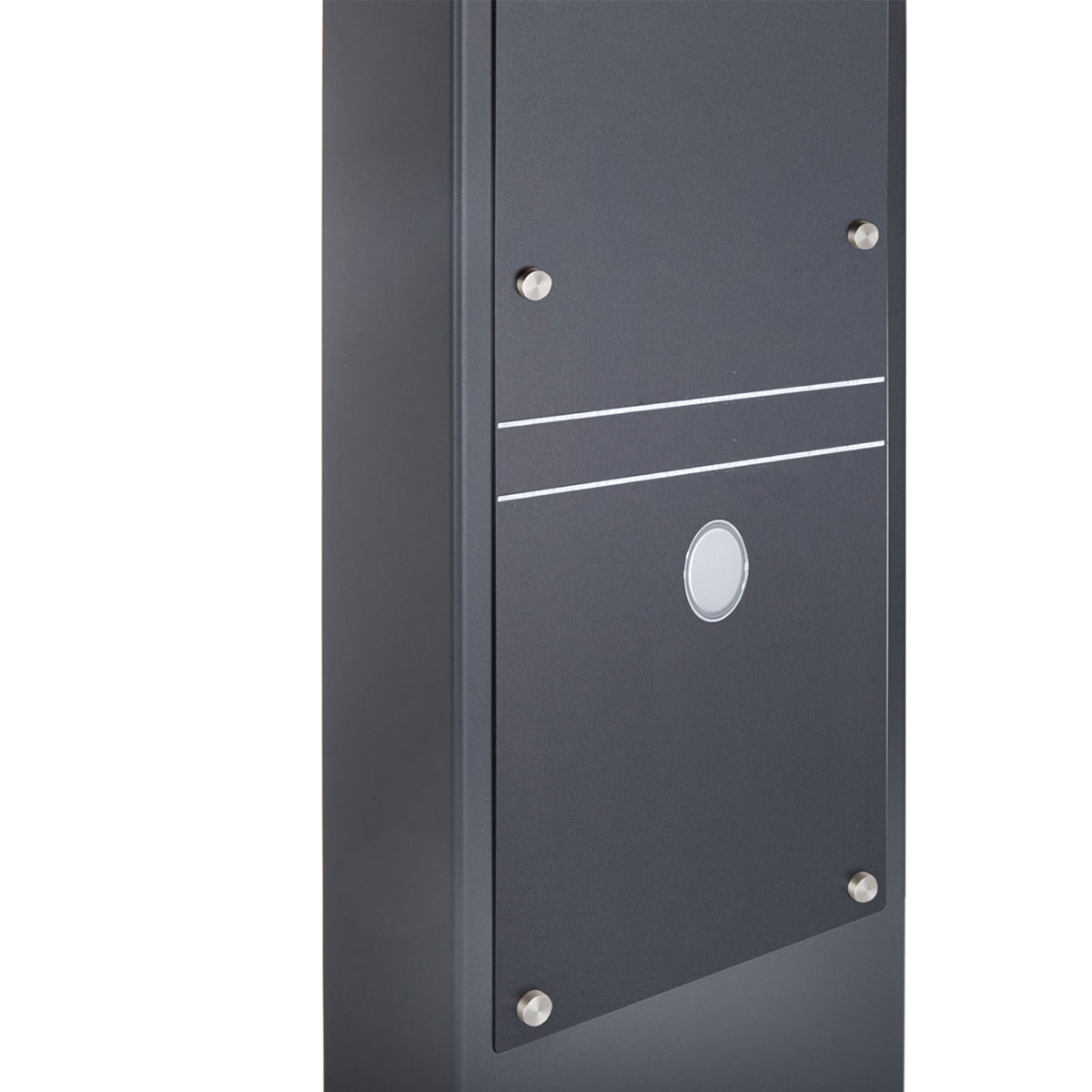

- Incl. 6x screw cover caps made of stainless steel V2A, polished so that the screws for fixing the front plate are not visible. See pictures.
- The fully welded pedestal is made of 1.5 mm V2A stainless steel, powder-coated. Construction height is either 1.30 m or 1.60 m.
- The pedestal is fitted with a VA base plate. This is 10 mm thick and is finished with a cover plate. See pictures.
- Invisible cable feed through the body is possible.
Important information
Camera or intercom preparation
The intercom systems must be connected by an electrician. Please contact your trusted electrician for planning, fitting and installation.
Water protection
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is fully inserted in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to penetrate the letterbox. It is therefore necessary to plan sufficiently dimensioned letterboxes for the upcoming requirements. Under certain extreme weather conditions, water can still enter (up to 1ccm according to DIN EN 13724). This is not a reason for complaint.
| Connection technology: | 2-wire |
|---|---|
| Material: | Stainless steel V2A 1.4301 |
| Number of bell push buttons: | 1 button |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Height of single box in mm: | 640,0 |
|---|---|
| Width of single box in mm: | 190,0 |
| Overall height in mm: | 1300,0 | 1600,0 |
| Total width in mm: | 220.0 (foot plate 320.0) |
| Depth in mm: | 110.0 (foot plate 210.0) |
| Weight in kg: | 40 |
| Delivery condition: | Delivery is assembled |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |
The Comelit complete kit in detail
The (video) intercom system kits from COMELIT are simply connected using 2‑wire technology. This allows existing cabling to be used and avoids additional costs for new wiring and for plastering or decorating work. From the new power supply unit in the meter cupboard simply run 2 wires to the flush‑mounted speaker or to the video speaker in the functional enclosure of the mailbox unit, and 2 wires from the power supply unit to the apartment station in the flat or to the gateway in the distribution cabinet. Done. For the Wi‑Fi function of the apartment station LS8741, a Wi‑Fi network within range is required. The 1406A gateway is connected to the internet via an Ethernet port.
++ ideal for conversions and refurbishments, as existing doorbell cabling can be used
++ no additional work for plastering and decorating
++ low cost due to simple installation
++ easy commissioning
The COMELIT app functions
- Receive calls from the door station wherever you are.
- View recordings from the cameras of your system (including the door station cameras).
- Retrieve video messages left by visitors while you were away.
- Call the internal devices of your system (audio and video indoor stations).
- Open gates and doors and switch on the lighting.
- The app is based on push notifications; this means considerable energy and data savings, as the app is only activated when a call is received, and much more.
The highlights: face recognition and voice commands
Easy integration with Amazon Alexa. This function is available free of charge via the Mini Wi‑Fi and is the incredible innovation that led to the creation of the first voice‑controlled video intercom. You can integrate your Amazon Alexa into your Comelit video door‑entry system in a few simple steps, without the help of a professional.
We already know that a glance can unlock the phone. Why shouldn't it also be possible to open the gate to the house? Comelit face recognition is available free of charge and gives you the ability to manage access to your home (gates, front doors, common areas) with a single glance, without needing a key, an app or anything else.
EU-compliant: COMELIT as a guarantee for your data
There are several countries that have banned certain manufacturers of video surveillance systems from entering their markets. These include the United States, which, with Section 889 of the John S. McCain National Defense Authorization Act, prohibits government contractors from procuring telecommunications or video surveillance equipment, systems or services (or a substantial component thereof) for the US government that are manufactured or supplied by some of the largest manufacturers and their branches and subsidiaries.
If you choose Comelit, you are opting for a private Italian company with no government ownership, which has neither an interest nor an obligation to transfer the data collected via our servers.
And COMELIT has even more to offer!
- the cloud server infrastructure is owned by COMELIT and is located in Europe (in Frankfurt, one of Europe’s main financial centres and a significant location for the data-centre industry) and is managed in partnership with the world’s leading cloud provider: Amazon AWS (Amazon Web Services).
- the components of Comelit products comply with the provisions of the NDAA and GDPR.
Your complete solution for video communication
The video speaker 4681 is the ideal choice for 2‑wire systems when it comes to a reliable and high-quality colour audio-video unit. It impresses with an integrated, front-adjustable colour camera, which, with LED illumination, ensures optimal visibility even in poor lighting conditions.
Equipment and features at a glance:
- High-quality camera: Colour LED-illuminated camera that ensures precise and clear video transmission.
- Optimal sound quality: Voice connection with echo suppression and a dust- and water-proof speaker and electret microphone for crystal-clear communication.
- Individual adjustment options: The speaker volume can be adjusted directly on the front.
- Including accessibility indicators: Optical and audible signals, which are individually programmable, offer additional accessibility.
- Door opener function: Integrated electronic door release (3 A) as well as additional relay contacts (C, NC, NO) with a rating of 10 A.
The video speaker 4681 combines functionality and comfort in a compact design that integrates seamlessly into your system. Benefit from state-of-the-art technology for your security and communication.
