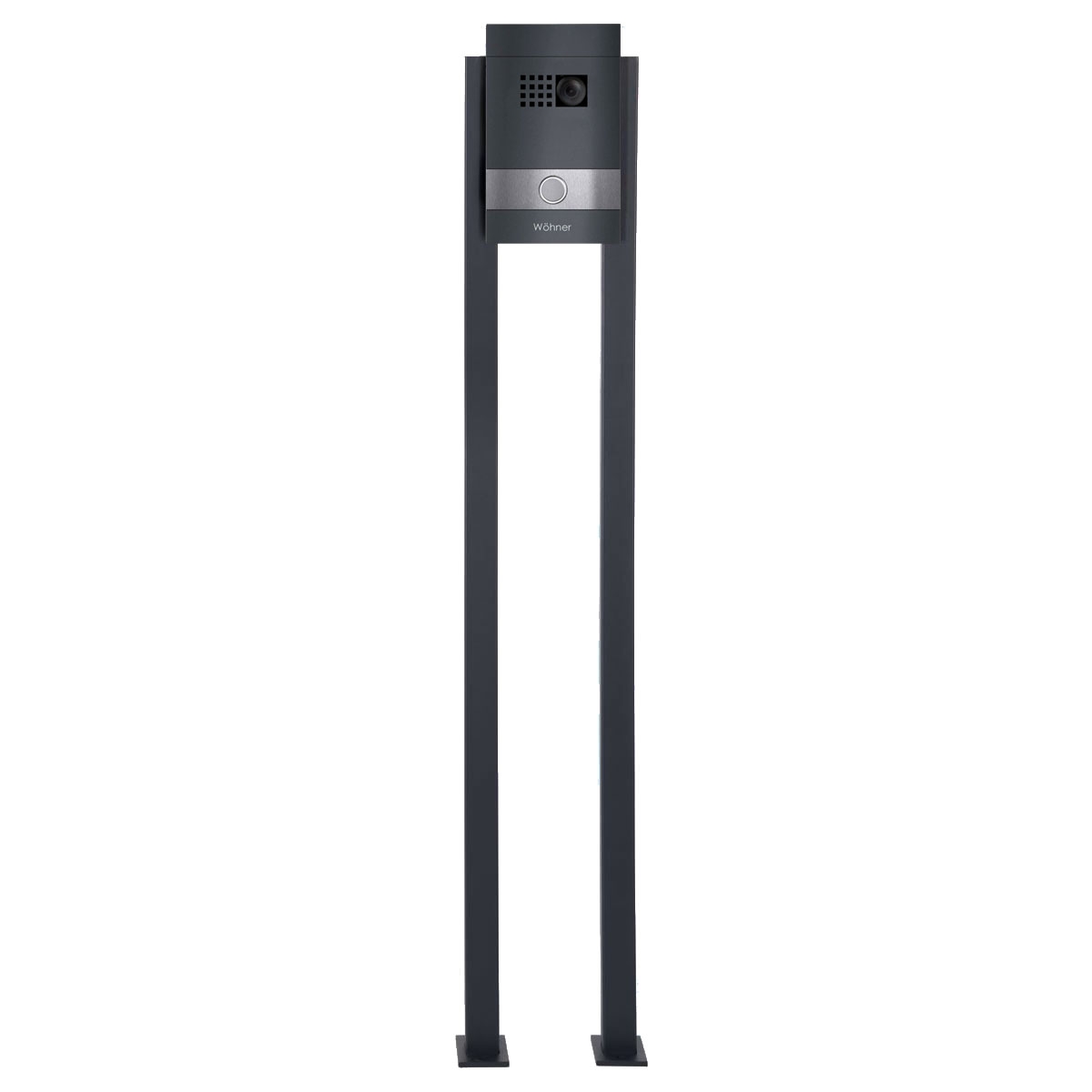

Freestanding video door station DIVISION 530S ST-Q - RAL colour with stainless steel application - Comelit VIDEO Set
The free-standing DIVISION 530S video call station is the perfect combination of state-of-the-art door communication, high-quality design and maximum ease of use. The elegant front made of powder-coated stainless steel in the colour of your choice blends seamlessly into any building façade, while the elegant stainless steel application with white illuminated bell push sets a stylish accent. The high-quality finish in V2A stainless steel makes the system particularly robust, durable and weather-resistant - ideal for long-term outdoor use.
Equipped with the innovative Comelit camera, you can experience razor-sharp live images, a generous wide angle, face recognition and voice control. Convenient operation via mobile phone or indoor intercom: Using the free Comelit app, you can receive visitor calls directly on your smartphone, see the camera image in real time, speak to guests and even open doors or gates if you wish - no matter where you are.
With the DIVISION 530S video call station, you are opting for a flexible, modular system in which front panels and camera modules can be easily replaced even years later. This means your door communication is always up to date - both technically and visually.
- Free-standing door station made of stainless steel V2A 1.4301.
- Interchangeable front panels powder-coated in RAL colour of your choice.

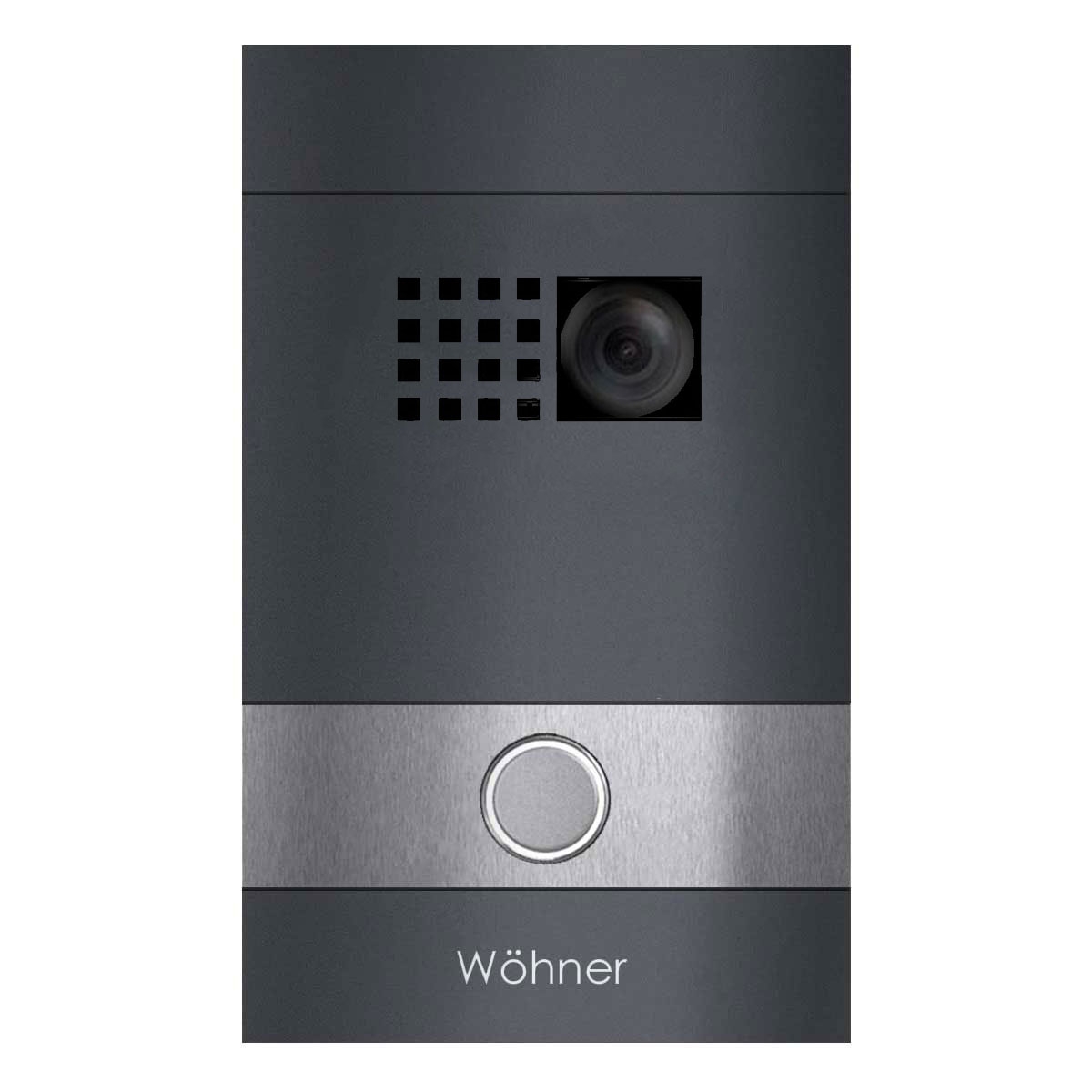

- Front panel with bell button in stainless steel V2A 1.4301, 240 grit polished.
- 8-12V DC short-stroke bell button with LED ring lighting in white.
- Installation box made of 2 mm stainless steel V2A 1.4301, 240 grit polished.

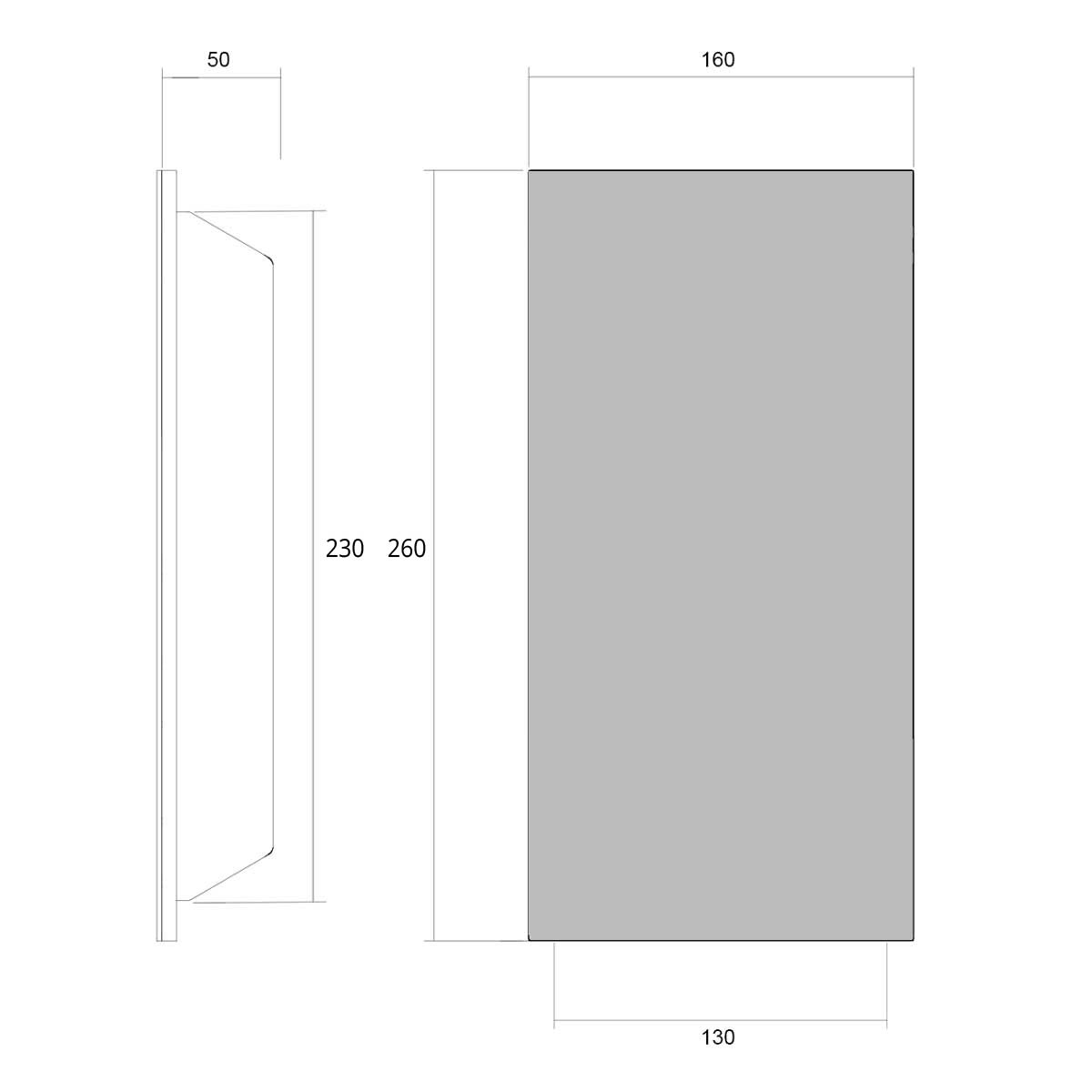

- Doorbell plate dimensions: W 160 mm x H 260 mm x D 8 mm.
- Installation box dimensions: W 130 mm x H 230 mm x D 50 mm.
- The uprights are made of 40 mm x 40 mm stainless steel V2A 1.4301, powder-coated in RAL colour for setting in concrete or screw mounting.
Important information
Camera or intercom preparation
The intercom systems must be connected by an electrician. Please contact your trusted electrician for planning, fitting and installation.
Water protection
To achieve optimum water protection, the door station should be located under a canopy if possible.
| Connection technology: | 2-wire |
|---|---|
| Material: | Stainless steel V2A 1.4301 |
| Number of bell push buttons: | 1 button |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
| Width in mm: | 130 | 160 |
|---|---|
| Height in mm: | 230 | 260 |
| Overall height in mm: | 1200.0 | 1500.0 | 1700.0 (recommended camera height 1400.0 -1600.0) |
| Total width in mm: | 210,0 |
| Depth in mm: | 52,0 |
| Weight in kg: | 4 |
| Delivery condition: | Supplied in blocks, floor units/door station divided |
| Shipping information: | Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (z.B. For free-standing letterboxes, the stand and box can be dispatched separately). |
The Comelit complete set in detail
The (video) intercom sets from COMELIT are available in two modern connection variants:2-wire technology and ViP (IP technology). Both systems impress with their high flexibility, simple installation and future-proof network integration.
2-wire technology - ideal for refurbishment and retrofitting
The 2-wire systems from COMELIT are simply connected via existing lines. This means that existing bell or intercom lines can continue to be used - without additional costs for laying new lines, plastering or painting work. Just two wires run from the new power supply unit in the meter cupboard to the built-in loudspeaker or video loudspeaker in the function box of the letterbox system and two wires from the power supply unit to the home station in the flat or to the gateway in the distribution box. Allthat is required for the WiFi function of the home station is a WLAN within range. The gateway 1406A is connected to the Internet via the Ethernet port.
++ Ideal for remodelling and renovation, as existing doorbell lines are used
++ No additional work for plastering and painting
++ Low costs thanks to simple installation
++ Fast and secure commissioning
ViP system (IP technology) - maximum flexibility and integration
As an alternative to 2-wire technology, COMELIT offers ViP technology (Video over IP), a modern, fully digital system based on Ethernet. This type of connection is ideal for new buildings, complex building structures or if seamless integration into existing network or building control systems is required.
All functions - from door communication and video surveillance to remote control - can be managed easily and securely via the local network or the Internet. Thanks to PoE (Power over Ethernet), a single network cable is sufficient for data transmission and power supply. The ViP systems are scalable, support a wide range of end devices and can be controlled with the COMELIT app via the smart gateway or the Wifi door station.
++ Ideal for new builds, larger systems and network integration
++ Simple expansion with additional door or indoor stations
++ PoE supply without separate power cable
++ Remote access via Internet or VPN
++ Maximum system flexibility thanks to IP standard
The COMELIT app functions
- Receive calls from the door station wherever you are.
- View recordings from the cameras in your system (including the door station cameras)
- Retrieve video messages from visitors recorded during your absence.
- Call the internal devices in your system (internal audio and video intercoms).
- Open gates, doors and switch on the lights.
- The APP is based on PUSH notifications; this means considerable energy and data savings, as the APP is only activated when a call is received, and much more.
The highlights Face recognition and voice commands
Easy integration with Amazon Alexa. This feature is available for free via the Mini Wi-Fi and is the incredible innovation that led to the creation of the first voice-controlled video intercom. You can integrate your Amazon Alexa into your Comelit video door entry system in a few simple steps, without the help of a professional.
We already know that you can unlock your phone at a glance. Why shouldn't it also be possible to open the gate to the house? Comelit facial recognition is available free of charge and gives you the ability to manage access in your home (gates, front doors, circulation areas) with a simple glance, without having to use a key, an app or anything else.
EU-compliant: COMELIT as a guarantee for your data
There are several countries that have banned certain manufacturers of video surveillance systems from entering the market. These include the United States, which prohibits government contractors from procuring telecommunications or video surveillance equipment, systems, or services (or a major component thereof) manufactured or supplied by some of the largest manufacturers and their subsidiaries and affiliates through Section 889 of the John ____0__ National Defense Authorisation Act.
By choosing Comelit, you are choosing a private Italian company with no state involvement and no interest or obligation to transmit the data collected through our servers.
And COMELIT has even more to offer!
- the cloud server infrastructure belongs to COMELIT and is located in Europe (in Frankfurt, one of the most important financial centres in Europe and a major hub for the data centre industry) and is managed in partnership with the most important cloud provider in the world: Amazon AWS (Amazon Web Services).
- the components of Comelit products comply with NDAA and GDPR regulations.
Your complete solution for high-resolution video door communication
Features and functions at a glance:
-
✅ High-resolution HD camera:
The integrated colour camera provides detailed video images in HD resolution. Ideal for clear identification of visitors - even in changing light conditions. -
✅ Wide-angle lens:
Thanks to the wide horizontal and vertical viewing angle, you can keep the entrance area fully in view - without blind spots. -
CMOS sensor with high light sensitivity:
The 1/3" CMOS sensor ensures stable image transmission even in low ambient light. Supported by automatic exposure and white balance. -
✅ Digital MEMS audio sensor & 28 mm speaker:
The integrated microphone (omnidirectional) in MEMS technology enables precise voice recording. The powerful speaker (4 Ohm, 2 W) ensures clear sound even in outdoor areas. -
✅ Full-duplex technology for real-time conversations:
Simultaneous speaking and listening without interruption - just like a natural telephone conversation. -
✅ Integrated volume control on the front:
The speaker volume can be conveniently adjusted directly on the front panel. -
✅ Barrier-free feedback:
Visual and acoustic signals (e.g. LED feedback) increase user-friendliness for people with disabilities. The signals can be individually programmed. -
✅ Door opener function & relay output:
With integrated door opener output (3 A) as well as potential-free relay contact (C, NC, NO - loadable up to 10 A) for flexible activation of door or gate systems.
The Comelit video loudspeaker Ultra combines HD video surveillance, professional audio quality and simple operation in one high-quality module. Ideal for anyone who relies on reliable door communication and modern equipment - in apartment blocks, commercial properties or sophisticated residential complexes.
