Charging station Draw BASIC Charge 2 - 22kW/32A with 2x type 2 charging cable

Charging station Draw BASIC Charge 2 - 22kW/32A with 2x type 2 charging cable

Article number: 90040-BC2-1300-RAL
Outstanding quality from Germany
1-2 charging cables
Ready for connection
Charging power up to 22kW
Description

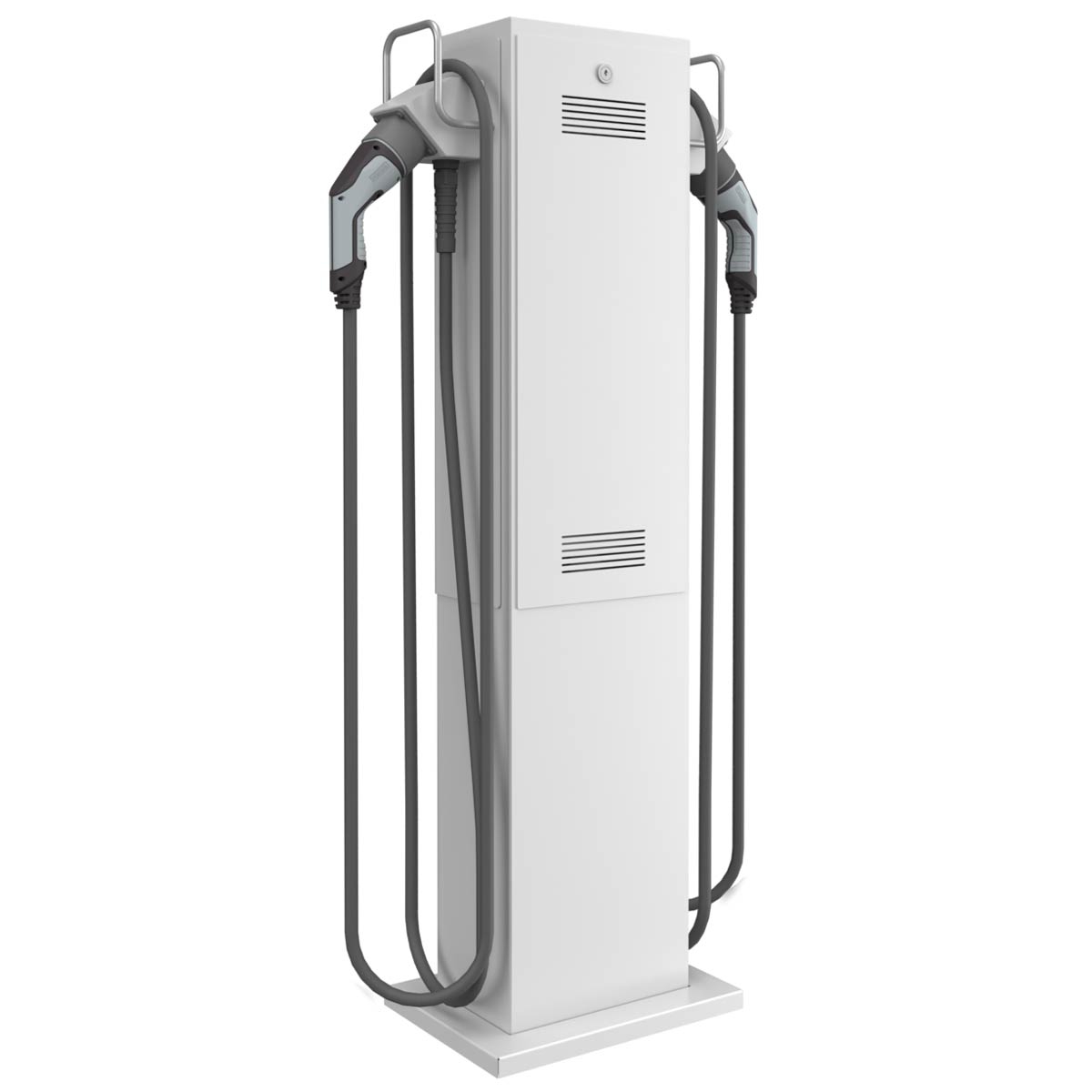

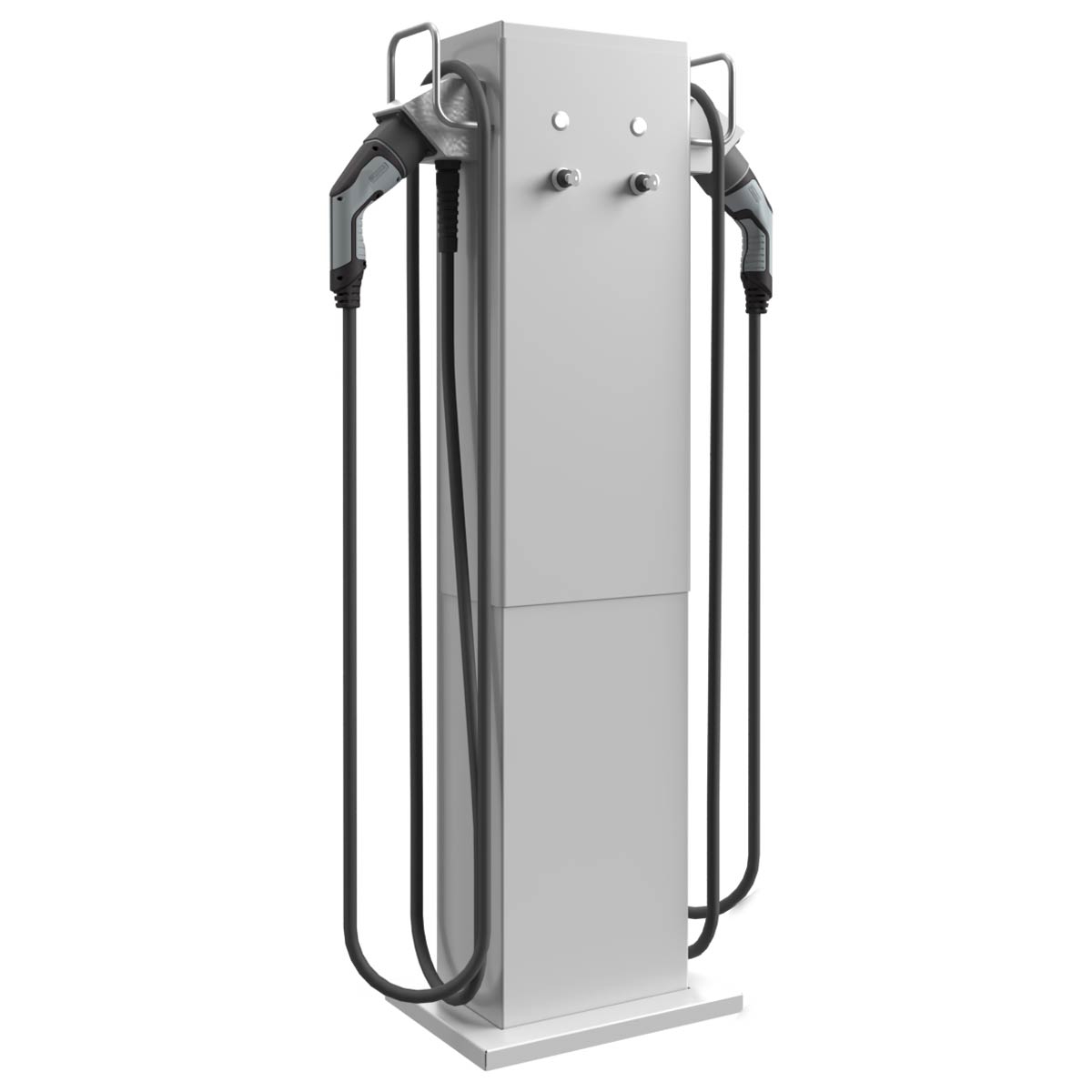

Charging pole Draw BASIC Charge 2 - 22kW/32A - 11kW/16A with 2x type 2 charging cable

The high-quality Draw charging pole with 2x type 2 charging cable (5.0m) is ideal for areas with high demands on design, functionality and safety. As a multiple solution for demanding car park environments or as a single solution for the home. The simple design blends in harmoniously. The Draw charging pole is equipped with a key switch incl. 2 keys with key number, so access is only possible when the key switch is switched on. The complete charging pole is made of stainless steel V2A 1.4301 and is ground with 240 grain or powder-coated in RAL colour.

Long durability and easy maintenance are guaranteed by the selected materials. The no-frills design and functional construction make the charging pole easy to care for, clean and maintain. BMLsystems also emphasises the highest quality when selecting the right material. The stainless steel material fulfils all conditions in an outstanding manner and has an extremely high corrosion resistance and an always striking surface finish.

Optional labelling with our high-quality laser engraving is possible, so that car park numbers, names or pictograms can be lasered on. Please feel free to ask us about this.

Simple installation by a specialised electrical company

The Draw charging pole is pre-installed ready for connection. All your electrician has to do is wire the supply line and add the sub-distribution board and you can start charging straight away. Thanks to its solid construction, the charging pole is ideally protected against vandalism and if something does get damaged, you can simply replace the defective components. The Draw charging pole is very easy to access thanks to the inspection flap on the back and is extremely simple to install and maintain. The modular design means that all components, from the cover to the charging unit, can be replaced at any time.

The charging system - BASIC Charge 2

With a flexible charging capacity of up to 22kW/32A 3-phase, the BC2 is compatible with all type 2 electric cars. The BC2 is authorised in the Draw charging station using a key switch. Integrated local load management for stand-alone charging solution - distributes the available nominal current between the two charging points. If one charging point is used, 22kW is available; if both are used, 11kW is available in each case.

Features

  • Charging pole for free-standing installation with front panel made of 2mm stainless steel V2A 1.4301.
  • Front panel optionally in 240 grain polished or RAL/DB colour of your choice.
  • Quality production - Made in Germany - BMLsystems.

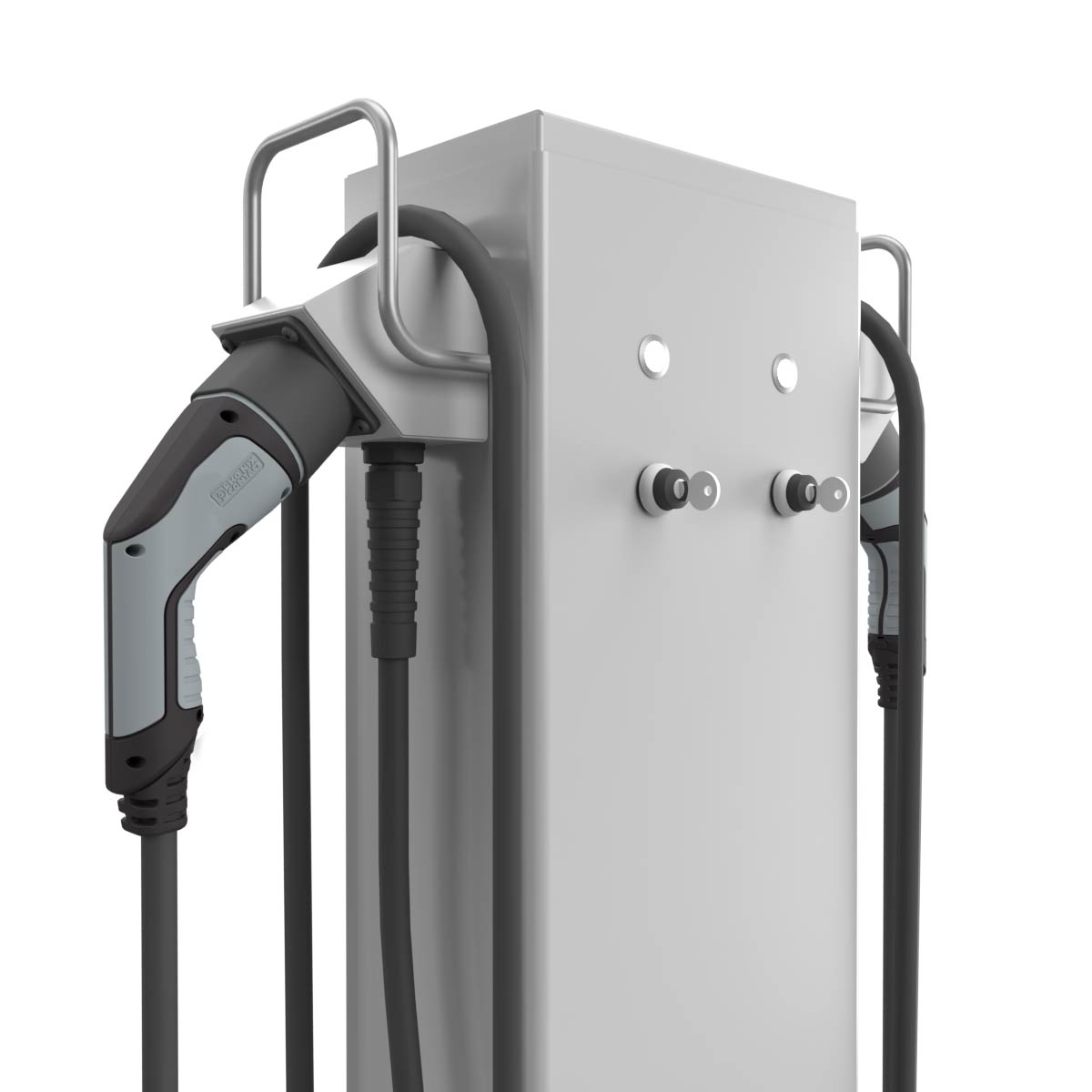

  • With key switch: holiday configuration, so when switched on the key can be removed and always charged.
  • Status display with LED indicator light.
  • Integrated BC2 charging system for fast charging with 22 kW (up to 10 times faster than a normal household socket).
  • Charging time approx. 60 minutes (depending on battery capacity and charging power of the electric vehicle)*.
  • High-quality AC charging system - Made in Germany - Phoenix Contact (CHARX) integrated.
  • Local load management - distributes the available nominal current between the two charging points.
  • Includes printed installation instructions, operating instructions and declaration of conformity.
  • High degree of protection and therefore usable in any weather situation (protection class IP54).
  • Integrated AC/DC residual current detection.
  • The fully welded charging pole is made of 2 mm stainless steel V2A 1.4301.
  • Invisible cable feed through the body.
  • Rear inspection flap with ventilation openings.

*Based on the maximum output power, an average expected battery capacity of 20 kWh and a charger in the vehicle corresponding to the maximum output power.

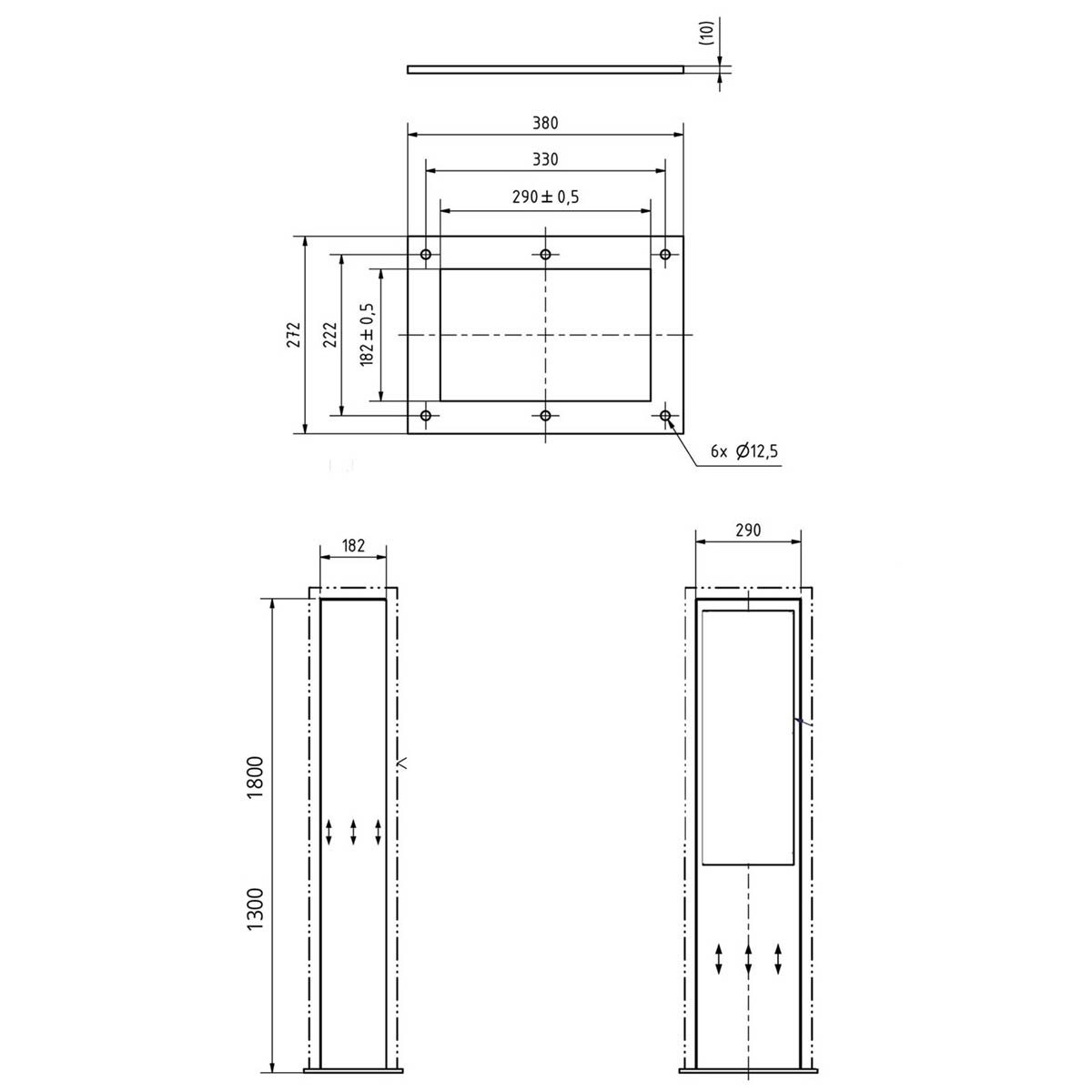

Dimensions

  • Stele dimensions: H 1300 mm | 1800 mm x W 290 mm x D 182 mm.
  • Base plate dimensions: H 10 mm x W 380 mm x D 272 mm.
  • Weight: approx. 55 kg | 65 kg.

Important information

Please note that professional installation by an electrician is required to use the wallbox included.

Properties
Access control: Key switch
Cable length: 5,0m
Charge controller: AC charging control CHARX by Phoenix Contact

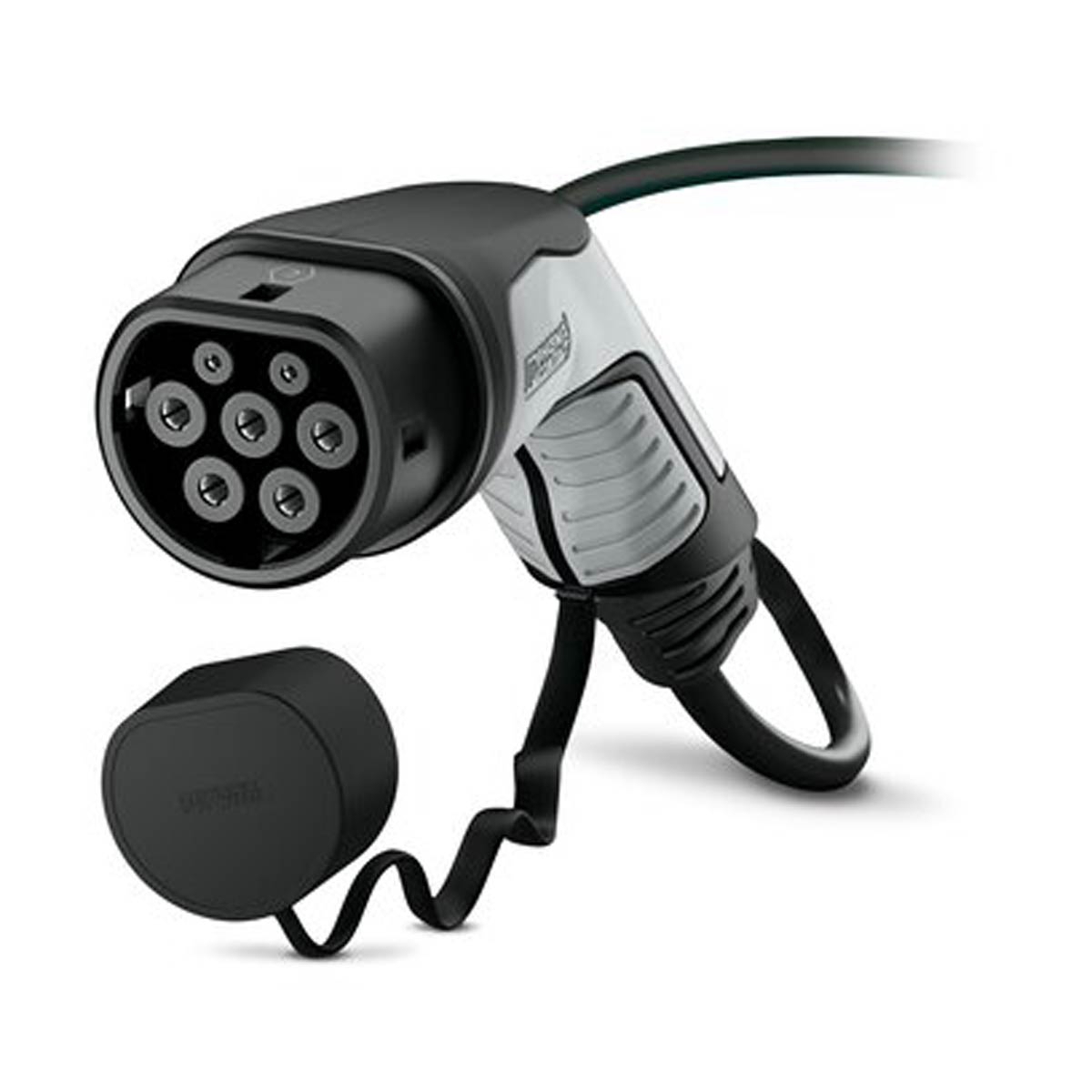

Charging connection: Type 2 charging cable
Charging mode: Mode 3
Charging standard: IEC 61851-1
Energy meter: w/o
Integrated functions: Load management, Monitoring
Interfaces: Ethernet, RS-485 (energy meter, RFID reader), USB-C
Internet connection: LAN
Load switch: Installation contactor, 4-pin, 25 A
Material: Stainless steel V2A 1.4301
Max. charging power: 11kW, 22kW
Nominal current: 16A
Nominal frequency: 50 / 60 Hz
Nominal voltage: 220 ... 240 V / 380 ... 415 V
Operating ambient temperature: -25 °C bis +40 °C
Operating mode: Client, Server, Stand-Alone
Overvoltage category: III
Phases: 3
Protection class: I
Protection type: IP54
Protective device: AC/DC-Fehlerstrom 30mA/6mA, RCD type B
Protocols: HTTP, HTTPS, MQTT, Modbus TCP, OCPP 1.6J
Storage ambient temperature: -35 °C bis +70 °C
Manufacturer

BMLsystems

Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Germany
info@briefkasten-manufaktur.de

BMLsystems is a registered trademark of Briefkasten Manufaktur Lippe GmbH. This brand offers well-designed solutions for modern energy and power supply. The focus is on high-quality wall boxes and socket columns, which are characterised by durable materials, clear design and reliable technical execution.

BMLsystems is aimed at private, commercial and semi-public applications and complements the existing portfolio of Briefkasten Manufaktur with electrical components. The focus is on functionality, safety and harmonious integration into different architectural environments.

Overall height in mm: 1300,0 | 1800,0
Total width in mm: 290.0 (footplate 380.0)
Depth in mm: 182.0 (foot plate 272.0)
Weight in kg: 55,0 | 65,0
Delivery condition: Supplied fully assembled
Shipping information: Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment.
