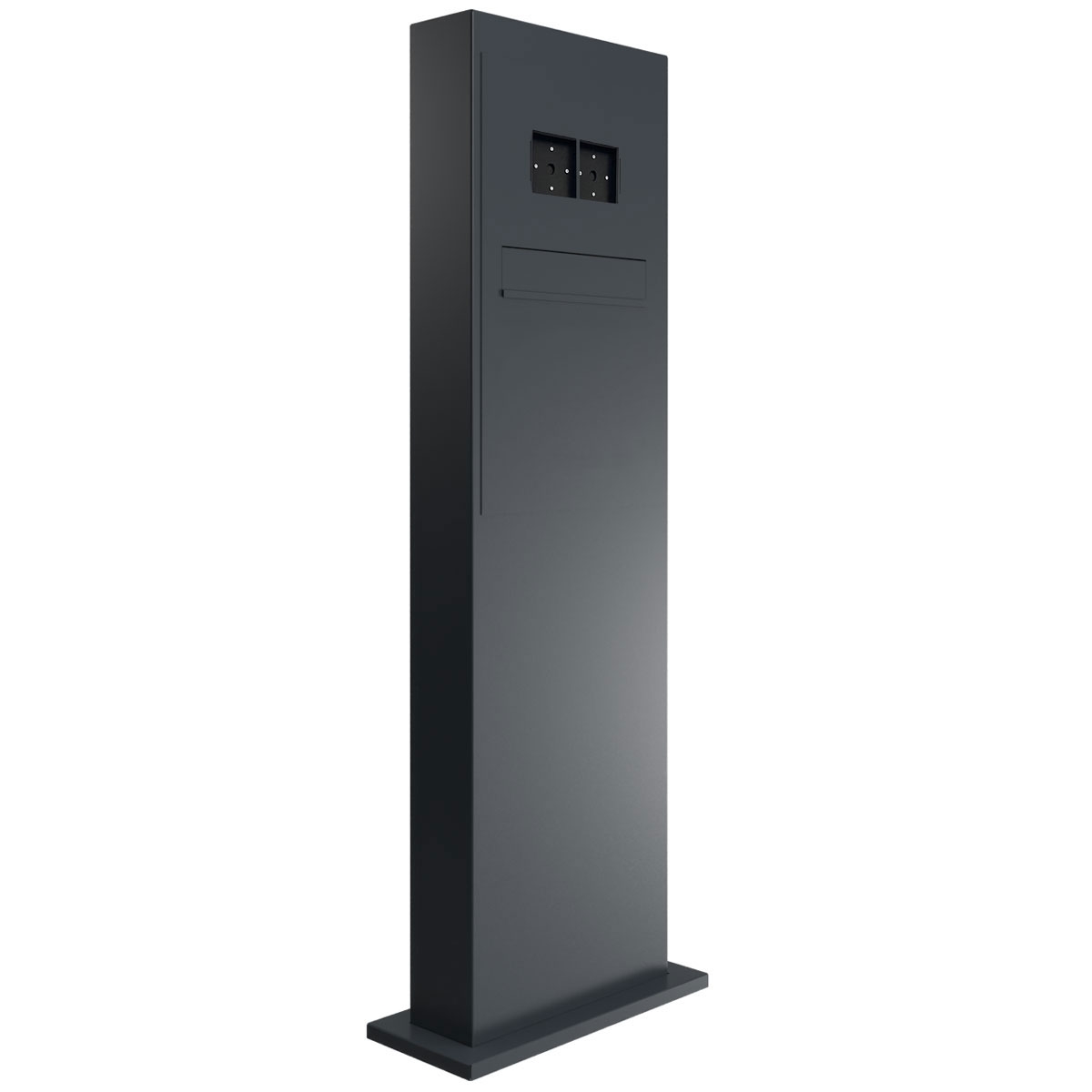

Design letterbox pedestal GRIMM - rear removal - colour of your choice - LOXONE Intercom/Code Touch 2x1 prepared

Design letterbox pedestal GRIMM - rear removal - colour of your choice - LOXONE Intercom/Code Touch 2x1 prepared

Article number: 562-STL-PE-H-SPO-1-SF-LOX2
Series: GRIMM

Not found anything suitable? Configure your mailbox entirely to your specifications!

Visit the 3D configurator

Outstanding quality with a 5-year guarantee
10 years spare parts supply
100% UV and weather-resistant material
Flush design
Description

Design Mailbox Stand GRIMM – A Masterpiece of Mailbox Manufacturing

The GRIMM mailbox stand combines modern design with top-quality craftsmanship – ideal for discerning builders and architects seeking an elegant solution for integrating the LOXONE intercom. Made from high-quality stainless steel and fully “Made in Germany” by the Mailbox Manufacturer Lippe, this model represents durability, functionality and a stylish appearance. The powder-coated front panel, made from 2 mm stainless steel V2A 1.4301, impresses with a timeless look and high corrosion resistance. The flush design allows for seamless integration of up to two LOXONE system modules (not included) using a well-designed mounting system. The preparation is made for 1 piece of LOXONE intercom (including aperture for sound exit).

The GRIMM mailbox impresses with modern design, high-quality workmanship and thoughtful functionality. Equipped with a classic stainless steel cam lock, including a dust protection cap, the locking mechanism is reliably protected from weather influences, ensuring a long lifespan. Mail retrieval is convenient from the rear, ideal when the mailbox is integrated into a wall or fence system. Mail insertion occurs from the front and is supported by high-quality axle dampers, enabling the flap to close gently and quietly. Thanks to the practical design, your mail remains secure in the box, even when the flap is opened. The GRIMM is particularly flexible due to its double box system: The column can be installed during the structural phase, while the front panel is only fitted once construction is complete. This protects the mailbox from dirt and damage during the build and ensures a perfect appearance upon moving in.

Thanks to the DIN/EN 13724 standard, the GRIMM is perfectly suited for large C4 format letters which can be placed inside without creases. The GRIMM mailbox impresses with its long-lasting quality, timeless design and thoughtful functionality.

A special feature of the Design Mailbox Stand GRIMM is the fully welded support column made from solid stainless steel V2A 1.4301, powder-coated in a colour of your choice. This construction guarantees maximum stability and an exceptionally long lifespan – even with constant outdoor use. The fully welded design creates a seamless, robust structure without visible screws or connections, which not only underscores the elegant appearance but also prevents moisture and dirt ingress. The precisely ground seams ensure a homogeneous appearance and give the stand a particularly high-quality look. Additionally, the construction allows for invisible cable management within the column, enabling all electrical connections for the DoorBird video intercom system as well as other smart home components to be installed safely and securely. This unique manufacturing process sets new standards in design and functionality, making the GRIMM mailbox stand a future-proof solution for modern architectural projects.

  • High-quality mailbox column entirely made of stainless steel for free-standing installation.
  • Front panel made from 2 mm stainless steel V2A 1.4301, powder-coated in the desired colour.
  • Quality manufacture – Made in Germany by Mailbox Manufacturer Lippe.
  • The LOXONE intercom can be seamlessly integrated into the flush design and can be replaced at any time. Preparation is made for 1 piece of LOXONE intercom (including aperture for sound exit). WITHOUT LOXONE intercom/system components!
  • High-quality lever lock including 2 keys with key number.
  • The rear retrieval door with opening limiter opens from top to bottom to prevent mail from falling out.
  • Front insertion with high-quality axle dampers for very quiet mail insertion.
  • DIN/EN 13724 compliant mailbox, insertion size (3.5 cm x 32.5 cm) for C4 horizontal – even larger letters remain intact. Additional retrieval protection made from stainless steel integrated.
  • Optimal weather protection through recessed panel.
  • Double box system: The panel can be conveniently installed after construction is completed and can be replaced at any time.
  • The fully welded support column consists of 2mm stainless steel V2A 1.4301, powder-coated in the desired colour. Construction height is 1.70 m.
  • Invisible cable entry through the body is possible.
  • The stand is equipped with a base plate made of VA. This is 10 mm thick and is finished with a cover panel. This conceals the fixing dowels.

Important Information:

To achieve optimal water protection for your mail, the mailbox or mailbox system should ideally be located under a canopy.

The mail is only protected from water when it is entirely placed in the box and the insertion flap is closed. Mail that is not fully inserted allows moisture and dirt to enter the mailbox. This system is protected against water ingress according to DIN EN 13724. Water ingress is not grounds for complaints.

Properties
Material: Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301
Number of boxes: with 1 letterbox
Removal of mail: On the back
Manufacturer

Briefkasten Manufaktur

Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
WEEE-Reg.-Nr. DE 24652177

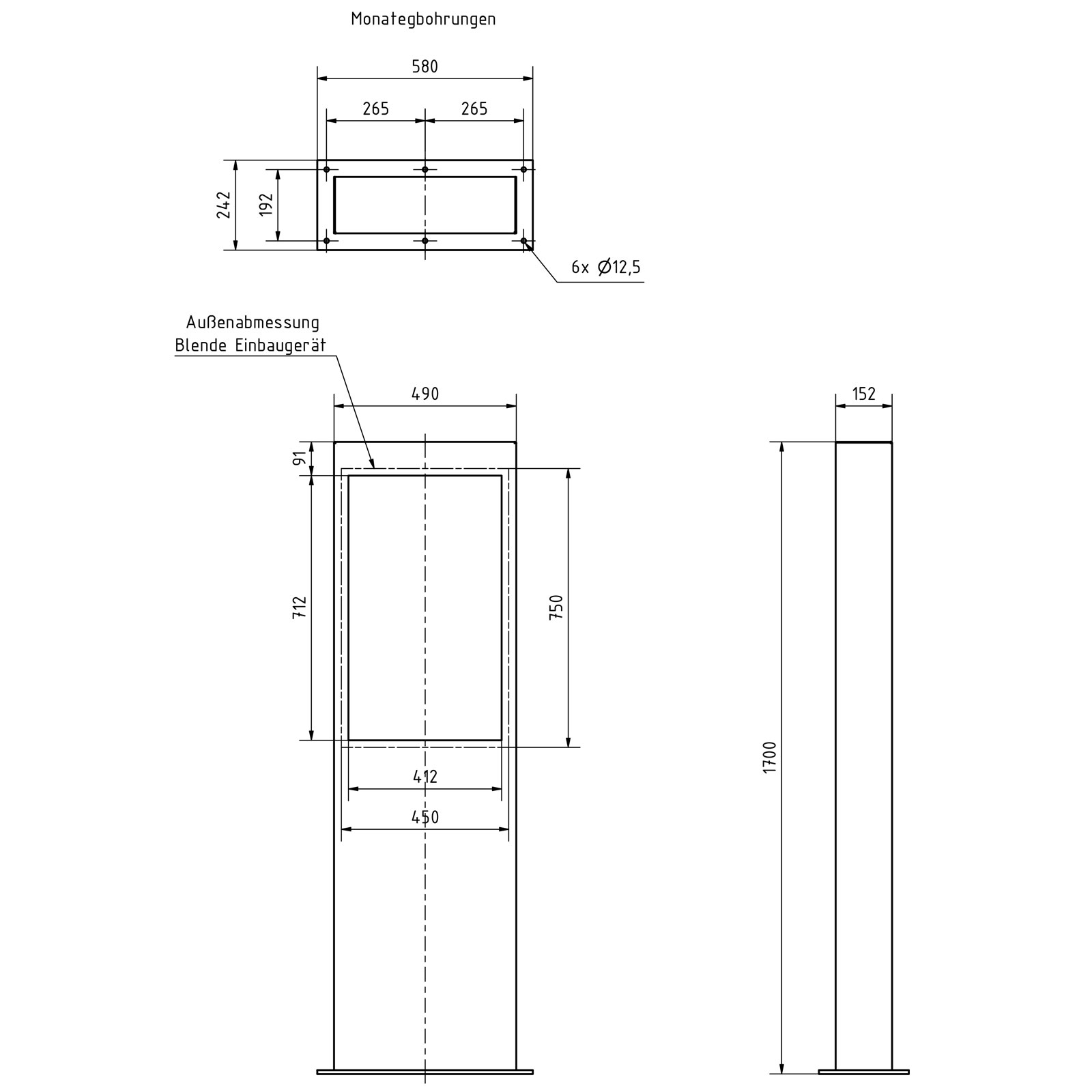

Height of single box in mm: External dimensions 750.0 | Installation dimensions 710.0
Width of single box in mm: External dimension 450.0 | Installation dimension 410.0
Capacity in litres: 26.0
Height of letterbox slot in mm: 35.0
Width of letter slot in mm: 325.0
Height of letterbox in mm: External dimension 750.0 | Installation dimension 710.0
Width of letterbox system in mm: External dimensions 450.0 | Installation dimensions 410.0
Overall height in mm: 1700.0
Total width in mm: Body 490.0 | Base Plate 580.0
Depth in mm: Korpus 150.0 | Base plate 242.0
Weight in kg: 65
Delivery condition: Delivery is made assembled.
Shipping information: Depending on the order volume, delivery is carried out via parcel shipping or bulky goods shipping. Partial deliveries are possible for disassembled products (e.g. for free-standing mailboxes, the shipment of the stand and box can be done separately).
Abmessungen
