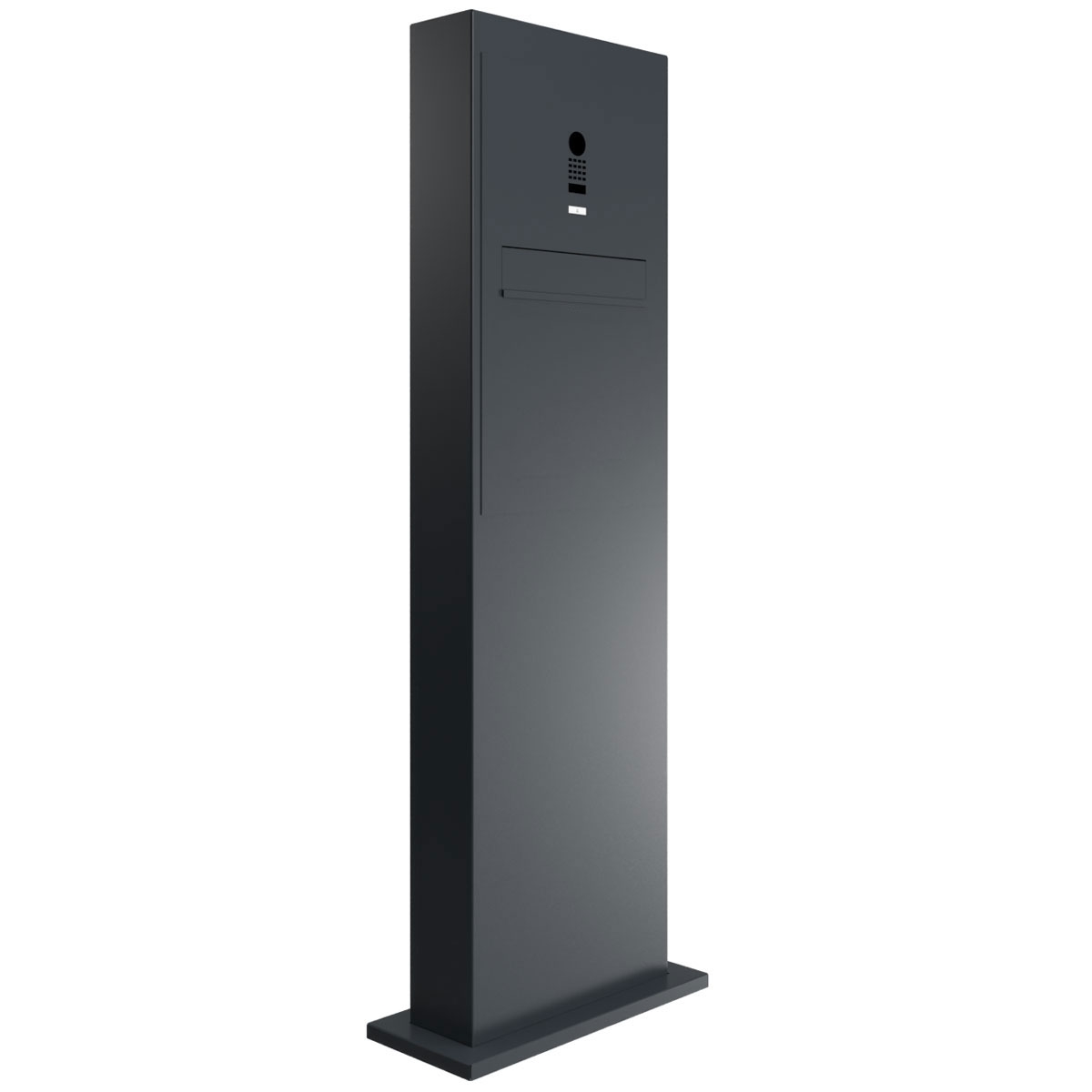

Design letterbox pedestal GRIMM - rear removal - colour of your choice with DoorBird video intercom system

Design letterbox pedestal GRIMM - rear removal - colour of your choice with DoorBird video intercom system

Article number: 562-STL-PE-H-SPO-1-SF-DB
Series: GRIMM

Have you not found what you're looking for? Configure your mailbox entirely to your exact specifications!

Visit the 3D configurator

Smartphone connection
HD quality
Most innovative IP technology
Made in Germany
Description

Design Mailbox Column GRIMM with DoorBird Video Intercom – A Masterpiece of Mailbox Manufacturing

The GRIMM mailbox column with rear retrieval combines modern design with first-class craftsmanship – ideal for discerning builders and architects seeking an elegant solution for integrating DoorBird. Manufactured from high-quality stainless steel and completely "Made in Germany" by the Mailbox Manufacturer Lippe, this model stands for durability, functionality, and stylish appearance. The powder-coated front panel made from 2 mm V2A stainless steel (1.4301) impresses with a timeless design and high corrosion resistance.

The heart of this system is the DoorBird IP Video Door Station D2100E or D1100E, which integrates seamlessly into modern smart home solutions. It offers live video transmission, intercom functionality, and mobile control via the DoorBird app. Whether at home or on the go, you can see and speak to visitors at your door anytime using your smartphone. Classic components such as doorbells, electric door openers, or gate drives can be easily integrated and controlled through the system.

The GRIMM mailbox impresses with modern design, high-quality craftsmanship, and thoughtful functionality. Equipped with a classic lever lock made of stainless steel, complete with a dust cover, the locking mechanism is reliably protected from weather influences and ensures a long lifespan. Mail retrieval is conveniently from the back – ideal when the mailbox is integrated into a wall or fence structure. Mail is inserted from the front and is supported by high-quality axis dampers that allow for gentle and quiet closure of the mail flap. Thanks to the practical design, your mail remains secure in the box, even when the flap is open. The GRIMM is particularly flexible due to its double box system: the column can be installed during the rough construction phase, while the front panel is mounted only after the construction work is completed. This protects the mailbox from dirt and damage during the construction period and ensures a perfect appearance upon moving in.

Thanks to the DIN/EN 13724 standard, the GRIMM is ideal for large letters in C4 format, which can be inserted without creases. The GRIMM mailbox impresses with its durable quality, timeless design, and thoughtful functionality.

A special feature of the Design Mailbox Column GRIMM is the fully welded stand column made from solid V2A stainless steel 1.4301, powder-coated in a colour of your choice. This construction guarantees the highest stability and an exceptionally long lifespan – even with permanent outdoor use. The fully welded design results in a seamless, robust body without visible screws or connections, which not only emphasises the elegant appearance but also prevents the ingress of moisture and dirt. The precisely ground seams provide a uniform appearance and give the column a particularly high-quality feel. Furthermore, the design allows for invisible cable management within the column, ensuring that all electrical connections for the DoorBird video intercom and other smart home components can be safely and securely installed. This unique manufacturing method sets new standards in design and functionality, making the GRIMM mailbox column a future-proof solution for modern architectural projects.

  • High-quality mailbox column made entirely from stainless steel for freestanding installation.
  • Front panel made from 2 mm V2A stainless steel 1.4301, powder-coated in the desired colour.
  • Quality manufacturing – Made in Germany by Mailbox Manufacturer Lippe.
  • Integrated DoorBird IP Video Door Station – modern door communication via mobile. Compatible with many smart home systems and existing building technology.
  • High-quality lever lock including 2 keys with key number.
  • The rear retrieval door with opening limiter opens from top to bottom to prevent the mail from falling out.
  • Front insertion with high-quality axis dampers for very quiet mail insertion.
  • DIN/EN 13724 compliant mailbox, insertion size (3.5 cm x 32.5 cm) for C4 landscape – even large letters remain intact. Additional stainless steel retrieval protection integrated.
  • Optimal weather protection through recessed panel.
  • Double box system: The panel can be conveniently installed after construction work is completed and can be replaced at any time.
  • The fully welded stand column consists of 2 mm V2A stainless steel 1.4301, powder-coated in the desired colour. The construction height is 1.70 m.
  • Invisible cable feeds through the body are possible.
  • The column is equipped with a base plate made of VA. This is 10 mm thick and is finished with a cover panel. This conceals the fastening dowels.

Important Information:

To achieve optimal water protection for your mail, the mailbox or mailbox system should ideally be located under a canopy.

Mail is only protected from water if it is completely placed inside the box and the insertion flap is closed. Mail that is not fully inserted allows moisture and dirt to enter the mailbox. This system is protected against water entry according to DIN EN 13724. Water ingress is not a reason for complaint.

Properties
Connection technology: 2-wire, LAN
Material: Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301
Number of bell push buttons: 1 button
Number of boxes: with 1 letterbox
Removal of mail: On the back
Manufacturer

Briefkasten Manufaktur

Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
WEEE-Reg.-Nr. DE 24652177

Height of single box in mm: External dimension 750.0 | Installation dimension 710.0
Width of single box in mm: External dimensions 450.0 | Installation dimensions 410.0
Capacity in litres: 26.0
Height of letterbox slot in mm: 35.0
Width of letter slot in mm: 325.0
Height of letterbox in mm: External dimension 750.0 | Installation dimension 710.0
Width of letterbox system in mm: External dimensions 450.0 | Installation dimensions 410.0
Overall height in mm: 1700.0
Total width in mm: Korpus 490.0 | Base plate 580.0
Depth in mm: Korpus 150.0 | Base Plate 242.0
Weight in kg: 65
Delivery condition: Delivery is made assembled.
Shipping information: Depending on the order volume, delivery will be made via parcel shipment or bulky goods shipment. Partial deliveries are possible for dismountable products (e.g. for free-standing mailboxes, the stand and the box can be shipped separately).
Abmessungen
Reviews 0

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.

Excellent

Very good

Good

Acceptable

Unsatisfactory

Please enter at least 5 characters.
Please enter at least 40 characters.
(Maximum number of files:3, Maximum file size (in MB):16, Allowed file extensions:jpeg;jpg;png;webp)
No files selected

“In every sturdy piece of iron there is a touch of magic.” – inspired by the Brothers Grimm

How does the Push-Key lock work?

With our latest development—the Push-Key lock—we are revolutionising mailbox security. This pioneering lock is supplied with two keys.

Its outstanding feature is a purely mechanical design. The key simply needs to be inserted; no turning is required – a straightforward action for the owner.

Closing the lock is just as easy: simply push the flap shut. No more fiddling or turning – the Push-Key lock provides maximum security with minimal effort. Discover a new era of user-friendly, innovative locking mechanisms.

Is the GOETHE letterbox sustainable?

The revolutionary GOETHE system from Briefkasten Manufaktur redefines sustainability in product design. Every component of the system is replaceable, resulting in a long-lasting solution designed to last a lifetime. This approach creates unique possibilities and elevates the product well above the market standard.

With the GOETHE system, we are setting a milestone in sustainable product development. Our commitment to environmental protection and durability is reflected in this innovative concept. By minimising the need to discard products, we reduce resource waste and contribute to a sustainable future.

Is the GOETHE® collection available in the configurator?

The GOETHE® mailbox is available in all mounting options offered by Briefkasten Manufaktur. Accordingly, the GOETHE® mailbox can be used either as a wall-mounted or freestanding mailbox. In the wall-mounted version, the mounting options are through-wall, recessed (flush-mounted) and surface-mounted. In the freestanding version, the mounting options are a post or freestanding elements. All variants can be configured in the Mailbox Configurator.

goethe-briefkasten

DoorBird in detail

Imagine you are not at home and your children have locked themselves out, or the parcel courier is at the door. With DoorBird, this is no longer an issue. Each time the doorbell rings, you receive a push notification on your smartphone or tablet and can speak to the visitor and see them in HD. This ensures you will never miss a visitor again. With DoorBird, you can be away and still be at home, even if a burglar presses the doorbell to check whether anyone is present.

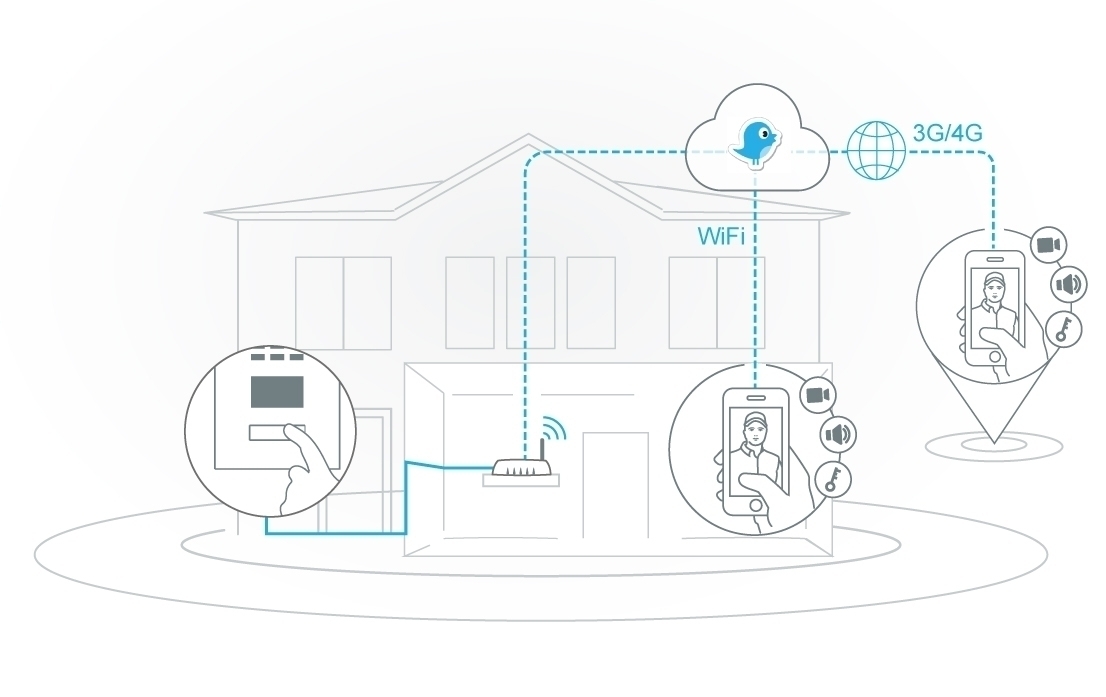

Funktionsschema der Video-Türstation DIVISION 530S mit DoorBird D1100E: Über Router, Internet und Cloud sind Videoübertragung, Gegensprechen und Türöffnung per Smartphone zu Hause und unterwegs möglich.

Open API

Local interface for integration with third-party and SIP systems

Video and audio calls

On smartphones and tablets (iOS, Android) or on fixed-line phones (SIP)

Smart Transmission Mode (STM)

Real-time audio/video transmission, optimised for mobile devices over Wi-Fi, 3G, 4G, 5G

Smart Home & ONVIF-compatible

KNX, Loxone, Synology, KIWI AVM FRITZ!Fon, URC, Bang & Olufsen, Control4, QNAP, RTI, ELAN, Fibaro and many more.

Receive parcels at any time

Direct the delivery driver, for example to a neighbour, or open the garage door via your smartphone

And many other benefits

Customised time and action schedules, automated door opener, free cloud recording, geofencing, intrusion prevention, night vision, light sensor, motion sensor with 4D technology, HDTV video, echo and noise suppression (AEC, ANR), illuminated call button, easy network connection


DoorBird comparison

← Swipe horizontally to compare →
Model D1100E D2100E D2200E D3100E
Image DoorBird D1100E Engineering Edition DoorBird D2100E Engineering Edition DoorBird D2200E Engineering Edition DoorBird D3100E Engineering Edition
Network / Power supply LAN (PoE) or Wi‑Fi, external power supply for Wi‑Fi LAN (PoE), no Wi‑Fi LAN, PoE 802.3at Mode A/B, no Wi‑Fi LAN (PoE+), no Wi‑Fi
Access control Bluetooth optional, no RFID RFID included as standard RFID 125 kHz + 13.56 MHz, Bluetooth Low Energy; Wiegand, OSDP and RS485 hardware-ready RFID, Bluetooth Low Energy, QR code reader, Wiegand interface
Call button 1 analogue button Multiple analogue doorbell buttons possible One or more call buttons or expansion modules, depending on configuration Multiple residents via touch display with resident directory
Camera HDTV 1080p HDTV 720p 5 MP, HD / HDR HDTV 1080p
Lens angles 200° (D), 150° (H), 90° (V) 180° (D), 140° (H), 100° (V) 180° (D), 140° (H), 100° (V) 180° (D), 150° (H), 82° (V)
Night vision IR-capable IR LEDs 2 IR LEDs, light sensor and automatic IR-cut filter IR LEDs, IR-cut filter
Motion sensor 4D, range 1–6 m 4D, range up to 10 m 4D, range 1–10 m, configurable 4D, range up to 6 m
Relays 1 relay 2 relays 2 bistable relays 2 bistable relays
Dimensions 115.5 × 56.5 × 27.5 mm 186 × 74 × 48 mm 186 × 76 × 48.5 mm 232 × 96 × 50 mm
Intended use Single-family homes and compact systems, high flexibility thanks to Wi‑Fi Multi-tenant systems with traditional doorbell buttons Single- and multi-family systems, modularly expandable D22 generation Multi-occupancy buildings and larger systems with digital resident directory
