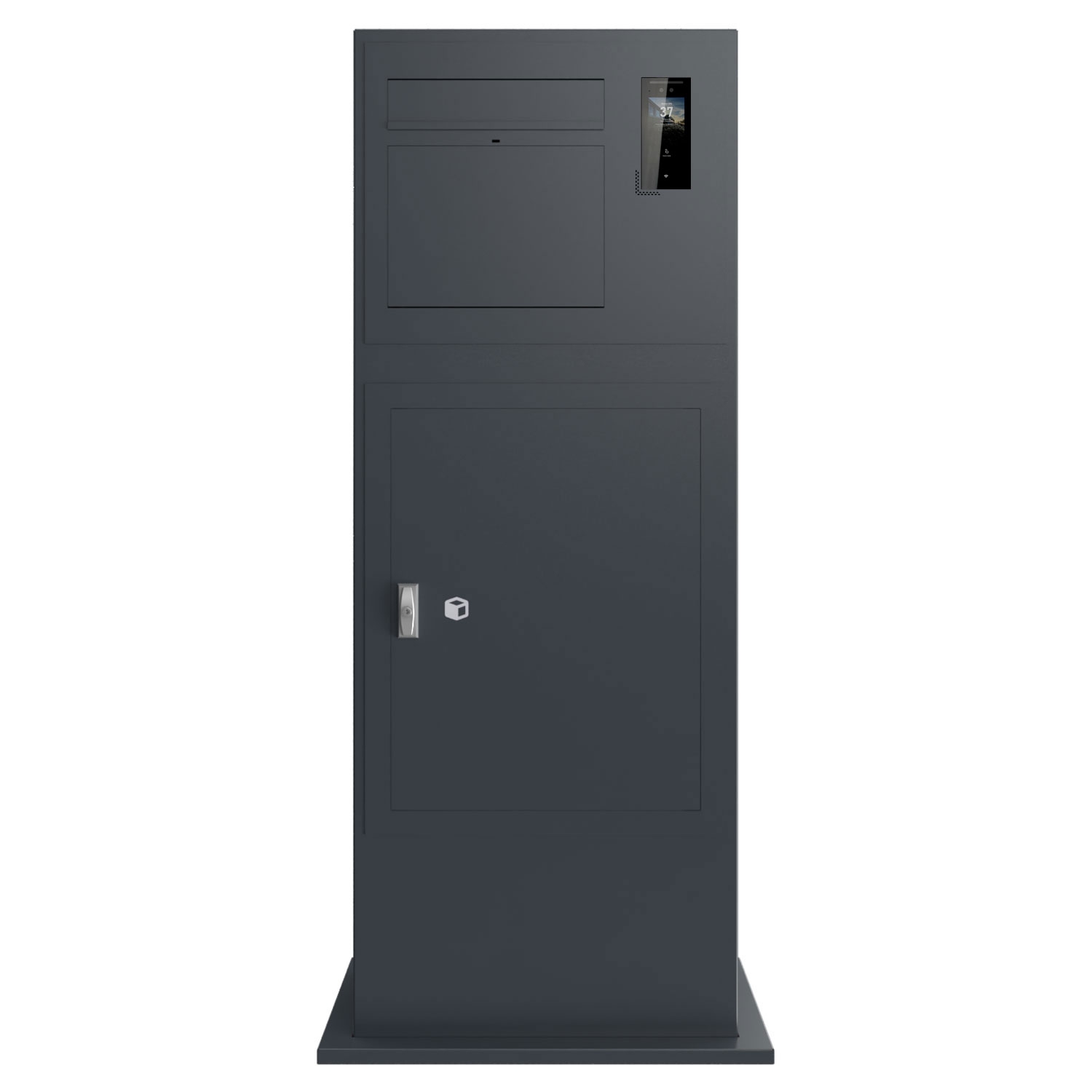

Design Mailbox Parcel Column GRIMM with Ekinex Dico IP Video Intercom – The Premium Solution for Mail & Parcels
The Design Mailbox Parcel Column GRIMM combines modern design, high-quality craftsmanship, and maximum flexibility. Made from 2 mm stainless steel V2A 1.4301 and powder-coated in a colour of your choice, the column impresses with its timeless elegance and extreme durability. Thanks to the fully welded construction, there are no visible screws or rivets, creating a particularly elegant appearance. The mailbox and parcel box module is also installed with invisible screws – for a premium look at the highest level.
Especially practical: The modules can be replaced even after many years. This keeps your mailbox parcel column flexible and future-proof at all times. This model is manufactured by the Mailbox Manufactory in Bad Salzuflen – quality work "Made in Germany".
A special feature of the system is the proven mechanical parcel lock with a T-handle, which allows for delivery independent of the carrier: The delivery person places the package in the openly accessible compartment and locks it with a simple click. The compartment remains locked until the authorised user opens it with their key. A clever solution – without electronics, without an app, but with maximum security. Whether DHL, UPS, DPD, GLS, Hermes or TNT – any parcel service can use the parcel box. This way, you receive your shipments securely and conveniently, even when you are not at home.
Particularly noteworthy is the seamless integration of the Ekinex Video Intercom IP Dico with the Delégo panel available in sizes of 4, 8 or 10 inches. This high-quality solution offers modern, IP-based door communication with touch control, intelligent management, and brilliant image and sound quality. The precise fitting into the front panel creates a harmonious overall look – perfectly matched to the architecture of modern residential and commercial buildings. The Delégo panels allow for comfortable control directly at the door or centrally in the building and offer diverse options for building networking.
The mailbox GRIMM is not only a visual highlight but also excels in functionality and quality. Thanks to the innovative push-key lock, the mailbox can be operated easily and comfortably with one hand. Open the door with a press and close it without using a key. The lock is optimally protected against weather influences. Additionally, the mailbox features an intelligent retrieval system: The door opens from top to bottom, ensuring that the mail stays securely inside and cannot fall out. The mail can also be inserted comfortably from the front, with high-quality axis dampers ensuring a gentle closing of the insertion flap.
In accordance with DIN/EN 13724 standard, the GRIMM is ideal for large letters in C4 format, which can be inserted without creasing. The GRIMM mailbox impresses with its durable quality, timeless design, and thoughtful functionality.
Mailbox Module with Functional Box – Comfort and Functionality
- Made from 2 mm stainless steel V2A 1.4301, powder-coated in the desired colour.
- Integrated Ekinex Video Intercom Dico IP door phone 5” (Item No. EK-5DP-VI) with Delégo panel available in sizes of 4, 8, or 10 inches.
- Innovative push-key lock including 2 keys with key number, pleasant locking without a key, optimally protected from weather.
- The retrieval door with opening limiter opens from top to bottom to prevent mail from falling out.
- Front insertion with high-quality axis dampers for very quiet mail insertion.
- DIN/EN 13724 compliant mailbox, insertion size (3.5 cm x 32.5 cm) for C4 landscape – even large letters remain intact. Additional retrieval protection integrated from stainless steel.
- Optimal weather protection through a recessed panel.
- Double box system: The panel can be conveniently installed after construction work and can be replaced at any time.
Parcel Box Module – Safe and Spacious
- Made from 2 mm stainless steel V2A 1.4301, powder-coated in the desired colour.
- Parcel volume: 130 litres – ideal for large shipments.
- Maximum parcel dimensions: 505 × 655 × 340 mm (W × H × D).
- Front parcel retrieval door 510 × 660 mm, opens from left to right.
- Door equipped with durable stainless steel hinges.
- Innovative T-handle parcel lock with snap closure.
- Including 2 keys with key number.
- Icon "PACKAGE" as stainless steel laser engraving.
Construction & Details
- Fully welded support column made from 2 mm stainless steel V2A 1.4301, powder-coated in the desired colour.
- Height: 1.70 m.
- Invisible cable management possible through the body.
- Base plate made of stainless steel (10 mm thick), concealed by an elegant cover panel.
- No visible screws or rivets – seamless design.
- Modules can also be replaced after years – maximum future security.
Important Information:
To achieve optimal water protection for your mail, the mailbox or mailbox system should ideally be placed under a roofed area.
The mail is only protected from water if it is completely placed in the box and the insertion flap is closed. Mail not fully inserted allows moisture and dirt to enter the mailbox. This system is protected against water ingress according to DIN EN 13724. Water ingress is not a reason for complaint.
| Connection technology: | LAN |
|---|---|
| Material: | Stainless steel 1.4016 (non-rusting magnetic stainless steel), Stainless steel V2A 1.4301 |
| Number of bell push buttons: | 1 button, 2 buttons, 3 buttons, 4 buttons, 5 buttons, 6 buttons, 7 buttons, 8 buttons, 9 buttons, 10 buttons, 11 buttons, 12 buttons, 13 buttons, 14 buttons, 15 buttons, 16 buttons, 17 buttons, 18 buttons, 19 buttons, 20 buttons, 21 buttons, 22 buttons, 23 buttons, 24 buttons, up to 100 bell buttons |
| Number of boxes: | with 1 letterbox, with 1 parcel box |
| Removal of mail: | On the front |
Briefkasten Manufaktur
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
WEEE-Reg.-Nr. DE 24652177
| Height of single box in mm: | Mailbox 460.0 | 500.0 - Parcel box 710.0 | 750.0 |
|---|---|
| Width of single box in mm: | Mailbox 560.0 | 600.0 - Parcel Box 560.0 | 600.0 |
| Capacity in litres: | Mailboxes 26.0 | Parcel Boxes 130.0 |
| Height of letterbox slot in mm: | 35.0 |
| Width of letter slot in mm: | 325.0 |
| Overall height in mm: | 1700.0 |
| Total width in mm: | Korpuss 640.0 | Base Plate 730.0 |
| Depth in mm: | Korpus 352.0 | Base Plate 442.0 |
| Weight in kg: | 95 |
| Delivery condition: | Delivery is made assembled. |
| Shipping information: | Depending on the order volume, delivery is made via parcel shipping or bulky goods shipping. Partial deliveries are possible for disassemblable products (e.g. for post boxes, the shipping of the stand and box can occur separately). |
“There is a touch of magic in every sturdy piece of iron.” – inspired by the Brothers Grimm
How does the Push-Key lock work?
With our latest development, the Push-Key lock, we are revolutionising letterbox security. This pioneering lock is supplied with two keys.
What makes this lock special is its groundbreaking, purely mechanical technology. The key only needs to be inserted — no turning is required, making it a straightforward action for the owner.
Locking the mechanism is equally straightforward: the flap is pushed shut. No cumbersome handling or turning any longer — our Push-Key lock provides maximum security with minimal effort. Experience a new era of user-friendliness and innovation in locking mechanisms.
The mechanical parcel lock with T-handle
The parcel compartment with a T-handle parcel lock is suitable for receiving particularly large parcels. In this system the lock remains unlocked until a courier places the parcel and locks it. The parcel is then secured and can be retrieved by the residents by unlocking it. The lock then remains unlocked so that the next courier can place a parcel. This mechanism is particularly suitable for large but infrequent parcel deliveries (typically one item per day).
Ekinex – Italian design meets high-end technology
The Ekinex brand is synonymous worldwide with Italian engineering expertise and design finesse. Designed and manufactured in Italy, Ekinex products combine precise engineering with a minimalist, functional design ethos. The clean lines, high-quality materials and intuitive operating concepts stem from a philosophy that does not separate aesthetics from technology but integrates them harmoniously.
Smart, secure and versatile: Features of the IP Dico in detail
Camera 2 MP dual-lens camera, WDR
Display 5" LCD display, touchscreen, resolution 1280x720 px
Card reader 13.56 MHz and NFC
Interfaces 1 door release relay, 1 input
Storage Face images: 20,000 ID card codes: 20,000
Facial recognition
DICO integrates a powerful facial recognition system based on biometric data stored on the device (no cloud transmissions). The biometric profiles are anonymised in full compliance with data protection and GDPR guidelines. Faces can be stored by uploading a simple photograph via the local web configuration interface or through a learning procedure.
When a face is recognised, DICO can close its integrated relay and can also send a request to Delégo to trigger other operations, such as KNX auxiliary commands or scenarios.
NFC technology
DICO can also enable access via RFID cards or 13.56‑MHz proximity cards. In future, this function can be integrated into Delégo's MyWay access control system.
Scan QR code
DICO can also enable access via a previously generated and authorised QR code. This makes it possible to conveniently grant occasional guests access for a specified period without storing their biometric data and/or disclosing their access codes.
Unlimited video calls, anywhere, anytime
The app is the ideal tool for both installers and end users. Installers can configure systems with one or more video door intercoms and set call forwarding rules for different flats. End users can also answer calls when away from the flat, monitor video door intercoms remotely and view the call and access history. With DICO, security and control are always firmly in your hands.
Residential stations with a design focus
Delégo Panel
Discover the stylish Delégo Panel touch consoles: available in 4″, 8″ and 10″ sizes for elegant wall mounting. Perfectly networked via IP and PoE, they allow convenient control of building automation, door communication, security, multimedia and energy management via an intuitive Android-based platform. Made in Italy, they integrate seamlessly into your smart home.
