Stainless steel light switch BASIC type 4 with LED symbol & ring illumination red

Stainless steel light switch BASIC type 4 with LED symbol & ring illumination red

Article number: BMLZB-LTVA-4
3% discount for advance payment
Free delivery within Germany
Description

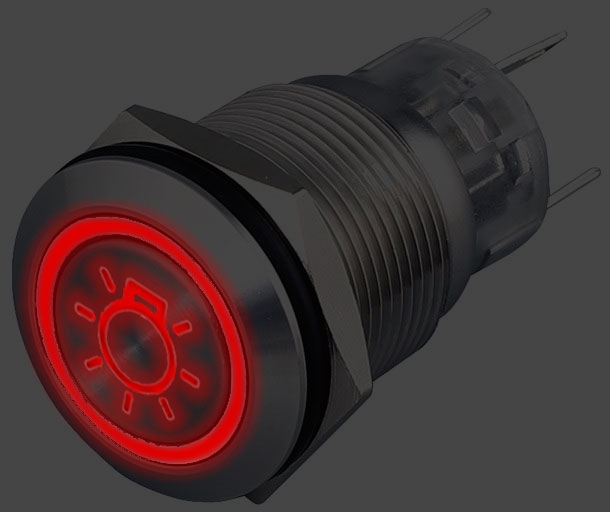

Stainless steel light switch BASIC type 4 with LED symbol & red ring lighting (version 2024)

High-quality stainless steel light switch BASIC type 4 with LED symbol & red ring lighting for panels. This push-button type is available from 04|2024 and is installed for all products with BASIC push-button.

  • Collar and knob made of brushed stainless steel
  • Illumination: LED ring lighting red, 3-24V AC/DC ≤ 20mA, min. 50,000 hrs.
  • "Light" pictogram lasered out

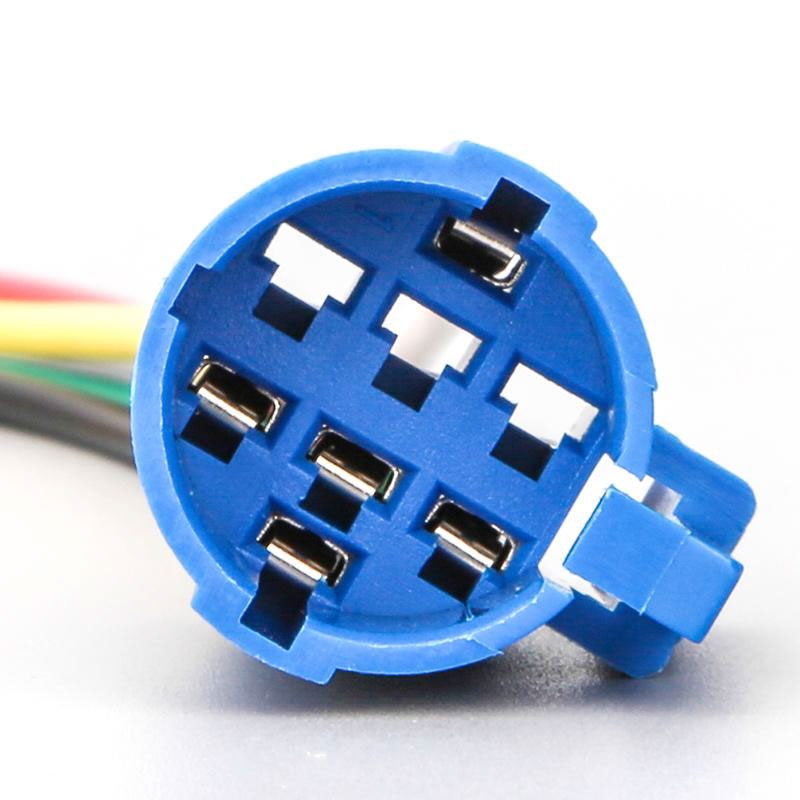

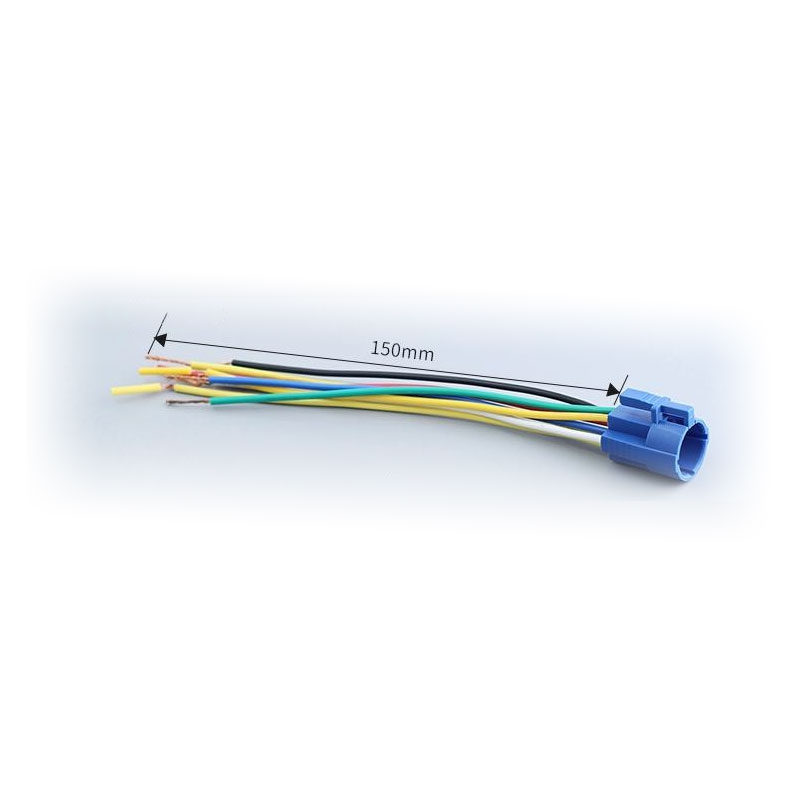

  • Incl. matching wiring harness
  • Switching capacity: 5A @ 250V AC
  • Function: normally open contact
  • Service life: min. 50,000 electrical operations, min. 1,000,000 mechanical operations
  • Installation diameter: 19.1mm
  • Head shape: Flat
  • Operating environment: -25°C to +65°C at 45% to 85% RH
Properties
Material: Stainless steel V2A 1.4301
Manufacturer

Briefkasten Manufaktur

Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
WEEE-Reg.-Nr. DE 24652177

Width in mm: Inner dimension 19 | outer dimension 22
Height in mm: Inner dimension 19 | outer dimension 22
Depth in mm: 41,0
