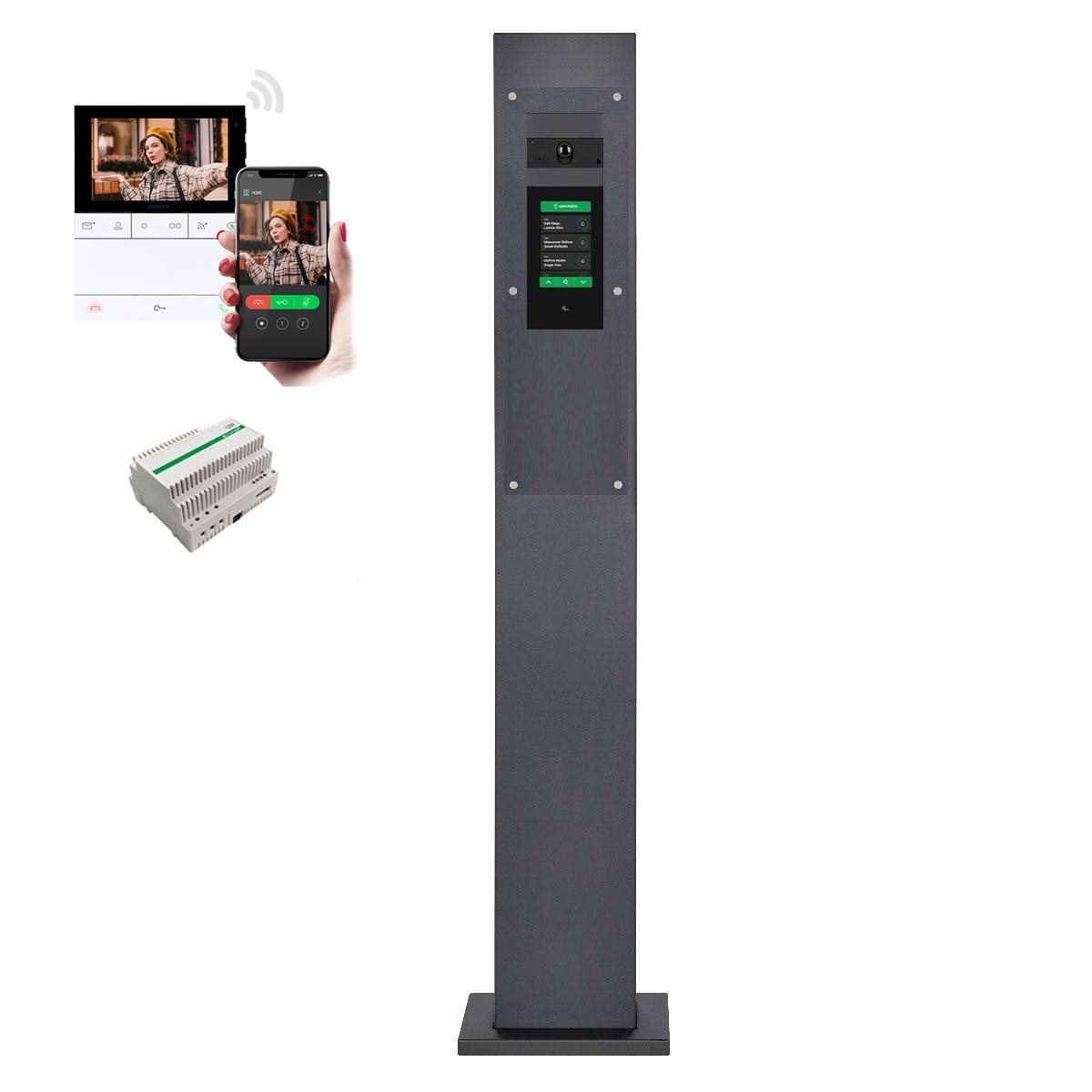

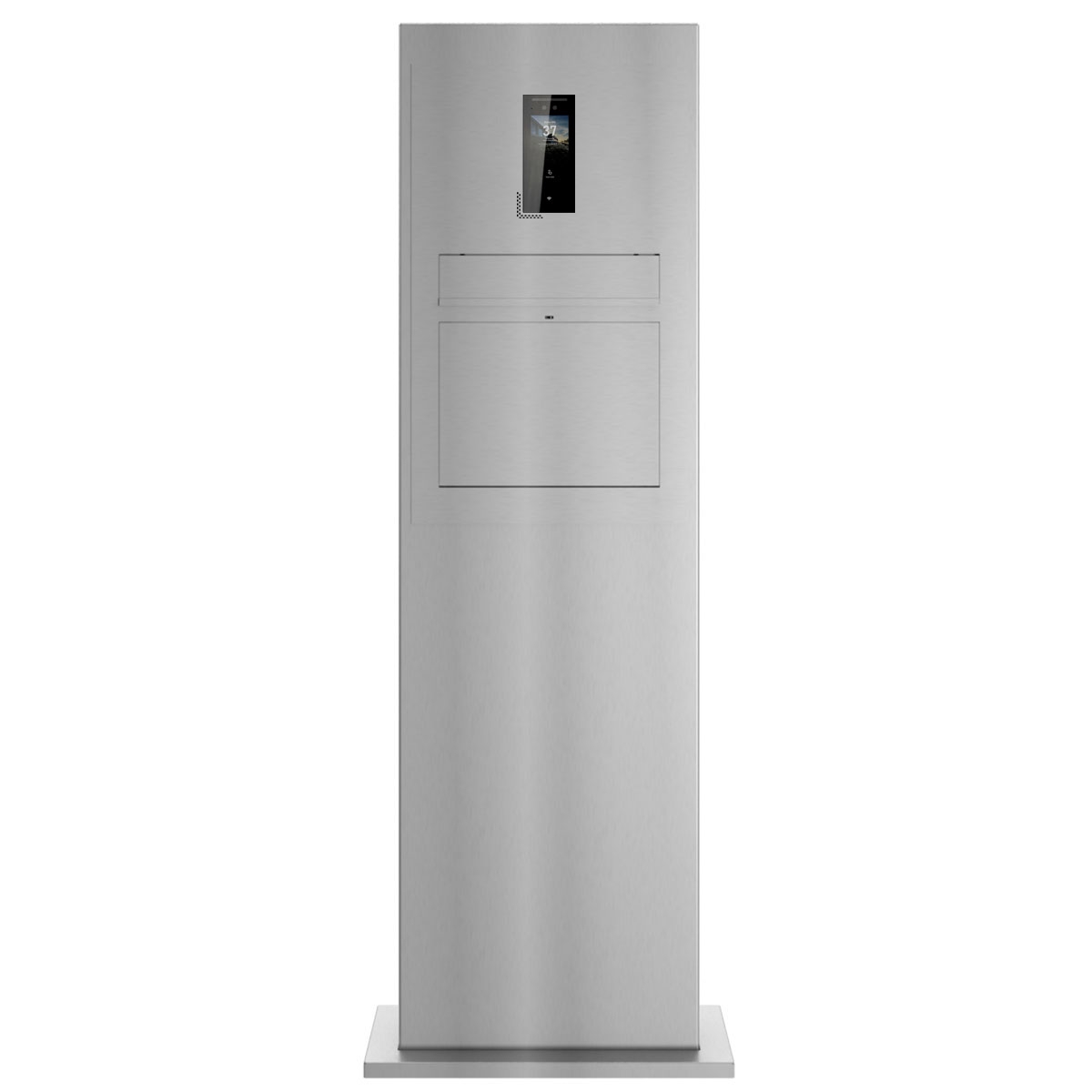

Stainless steel video doorbell pedestal designer - RAL of your choice - COMELIT Ultra Touch - complete set
The high-quality video doorbell pillar with COMELIT Ultra Touch touchscreen impresses with its modern technology, elegant appearance and maximum flexibility. Made entirely from powder-coated V2A stainless steel, it stands for durability, value and timeless design - Made by Briefkasten Manufaktur.

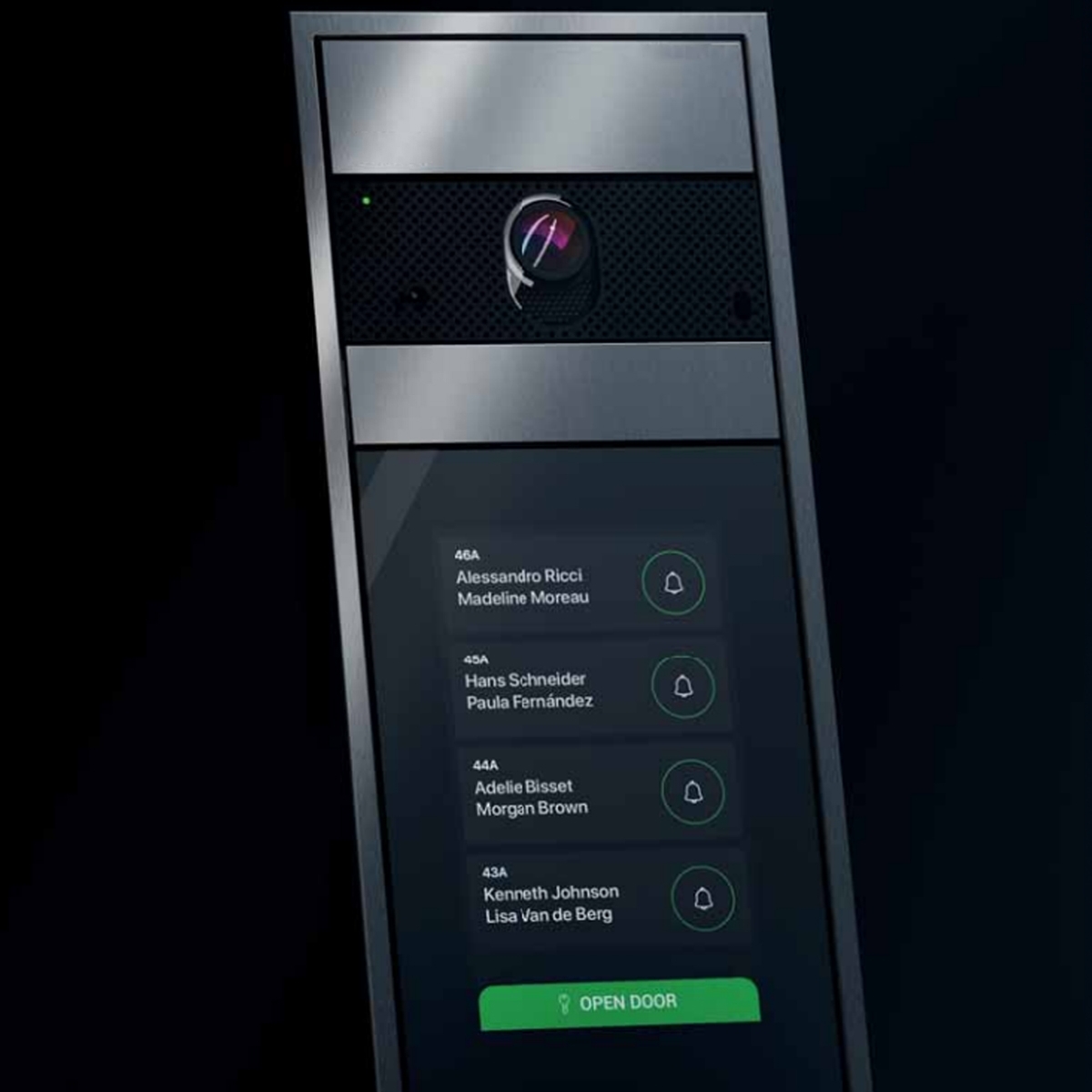

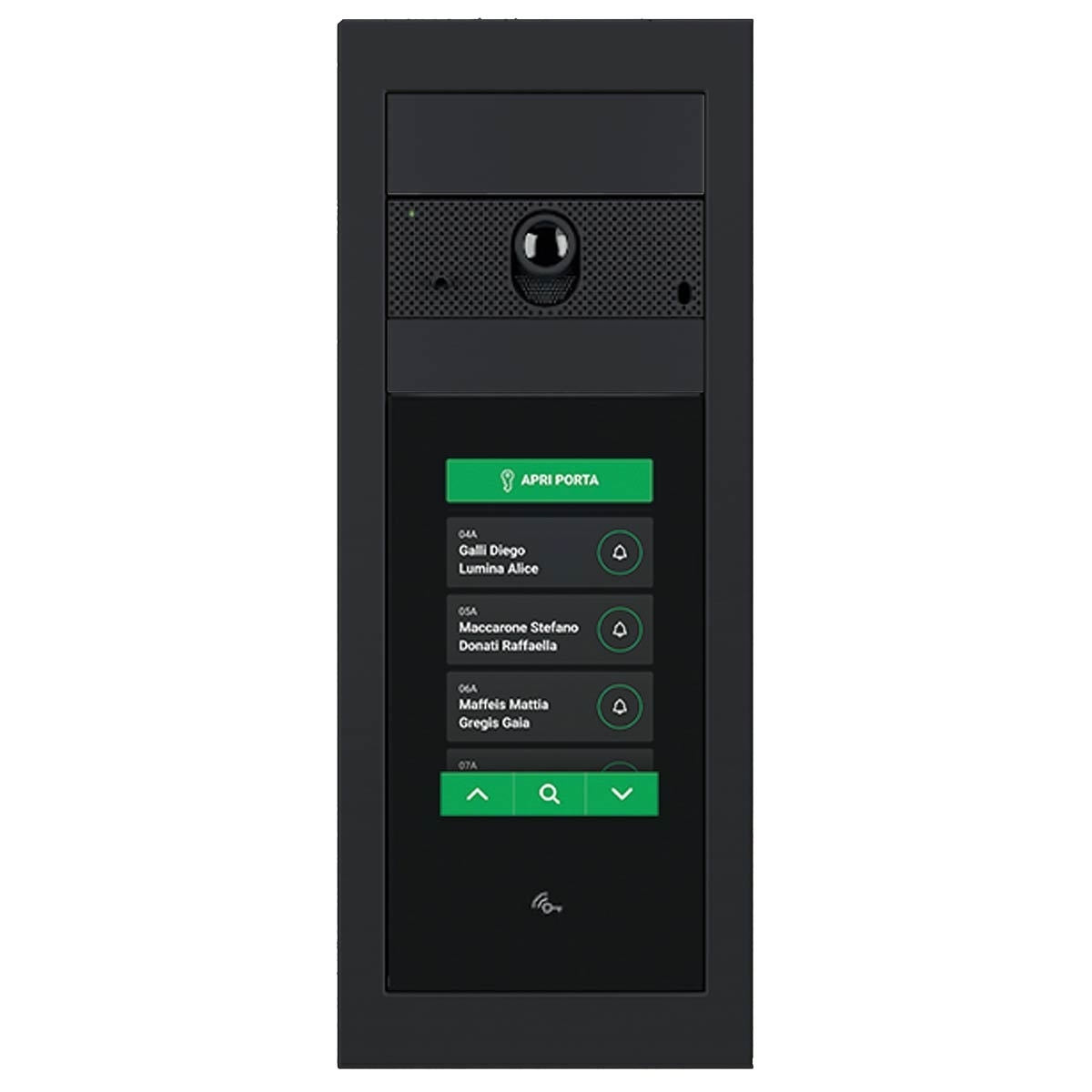

The flush-mounted, integrated 5-inch touch display with shatterproof glass forms the centrepiece of this innovative door station. It not only enables simple operation through intuitive user guidance, but also a wide range of customisation options: Whether company logo, welcome text or user-defined touch surfaces - the Ultra Touch offers almost unlimited customisation options. Visitors can gain direct access via touch panel, code module or RFID chip (COMELIT Fob). Thanks to the modern 2-wire technology, installation is quick, uncomplicated and requires no additional installation work - ideal for refurbishments and retrofits. Simply connect two existing wires and put the door station into operation. The integrated wide-angle camera (120° horizontal, 90° vertical) provides high-resolution images - supported by intelligent LED illumination with twilight sensor and infrared function, which ensures a clear view even in poor lighting conditions. The combination of digital microphone and hi-fi audio speakers guarantees excellent voice quality - even in the presence of ambient noise.
Equipped with Bluetooth Low Energy (BLE), the digital directory can be conveniently managed via the MyComelit app or the browser version - using a smartphone or PC, even wirelessly via Bluetooth. This enables particularly easy configuration on site, without opening the device or separate programming hardware. For additional flexibility in access control, the doorbell pillar offers a Wiegand output that can be used to integrate external systems from third-party providers. This makes the Ultra Touch a central component of your security and access solution.
Inside, the LS8741 home station impresses with its modern design and intuitive user interface. The system can be conveniently connected to the free COMELIT app via the integrated WiFi function. This not only allows you to receive video calls from the door station directly to your smartphone - no matter where you are - but also gives you access to live images from the cameras, stored video messages and allows you to open doors or gates remotely. Other smart functions such as face recognition and voice control via Amazon Alexa set new standards in intelligent home communication. Open your door without a key or app - just by looking at it. Integration is simple and requires no specialist knowledge.

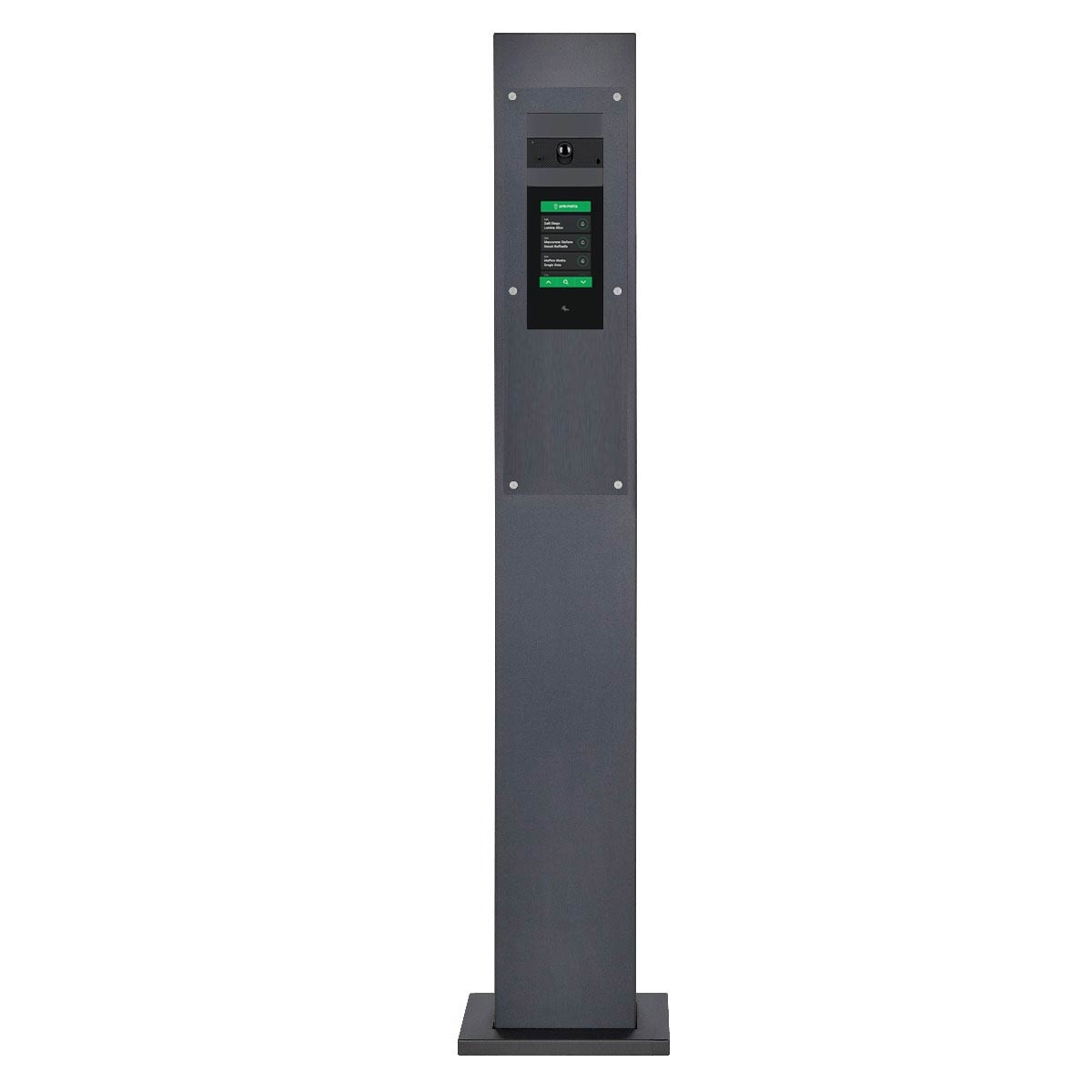

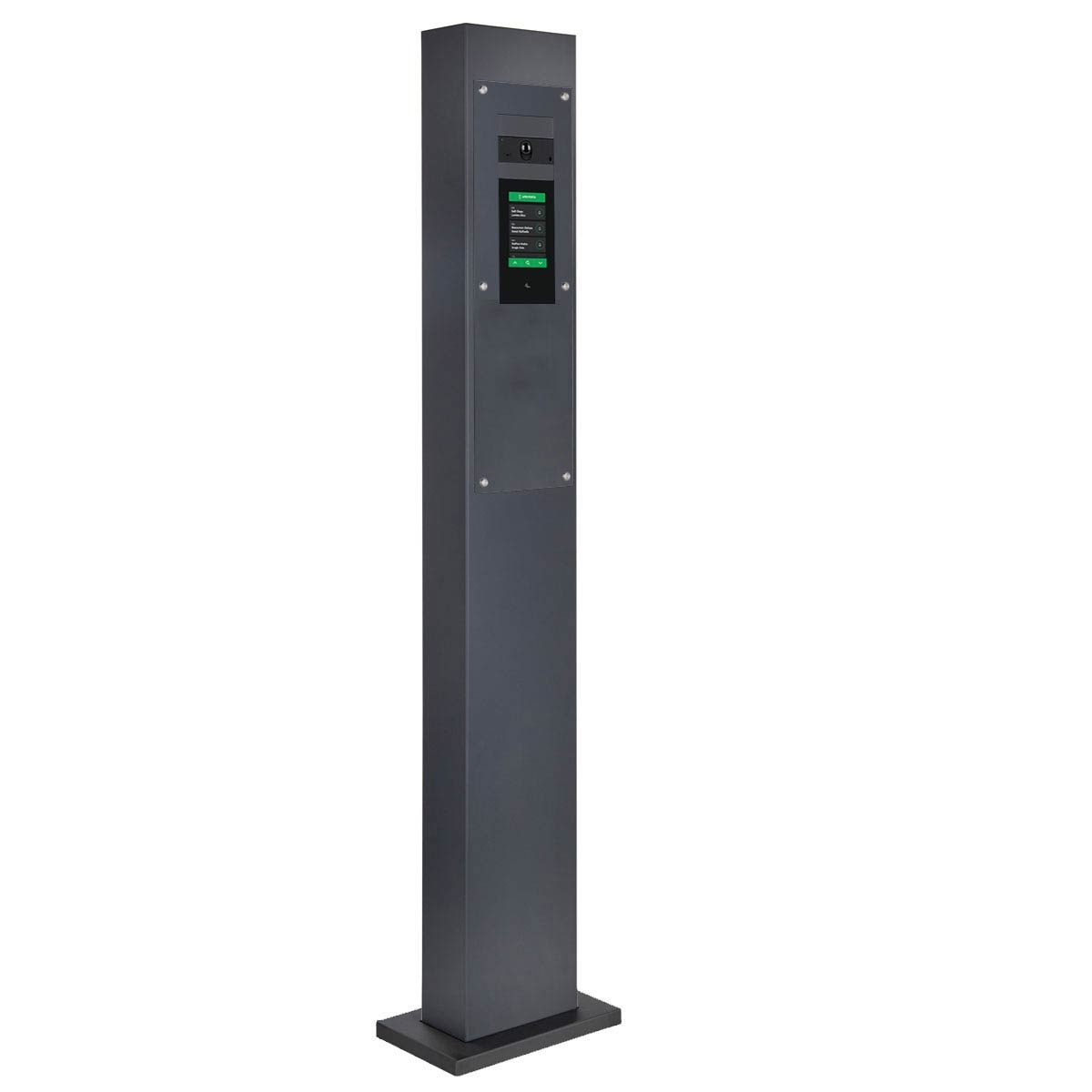

The pedestal is made of 1.5 mm thick stainless steel V2A, powder-coated in your preferred RAL colour on request, and is available in either 1300 mm or 1600 mm height. The welded construction stands on a solid VA base plate, which ensures maximum stability and a clear, minimalist look. Invisible cable routing is possible through the body. The high-quality cover plate, which conceals all fixing screws and emphasises the high-quality appearance, is part of the installation.
- Doorbell pillar made of 1.5 mm V2A stainless steel, powder-coated in RAL colour
- The speech part is made of 2 mm stainless steel V2A 1.4301, powder-coated in RAL colour. Dimensions: W 190 mm x H 640 mm x D 110 mm.

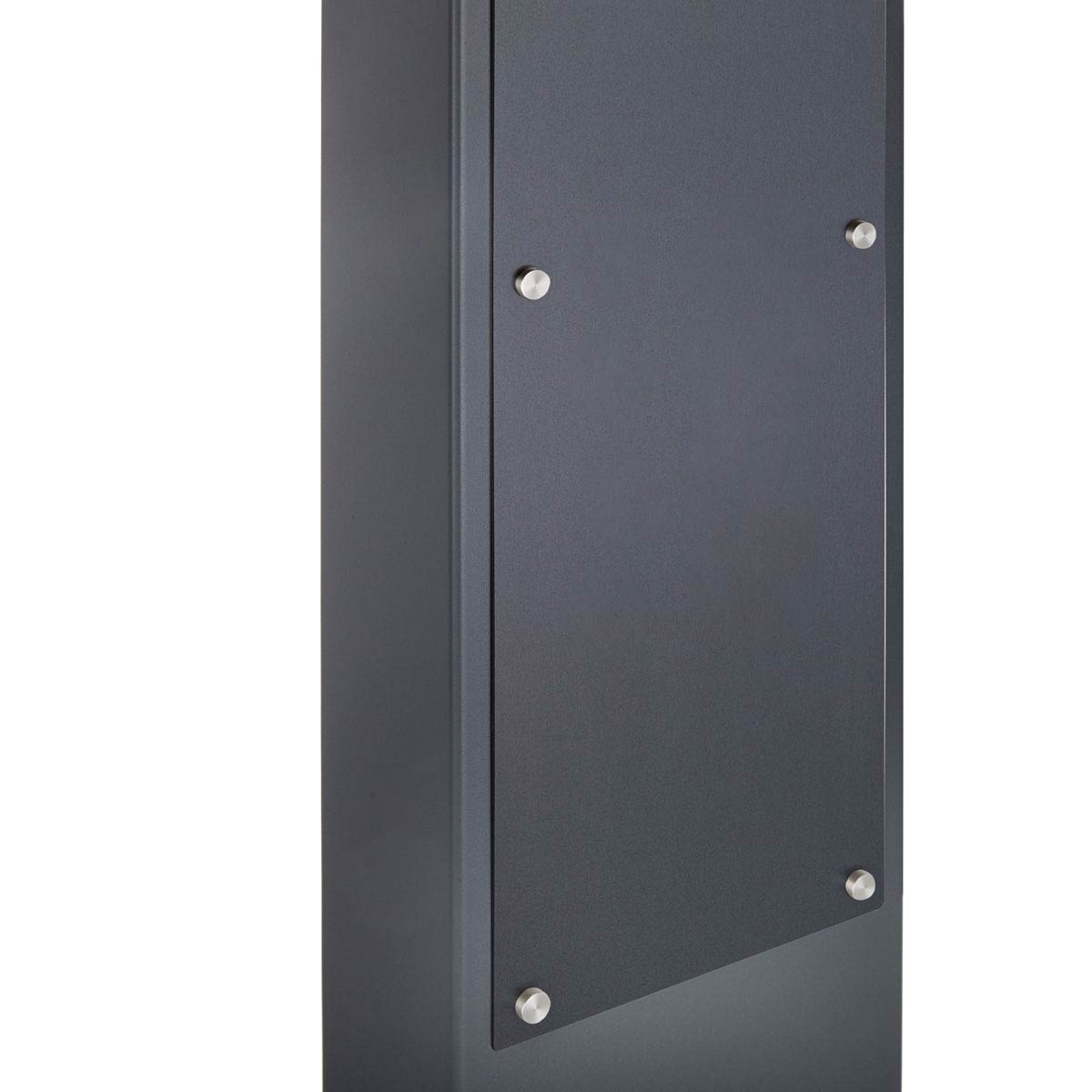

- Incl. 6x screw cover caps made of V2A stainless steel, polished so that the screws for fastening the front panel are not visible. See pictures.
- The fully welded pedestal is made of 1.5 mm V2A stainless steel, powder-coated. Construction height is either 1.30 m or 1.60 m.
- The pedestal is equipped with a VA base plate. This is 10 mm thick and is finished with a cover plate. See pictures.
- Invisible cable feed through the body is possible.
- Door station with audio/video unit and 5-inch touchscreen for up to 100 parties (more parties possible on request).
- 2-wire system, simply plug in 2 wires and get started.
- Touch module with Bluetooth connection for managing the directory via the MyComelit app or MyComelit browser version.
- Wiegand output for the interfaces of third-party access control systems.
- RFID reader
- Wide-angle camera (2-wire: H120° x V90° field of view) with high resolution.
- LED illumination of the camera and buttons with twilight sensor to save energy
- Omnidirectional digital microphone and two speakers for hi-fi audio.
- Additional visual and acoustic indicators for the disabled, adjustable in the programming.
- Programming of button addresses in smart mode.
- Protection class IP65 and IK08.
- Incl. LS8741 home station with mobile function and 1210A power supply unit.
Important information
Camera or intercom preparation
The intercom systems must be connected by an electrician. Please contact your trusted electrician for planning, fitting and installation.
Water protection
To achieve optimum water protection for your mail, the letterbox or letterbox system should be located under a canopy if possible.
The mail is only protected from water if it is fully inserted in the box and the flap is closed. Mail that is not fully inserted allows moisture and dirt to penetrate the letterbox. It is therefore necessary to plan sufficiently dimensioned letterboxes for the upcoming requirements. In certain extreme weather conditions, water can still enter (up to 1ccm according to DIN EN 13724). This is not a reason for complaint.
| Connection technology: | 2-wire |
|---|---|
| Material: | Stainless steel V2A 1.4301 |
| Number of bell push buttons: | up to 100 bell buttons |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de

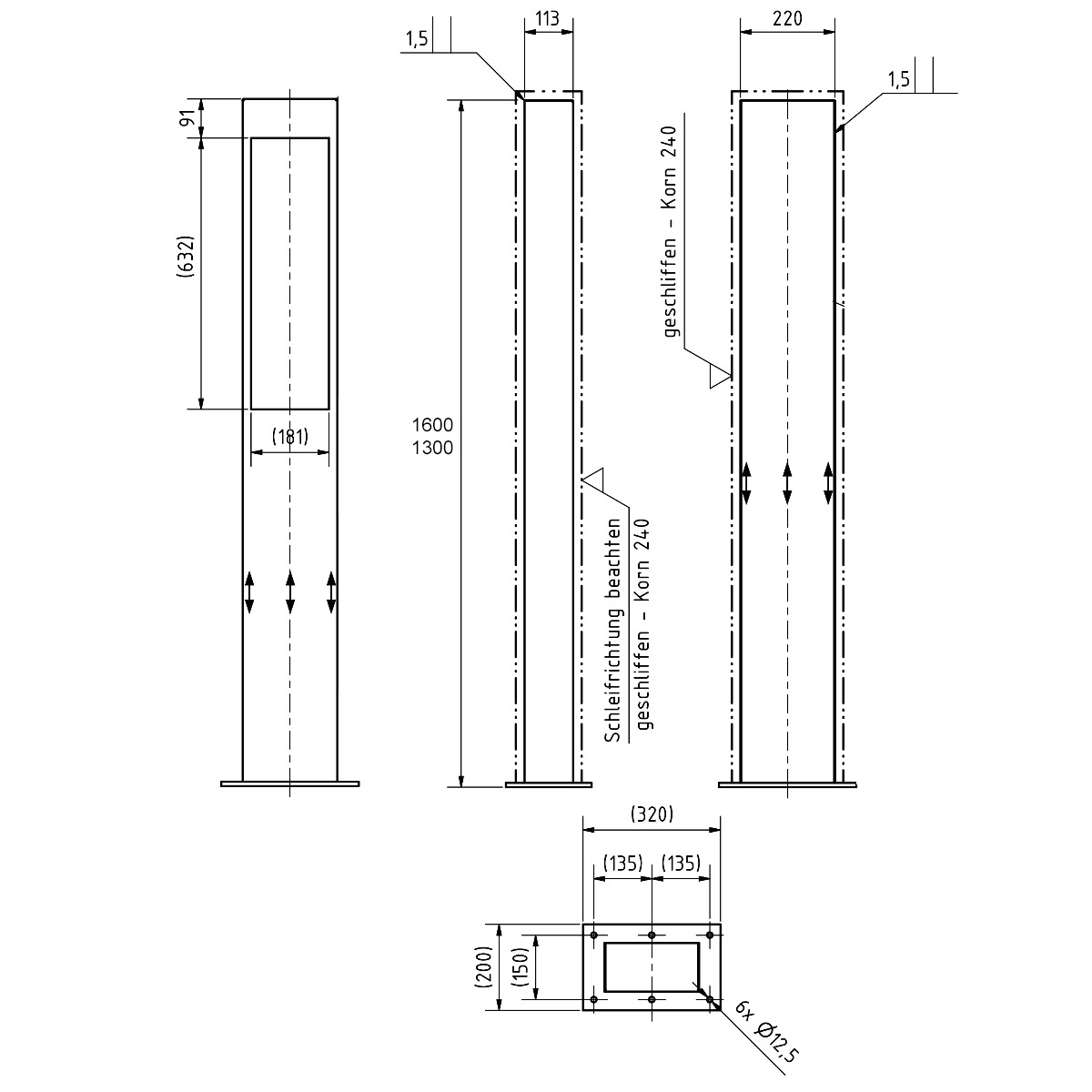

| Height of single box in mm: | 640,0 |
|---|---|
| Width of single box in mm: | 190,0 |
| Overall height in mm: | 1300,0 | 1600,0 |
| Total width in mm: | 220.0 (foot plate 320.0) |
| Depth in mm: | 110.0 (foot plate 210.0) |
| Weight in kg: | 40 |
| Delivery condition: | Delivery is assembled |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |

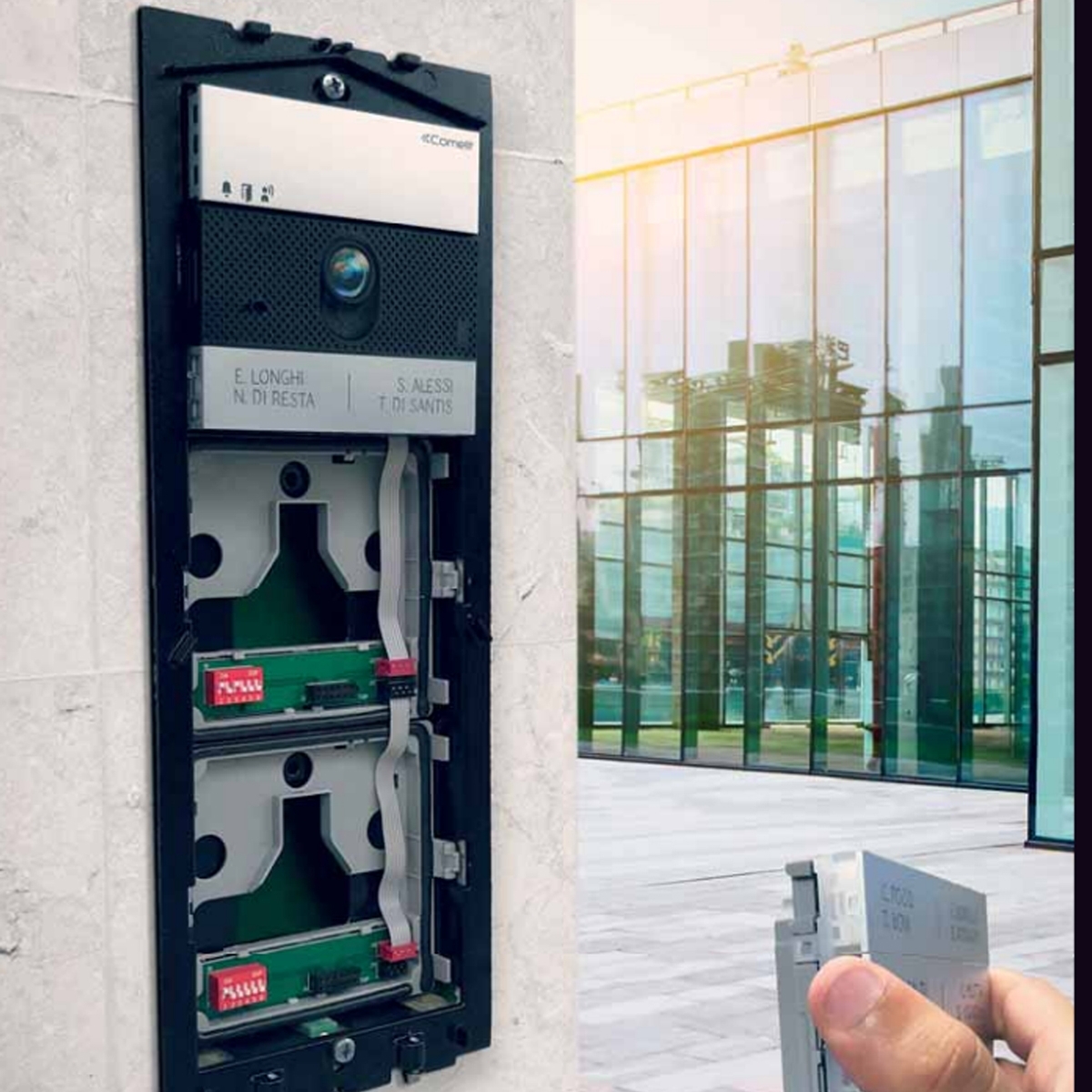

COMELIT Ultra
The complete solution for high-resolution video door communication
- High-resolution camera:
The integrated colour camera provides detailed video images in high resolution. Ideal for clear identification of visitors - even in changing light conditions. - Wide-angle lens:
Thanks to the large horizontal (2-wire 120°/ IP 160°) and vertical (90°) viewing angle, you keep the entrance area completely in view - without blind spots. - CMOS sensor with high light sensitivity:
The 1/3" CMOS sensor ensures stable image transmission even in low ambient light. Supported by automatic exposure and white balance. - Digital MEMS audio sensor & 28 mm speaker:
The integrated microphone (omnidirectional) in MEMS technology enables precise voice recording. The powerful speaker (4 Ohm, 2 W) ensures clear sound even in outdoor areas. - Full-duplex technology for real-time conversations:
Simultaneous speaking and listening without interruption - just like a natural telephone conversation. - Integrated volume control on the front:
The speaker volume can be conveniently adjusted directly on the front panel. - Barrier-free feedback:
Visual and acoustic signals (e.g. LED feedback) increase user-friendliness for people with disabilities. The signals are individually programmable. - Door opener function & relay output:
With integrated door opener output (3 A) as well as potential-free relay contact (C, NC, NO - loadable up to 10 A) for flexible activation of door or gate systems.
The Comelit video loudspeaker Ultra combines video surveillance, professional audio quality and simple operation in one high-quality module. Ideal for anyone who relies on reliable door communication and modern equipment - in apartment blocks, commercial properties or sophisticated residential complexes.
The highlights: Face recognition and voice control
With Comelit's innovative face recognition, you can open your front door at a glance - without a key, transponder or app operation. The function is available free of charge and increases the convenience and security of your home.
The app also offers integration with Amazon Alexa, allowing you to control your Comelit video door intercom system using voice commands - for example, to open the door or display the camera image. It can be set up in just a few steps, without any specialist knowledge.
The (video) intercom sets from COMELIT are available in two modern connection variants:2-wire technology and ViP (IP technology). Both systems impress with their high flexibility, simple installation and future-proof network integration.
2-wire technology - ideal for refurbishment and retrofitting
The 2-wire systems from COMELIT are simply connected via existing lines. This means that existing doorbell or intercom lines can continue to be used - without additional costs for laying new lines, plastering or painting work. Only two wires run from the power supply unit (power supply unit 1209 included) in the meter cupboard to the built-in loudspeaker or video loudspeaker in the function box of the letterbox system and two wires from the power supply unit to the home station in the flat or to the gateway in the distribution box. Allthat is required for the WiFi function of the home station is a WLAN within range. The gateway 1406A is connected to the Internet via the Ethernet port.
++ Ideal for remodelling and renovation, as existing doorbell lines are used
++ No additional work for plastering and painting
++ Low costs thanks to simple installation
++ Fast and secure commissioning
ViP system (IP technology) - maximum flexibility and integration
As an alternative to 2-wire technology, COMELIT offers ViP (Video over IP) technology, a modern, fully digital system based on Ethernet. This type of connection is ideal for new buildings, complex building structures or when seamless integration into existing network or building control systems is required.
All functions - from door communication and video surveillance to remote control - can be managed easily and securely via the local network or the Internet. Thanks to PoE (Power over Ethernet), a single network cable is sufficient for data transmission and power supply. The ViP systems are scalable, support a wide range of end devices and can be controlled with the COMELIT app via the smart gateway or the Wifi door station.
++ Ideal for new builds, larger systems and network integration
++ Simple expansion with additional door or indoor stations
++ PoE supply without separate power cable
++ Remote access via Internet or VPN
++ Maximum system flexibility thanks to IP standard
The COMELIT app functions
With the Comelit app, you can enjoy maximum convenience and flexibility in door communication. You can receive calls from the video door station anywhere - at home, in the garden, on the move or at work. The app connects your door intercom to your smartphone or tablet and enables intuitive, secure control of your entrance area.
The most important functions
- Receive calls anywhere: Receive visitor calls from your video door station - wherever you are.
- Internal communication: Make calls between the indoor stations connected to the system - just like with an intercom system.
- Video recordings: Missed calls are automatically recorded as video. You can also view live images from the cameras in your system.
- Access control: Open gates or doors directly via the app - conveniently with a tap, voice command or facial recognition.
- Automation: Activate automatic access functions to allow registered persons access - for example, by facial recognition at the door station.
- Energy efficiency through push notifications: The app is only activated when there is an incoming call. This significantly reduces battery and data consumption.
The Comelit app is available for both iOS and Android and is compatible with all current Comelit video door intercom systems.
EU-compliant: COMELIT as a guarantee for your data
There are several countries that have banned certain manufacturers of video surveillance systems from entering the market. These include the United States, which prohibits government contractors from procuring telecommunications or video surveillance equipment, systems, or services (or a major component thereof) manufactured or supplied by some of the largest manufacturers and their subsidiaries and affiliates through Section 889 of the John ____0__ National Defense Authorisation Act.
By choosing Comelit, you are choosing a private Italian company with no state involvement and no interest or obligation to transmit the data collected through our servers.
And COMELIT has even more to offer!
- the cloud server infrastructure belongs to COMELIT and is located in Europe (in Frankfurt, one of the most important financial centres in Europe and a major hub for the data centre industry) and is managed in partnership with the most important cloud provider in the world: Amazon AWS (Amazon Web Services).
- the components of Comelit products comply with the provisions of the NDAA and GDPR.
