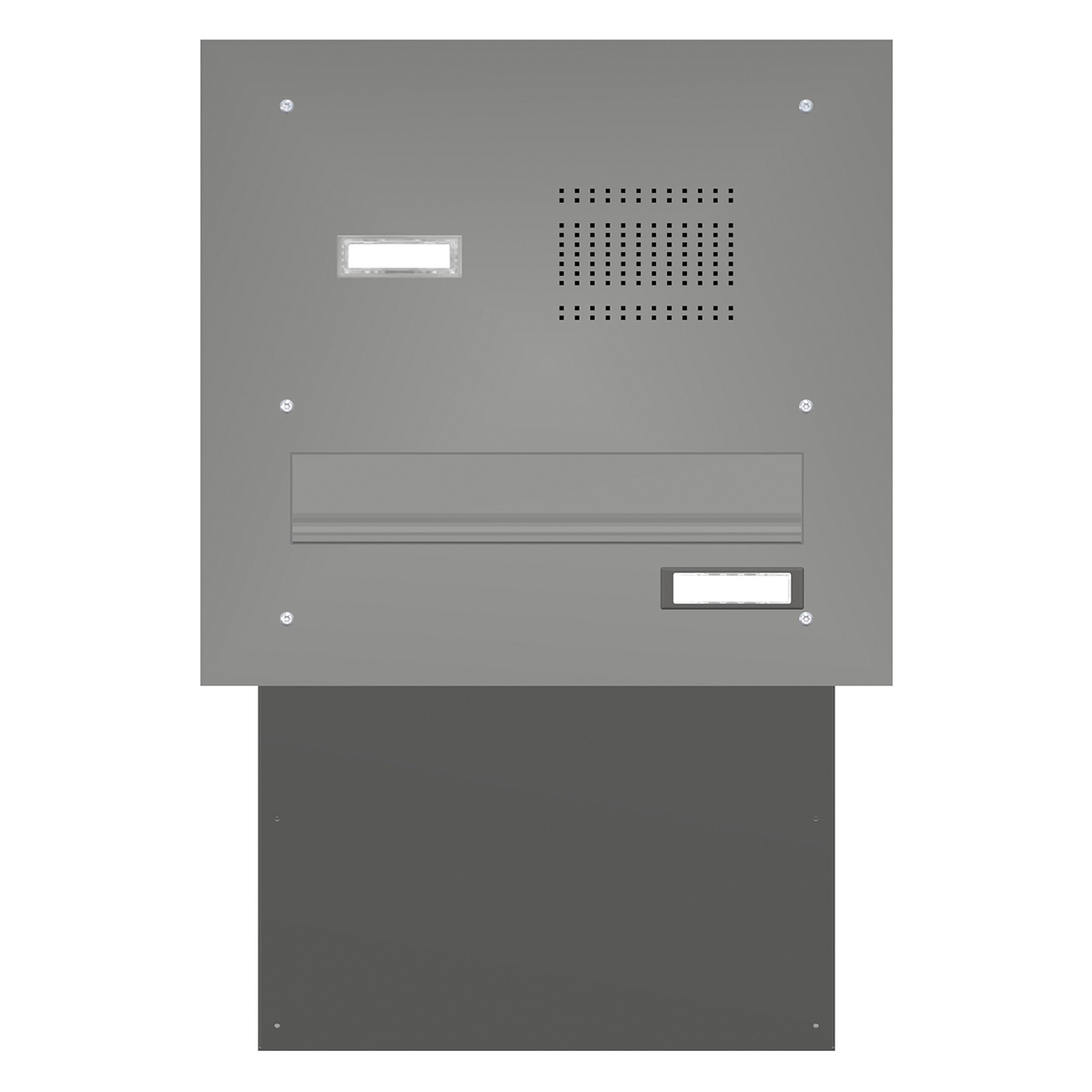

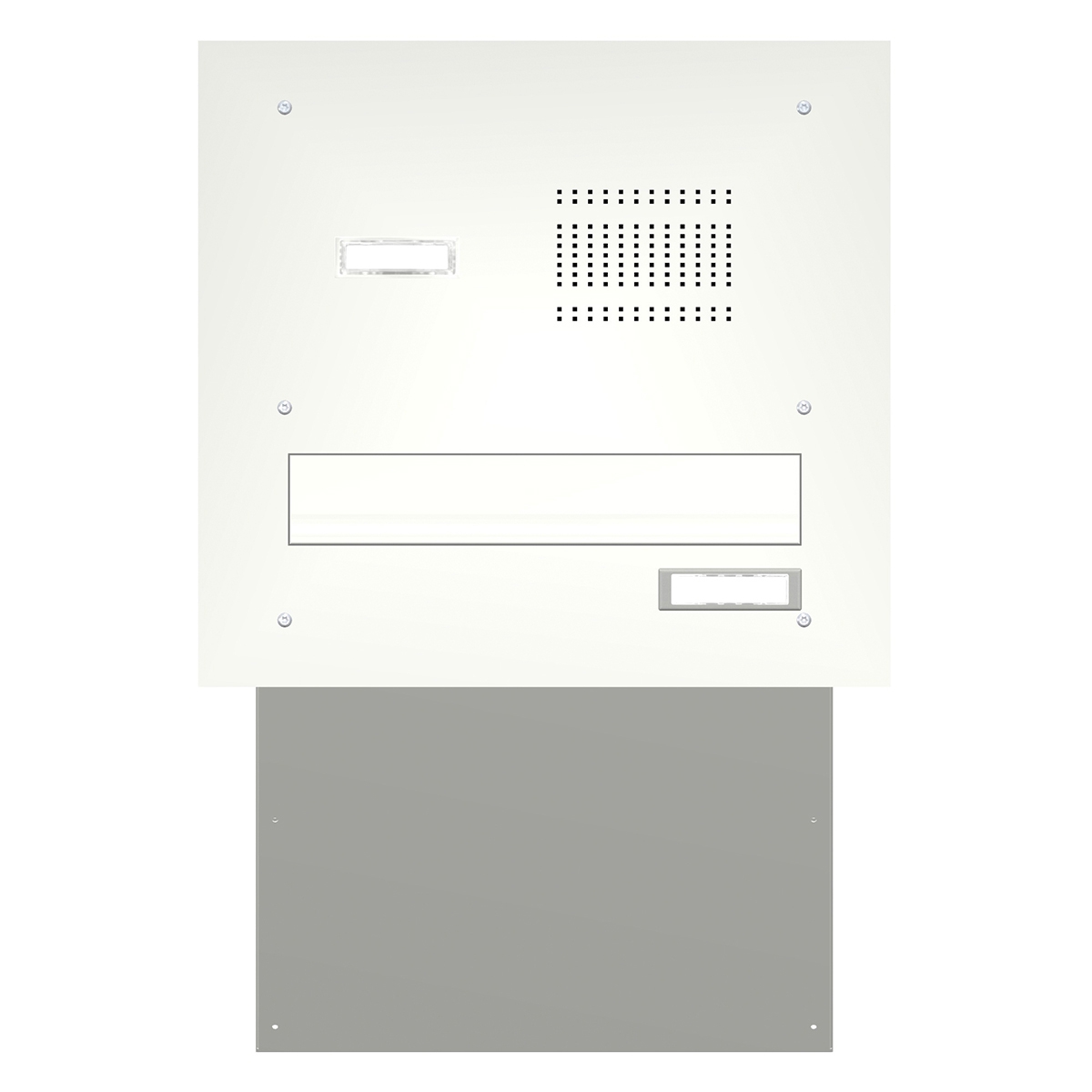

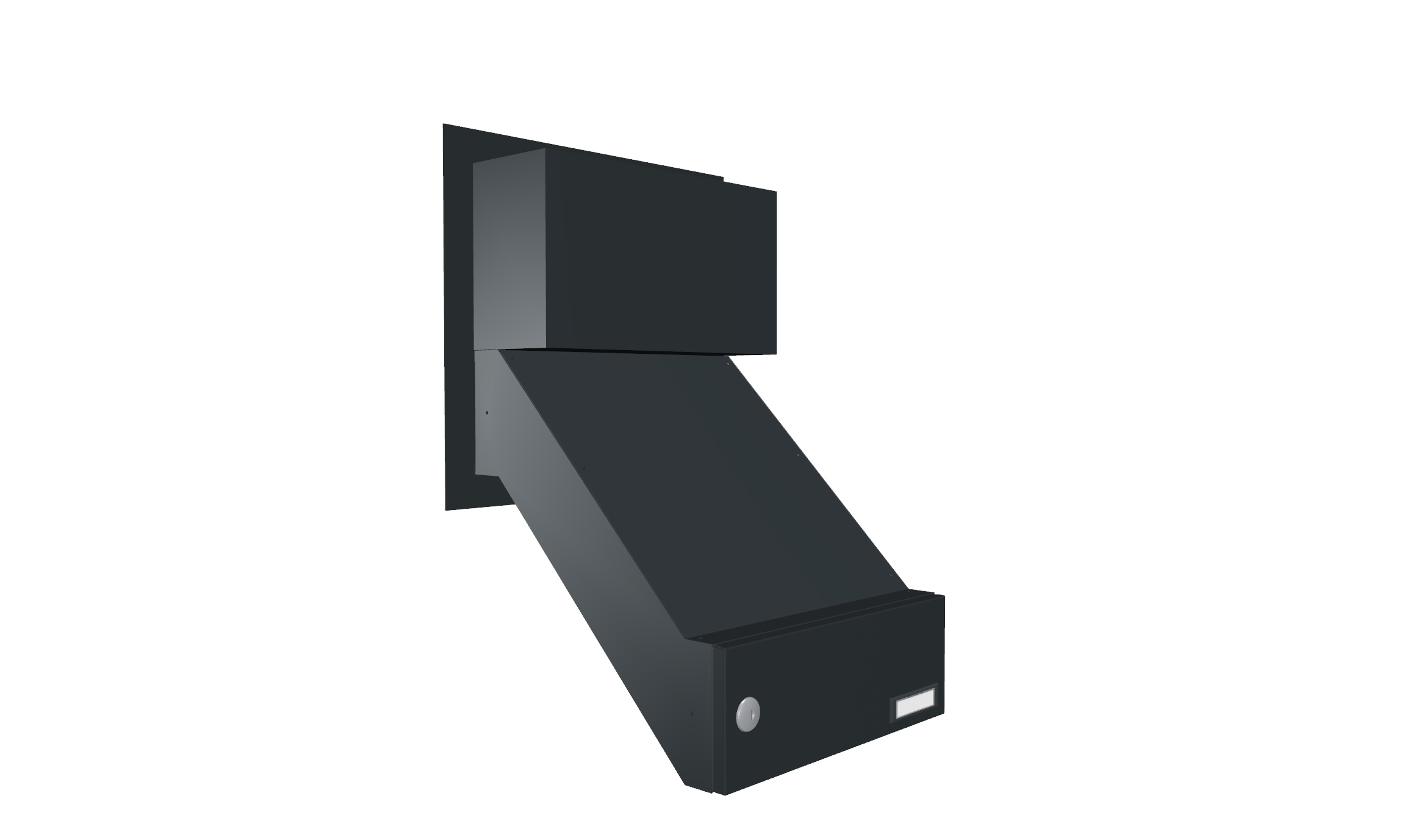

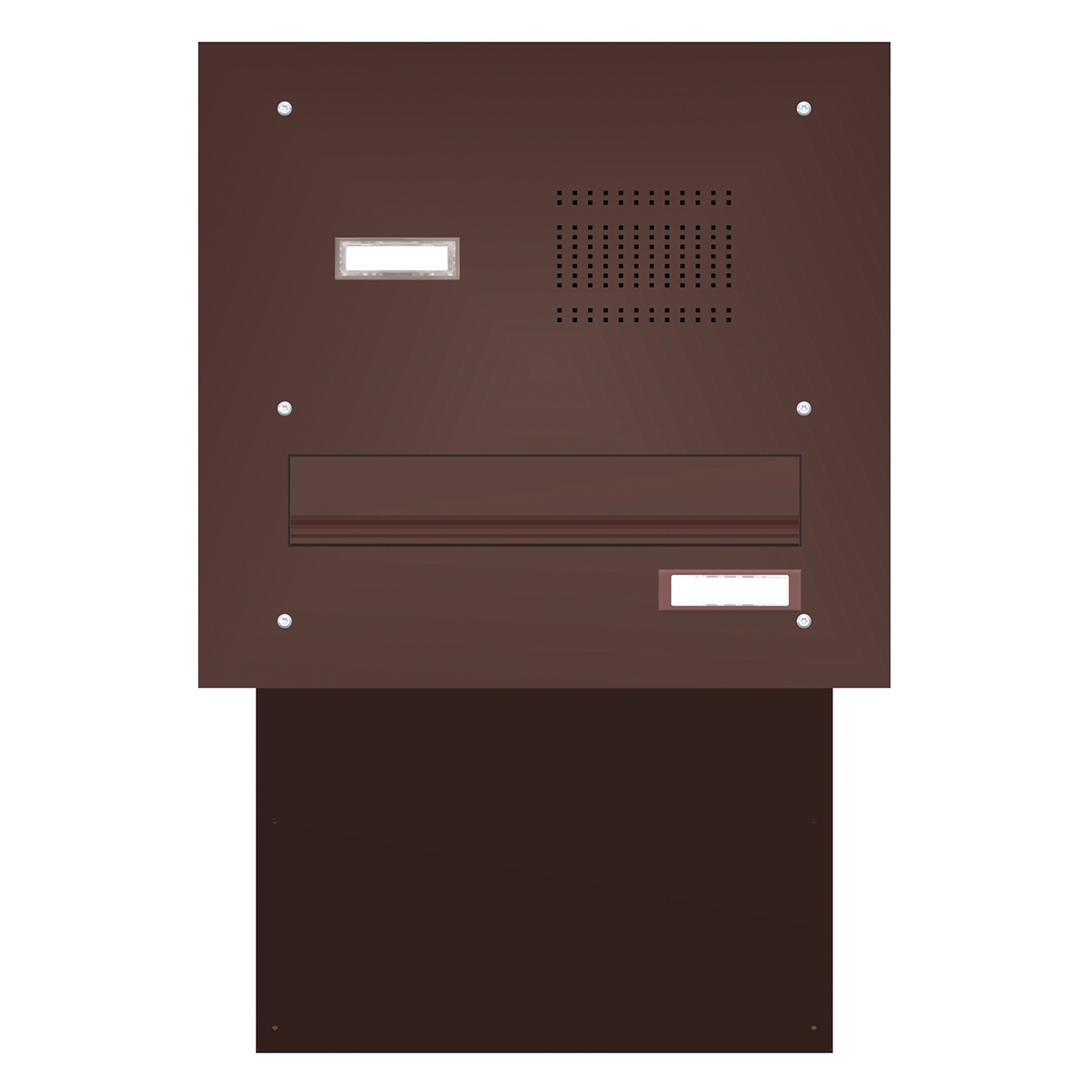

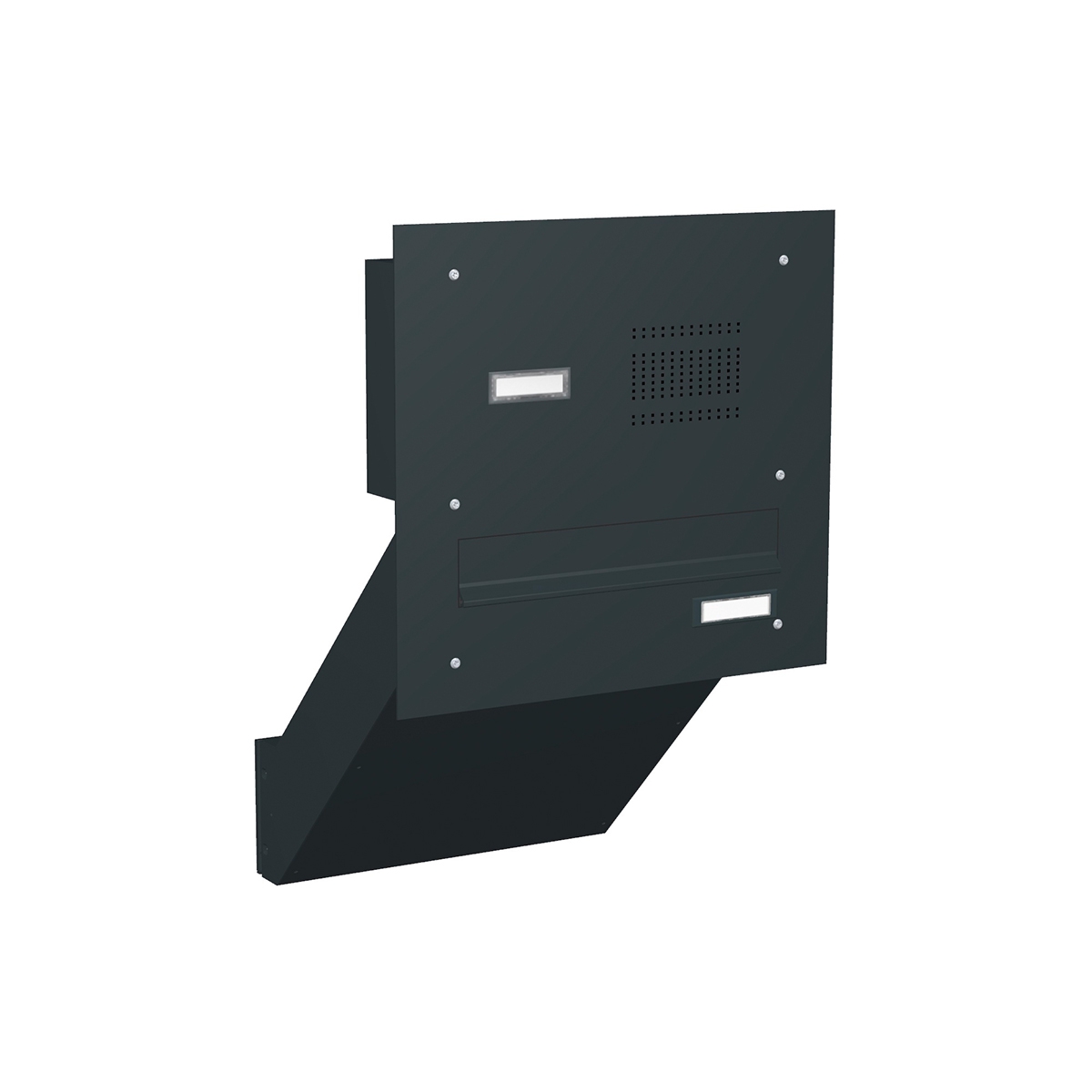

Through-the-wall letterbox system BASIC 623 powder-coated - Doorbell intercom - 1 party

Through-the-wall letterbox system BASIC 623 powder-coated - Doorbell intercom - 1 party

Article number: 623-RAL-1-RAL
Series: BASIC

Have you not found anything suitable? Configure your letterbox to meet your individual requirements!

Open the 3D configurator

Outstanding quality with a 5-year guarantee
10 years spare parts supply
100% UV and weather-resistant material
Particularly stable & durable for mail that is always dry
Description

Through-the-wall letterbox system BASIC 623 powder-coated - bell/intercom station - 1 party

The through-the-wall letterbox with bell intercom has plenty of space for receiving post and is variable in depth from 290 - 440 mm to optimally adapt to your wall thickness (30 degree angle running diagonally to the rear). Each individual letterbox has a size of 300 x 110 x 290 to 440 mm (WxHxD). The boxes comply with the current EN 13724 standard so that A4 envelopes, for example, can be inserted without being bent and protection against break-ins is guaranteed.

The great advantage of a wall-mounted letterbox system is that it is well protected from the weather and therefore very durable. Also well suited for installation in wall pillars. A quality product made in Germany.

  • Through-the-wall letterbox system made of galvanised sheet steel, powder-coated.
  • German quality production "Made in Germany".
  • Inclined, pull-out box and front panel without end frame (for an even look without interruptions).
  • Variable depth from 290mm - 440mm, 30 degree angle running diagonally to the rear.
  • The letterbox complies with DIN/EN 13724. Insertion size (3.5 cm x 26.5 cm) for C4 high, large letters also fit in here without creasing.
  • Insertion flaps with sound-absorbing rubber seal for very quiet insertion of mail.
  • The removal door can be opened from left to right.
  • Incl. 2 keys with key number & interchangeable name plate under the flap.
  • The lettering on the name plates can be changed as required
  • Letterbox system with perforated intercom screen and anti-vandalism bell push-button for each letterbox.
  • With universal adapter on the back for installing standard built-in loudspeakers.
  • Universal adapter for all commercially available built-in loudspeakers.
  • Installation instructions included.
Properties
Material: Steel, galvanised
Number of bell push buttons: 1 button
Number of boxes: with 1 letterbox
Removal of mail: On the back
Manufacturer

Briefkasten Manufaktur

Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
WEEE-Reg.-Nr. DE 24652177

Height of single box in mm: 110,0
Width of single box in mm: 300,0
Capacity in litres: 10,0 - 15,0
Height of letterbox slot in mm: 35,0
Width of letter slot in mm: 265,0
Depth in mm: 290,0 - 440,0
Weight in kg: 6
Shipping information: Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (e.g. stand mailboxes can be shipped separately).

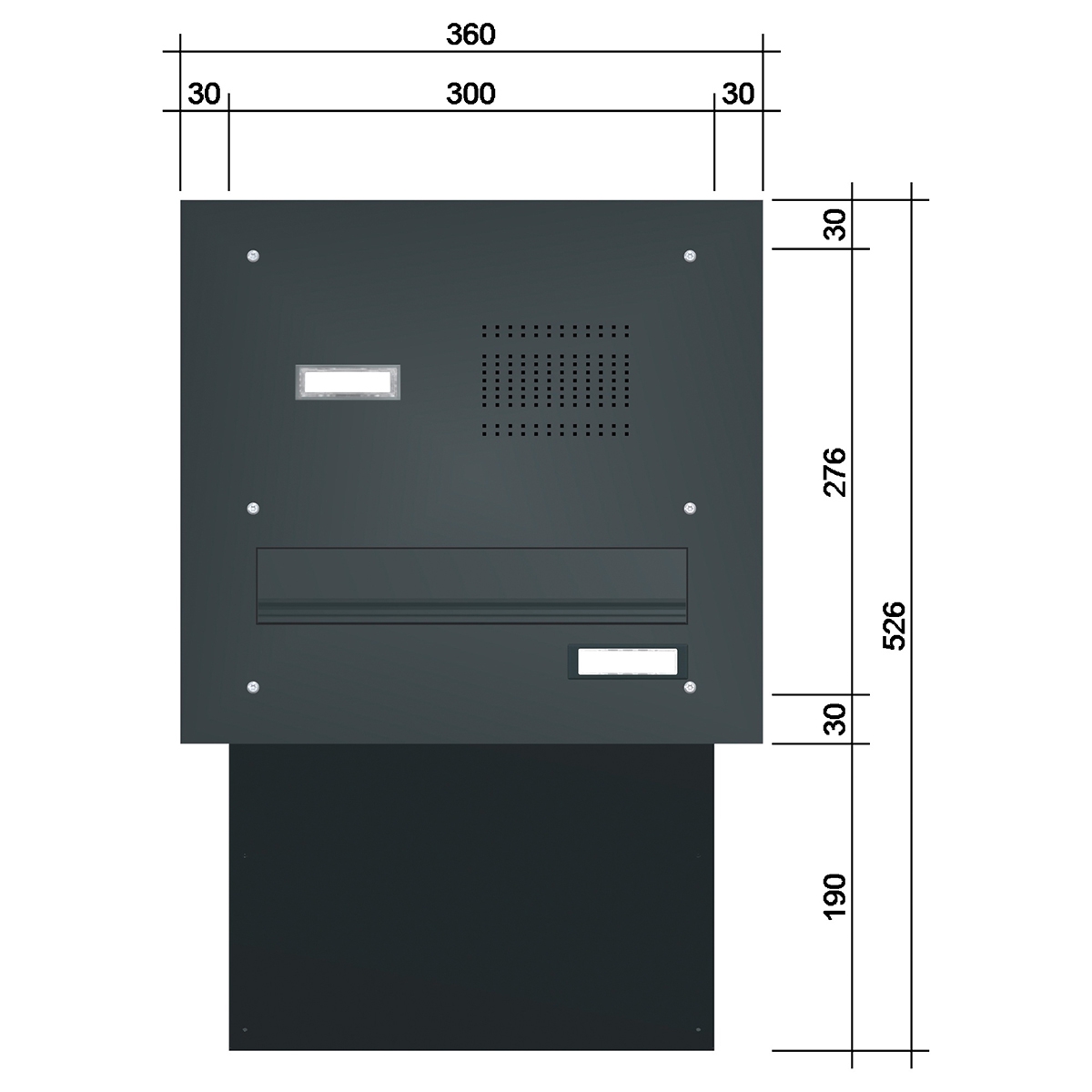

Abmessungen
Reviews 0

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.

Excellent

Very good

Good

Acceptable

Unsatisfactory

Please enter at least 5 characters.
Please enter at least 40 characters.
(Maximum number of files:3, Maximum file size (in MB):16, Allowed file extensions:jpeg;jpg;png;webp)
No files selected

Similar products

Spare parts

Configurator
Silberfarbener Ersatz- oder Zusatzschlüssel der Serie BASIC Standard (KBxxx) mit Schlüsselring auf weißem Hintergrund, passend für ausgewählte Briefkastenschlösser von Briefkasten Manufaktur.

Average rating of 5 out of 5 stars

More varieties

🎨 COLOUR CHOICE
Configurator
Mauerdurchwurf-Briefkasten BASIC 622 für 2 Parteien in Anthrazitgrau: pulverbeschichtete Front mit zwei übereinander angeordneten Einwurfklappen und zwei Namensschildern rechts darunter.
Through-the-wall letterbox BASIC 622 powder-coated - 2 parties
Colour: 🎨 Colour of your choice Finish: with 2 letterboxes (1x2)

From €579.00

Accessories

Configurator
Rückseite des selbstklebenden Trägerblechs für das flächenbündige Namensschild am BASIC Briefkasten, mit dunkelgrauer Mittelfläche und umlaufenden roten 3M-Klebestreifen.

Average rating of 4 out of 5 stars

Configurator
GIRA Audio-Sprechanlagen-Set für 1–14 Teilnehmer mit dunkelgrauem Einbaulautsprecher, Steuergerät Audio REG und weißer Aufputz-Wohnungsstation mit vier Bedientasten.
GIRA intercom set for 1–14 participants
Units: 1 item

From €449.00
Frontansicht der Gira Wohnungsstation AP 125003 in Reinweiß glänzend mit Lautsprecheröffnungen und vier Bedientasten für Sprechen, Türöffnen, Licht und Rufabschaltung.
Gira surface-mounted home station pure white glossy 125003
Colour: Pure white, glossy

Regular price: €104.00
Made in Germany since 2003

Briefkasten Manufaktur: designed, manufactured and supported in Bad Salzuflen

A mailbox or mailbox system should not only fit on the day it is installed. That is why we combine product development, metalworking, installation and service with manufacturing that allows many individual adaptations.

The Briefkasten Manufaktur has been family-run since 2003. A large proportion of our products is produced by hand in Bad Salzuflen, supported by modern manufacturing technology. This keeps planning, production and points of contact close together – from the first product comparison to spare parts or a later extension.

Manufacture of a mailbox system at the Briefkasten Manufaktur in Bad Salzuflen
Manufacturing in Bad Salzuflen Product expertise, metalworking and installation remain closely linked.
Not just selling, but developing in-house

Product development and manufacturing are closely linked

Manufacturing includes, among other processes, laser cutting, press braking, welding, laser marking, powder coating and assembly of modules. The short distance is particularly important to you: questions about dimensions, construction, labelling or technical integration can be addressed directly with the product knowledge from development and production.

Especially with mailbox systems, bespoke sizes and entrance systems, careful planning helps to avoid later compromises in installation, appearance and operation.

Matched to the building rather than off-the-shelf standard

Colours, labelling and fittings tailored to the project

Many of our mailboxes and mailbox systems can be configured in numerous RAL colours. Depending on the series, different dimensions, numbers of boxes, labellings, house numbers, newspaper compartments as well as doorbell and door communication modules are also possible.

Which options are available depends on the specific product. For requirements outside the offered configuration, we review bespoke requests on a project basis.

Selection of different RAL colours for mailboxes and mailbox systems
Colour as part of the architecture Mailbox, front door, façade and entrance technology can be coordinated with each other depending on the model.
What matters after purchase

Planning, service and preservation of value go hand in hand for us

A good entrance solution does not end with the order. Clear planning, reachable contacts and available spare parts help to make sensible long-term use of the system.

Planning before production

For project-specific systems, drawings and coordination can help to define dimensions, arrangement and special requests clearly before production begins.

Service even after purchase

For questions about variants, installation or later changes, our team in Bad Salzuflen is available as a direct point of contact.

Spare parts instead of complete replacement

Locks, nameplates and other components should not automatically make replacement of the entire system necessary.

Assess bespoke solutions

If a standard version does not suit the building, we examine on a project basis which adjustments are technically and aesthetically feasible.

BASIC briefly explained

Frequently asked questions about the BASIC mailbox series

BASIC is designed for a wide selection of designs, sizes and fittings. Which combination is available always depends on the specific product.

What characterises the BASIC mailbox series?

BASIC combines a solid, everyday-suitable construction with a wide range of variants. The series is particularly suitable when the number of households, mounting type, colour and fittings are to be chosen to match the building without unnecessary planning complexity.

Is BASIC suitable as a mailbox system for an apartment building?

Yes. Depending on the model, BASIC offers systems for a small or large number of households and is therefore particularly interesting for apartment blocks, rental properties and multi-unit buildings. Decisive factors are the required number of boxes, the expected post volume and the available installation space.

What mounting types are available with BASIC?

The BASIC product family includes, depending on the model, surface-mounted, flush-mounted, free-standing, through-wall and fence solutions. This allows the mailbox system to be planned for wall, property boundary or building envelope to suit the installation situation.

Which colours, materials and mailbox sizes are available?

Depending on the BASIC model, powder-coated galvanised steel, stainless steel and various RAL colours are available. Box dimensions and volumes also differ. Therefore, when choosing, always check the specific compartment size and the expected post volume in addition to the appearance.

Can BASIC be combined with doorbell, intercom, camera or parcel compartment?

Selected BASIC versions can include doorbell and light buttons, intercom stations, camera preparations, parcel compartments, newspaper shelves or other functional modules. Which technology can be integrated or prepared depends on the respective model.

Do BASIC mailboxes comply with DIN EN 13724?

Conformity to the standard is product-specific. Many BASIC mailboxes are declared accordingly; the decisive information is on the respective product page. There you will also find insertion size, compartment dimensions and further technical data for the specific version.

Which locking systems and spare parts are available for BASIC?

Depending on the product, classic mailbox locks and selected digital solutions are available. For many typical wear and replaceable parts such as locks or nameplates there are matching spare parts; Briefkasten Manufaktur specifies a ten-year spare parts availability for its products.
