Can't find anything suitable? Configure your letterbox individually!

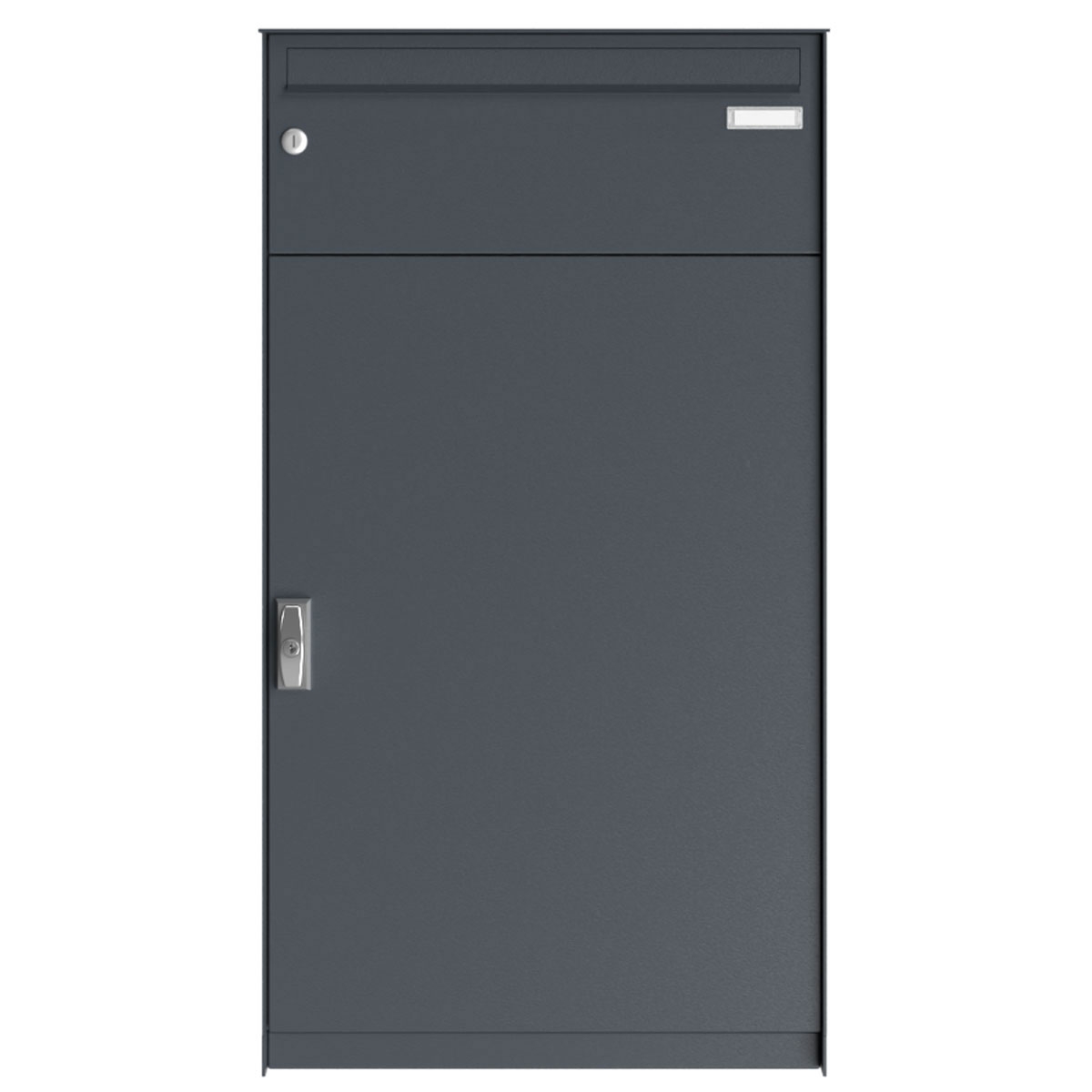

XXL parcel compartment system BASIC Plus 863X STL with parcel compartment 550x770 and letterbox 550x220 - colour of your choice
The BASIC Plus parcel and letter box system with XXL parcel compartment from Briefkasten Manufaktur is the ideal solution for the convenient and secure receipt of mail and large parcels - around the clock, protected from the weather and independent of the deliverer. Developed for use in detached houses, office buildings and public facilities, the system impresses with its clear lines, modular design and durable materials of uncompromising quality.
A particular highlight is the generous XXL parcel compartment with a volume of 161 litres. Measuring 550 x 770 x 380 mm (WD), it offers sufficient space for particularly large parcel consignments up to a maximum size of 520 x 730 x 350 mm. The practical push lock with mechanical parcel lock enables delivery without the need for a delivery person: the parcel compartment is simply filled by the delivery person and securely locked by pressing it shut - without any electronics or app. Removal is carried out by the authorised user using a key.
The letterboxes themselves measure 550 x 220 x 380 mm (WD) and are designed for convenient mail removal from the front. The door opens from left to right. Insertion openings in C4 format (crosswise from the front) ensure that even large letters can be delivered securely and without creasing. It goes without saying that the system conforms to DIN EN 13724.
Each BASIC Plus system is supplied powder-coated in the colour of your choice - for perfect integration into any architectural environment, whether new or existing. The side panelling fits snugly and has an integrated rain edge that protrudes forwards. The roof panel is made of 3 mm aluminium, the rear panel of 1 mm stainless steel (V2A 1.4301), both also powder-coated. The stable base made of 40 x 40 x 2 mm stainless steel tube (V2A) guarantees secure installation - thanks to concealed screw fittings, the design remains clear and elegant.
The BASIC Plus collection stands for particularly high product quality "Made in Germany". All components were developed by our own engineers with modularity, ease of repair and self-assembly in mind. Spare parts are permanently available - a decisive advantage for long-lasting use and sustainable investment. Choose the BASIC Plus parcel and letter box system for an elegant, robust solution that is suitable for everyday use and meets the requirements of modern parcel and letter reception in every respect - manufactured with care and precision in the letter box factory in Bad Salzuflen.
- XXL parcel letter box made of galvanised steel, powder-coated in the colour of your choice.
- Parcel compartments 550x770x380 mm (WD) incl. parcel lock with push lock.
- Parcel compartment volume: 161 litres, max. Parcel dimensions: 520 x 730 x 350 mm (WD).
- Letterboxes 550x220x380 mm (WD). Removal from the front, the removal door can be opened from left to right.
- DIN EN 13724 compliant. C4 crosswise insertion from the front, even large letters fit in here without creasing.
- Includes 2 keys with key number per parcel box/mailbox and interchangeable name plate (type 2).
- Close-fitting side cladding with integrated rain edge projecting forwards, roof plate over side plates made of 3 mm aluminium, powder-coated.
- Rear panel made of 1 mm stainless steel 1.4301 V2A, powder-coated.
- Base made of 40x40x2mm stainless steel tube V2A 1.4301, powder-coated. Invisible fastening for screw mounting.
| Material: | Steel, galvanised |
|---|---|
| Number of boxes: | with 1 letterbox, with 1 parcel box |
| Removal of mail: | On the front |
Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de

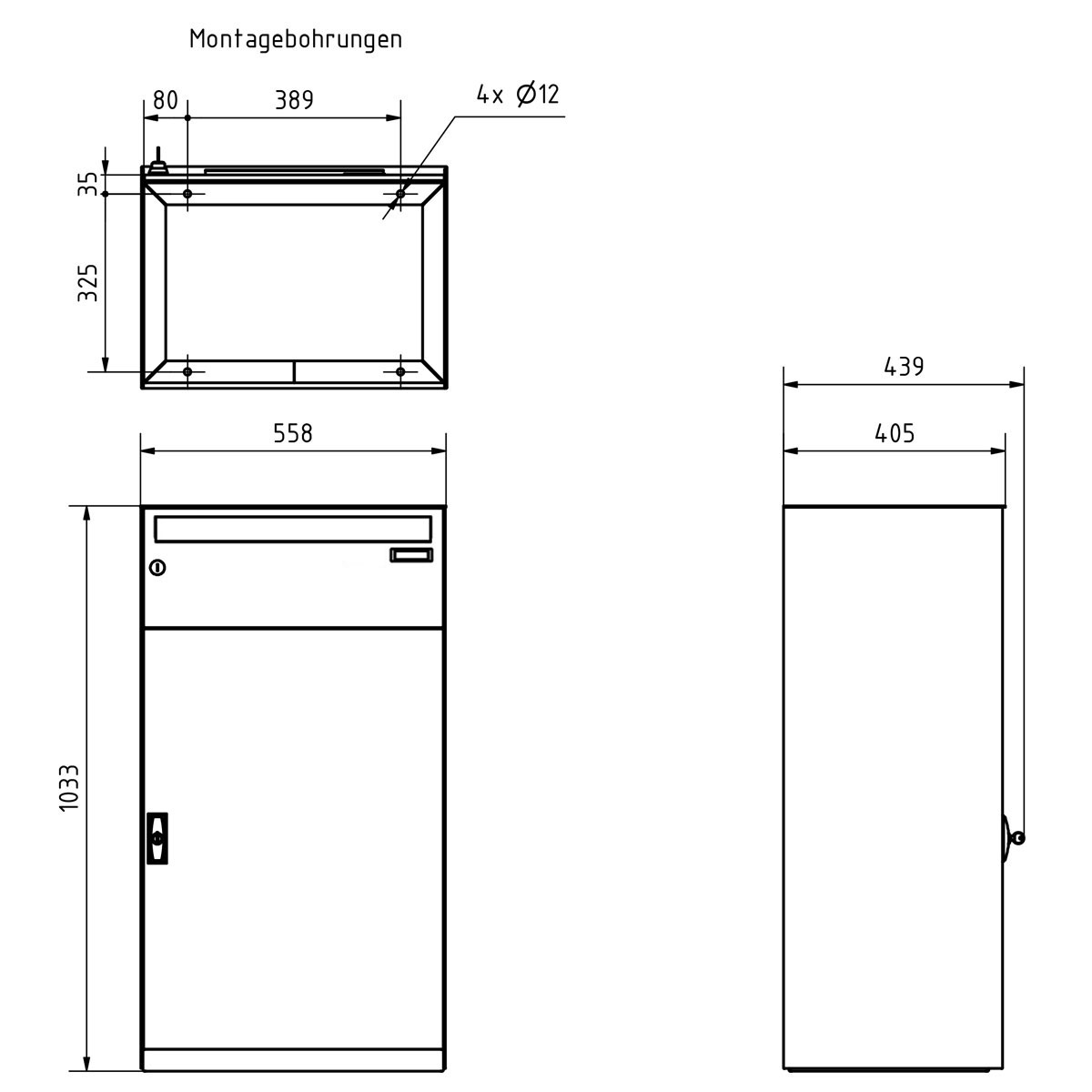

| Height of single box in mm: | Letterbox 220.0 | Parcel box 770.0 |
|---|---|
| Width of single box in mm: | 550,0 |
| Capacity in litres: | Letterbox 46.0 | Parcel box 161.0 |
| Height of letterbox slot in mm: | 35,0 |
| Width of letter slot in mm: | 325,0 |
| Overall height in mm: | 1032,0 |
| Total width in mm: | 559,0 |
| Depth in mm: | 380.0 with rain roof 415.0 |
| Weight in kg: | 25 |
| Delivery condition: | Supplied fully assembled |
| Shipping information: | Delivery by haulage company on a one-way pallet. Before delivery, the forwarding agent will contact you by telephone to arrange an appointment. |
The mechanical parcel lock with T-handle
The parcel compartment with parcel lock is ideal for receiving particularly large parcels. Here, the lock is open until a delivery person inserts the parcel and closes the lock. The parcel is now secured and can be removed by the occupants by unlocking the lock. The lock now remains open so that the next delivery person can insert your parcel. This mechanism allows for very large parcel boxes and is particularly suitable for large but few (usually 1 parcel per day) parcel consignments.
