Video door station DIVISION 530S - polished stainless steel - Comelit Ultra VIDEO Set

Video door station DIVISION 530S - polished stainless steel - Comelit Ultra VIDEO Set

Article number: 530S-VA-KSCSWIFI-1
100% UV and weather-resistant material
3% discount for advance payment
10 years spare parts supply
Free delivery within Germany
Description

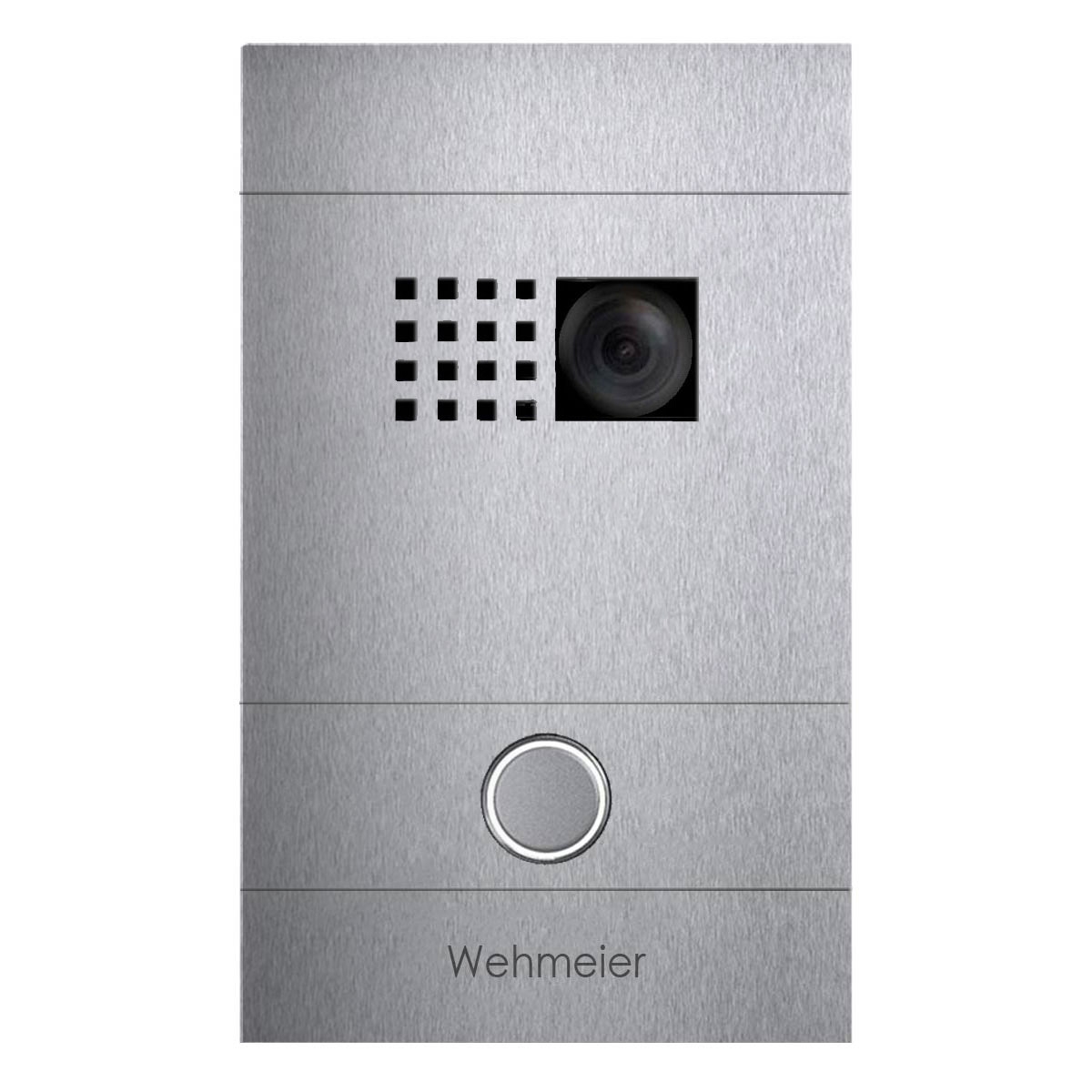

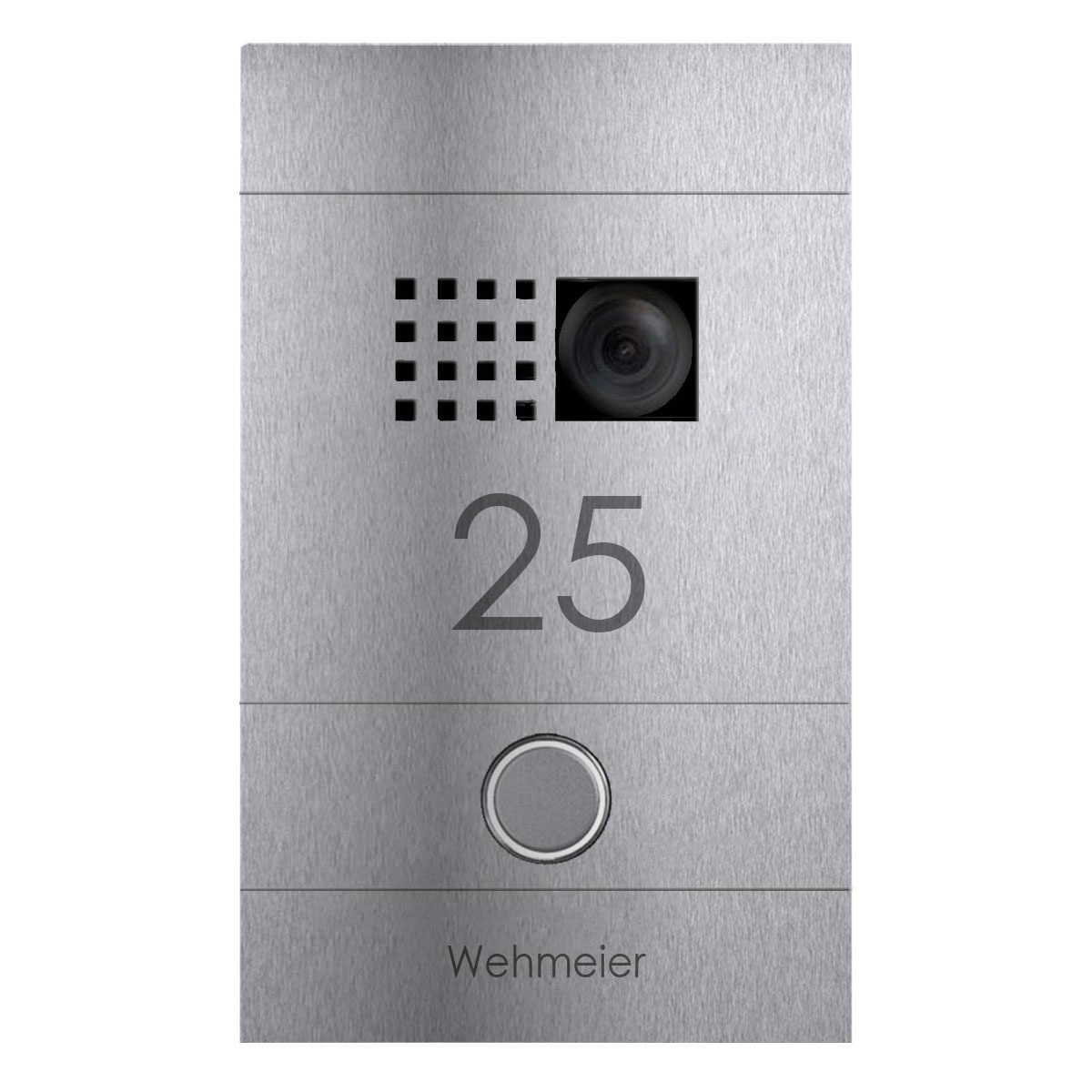

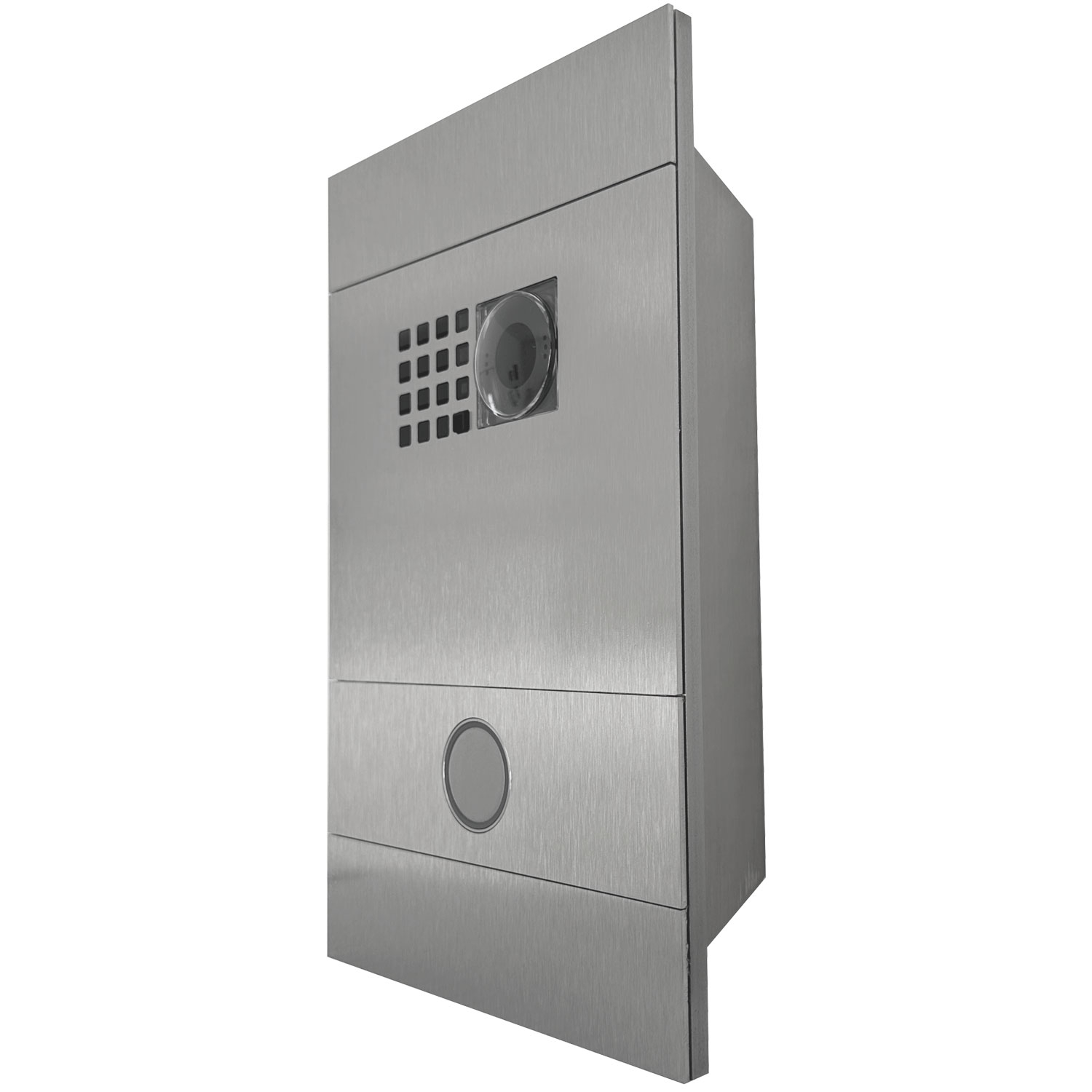

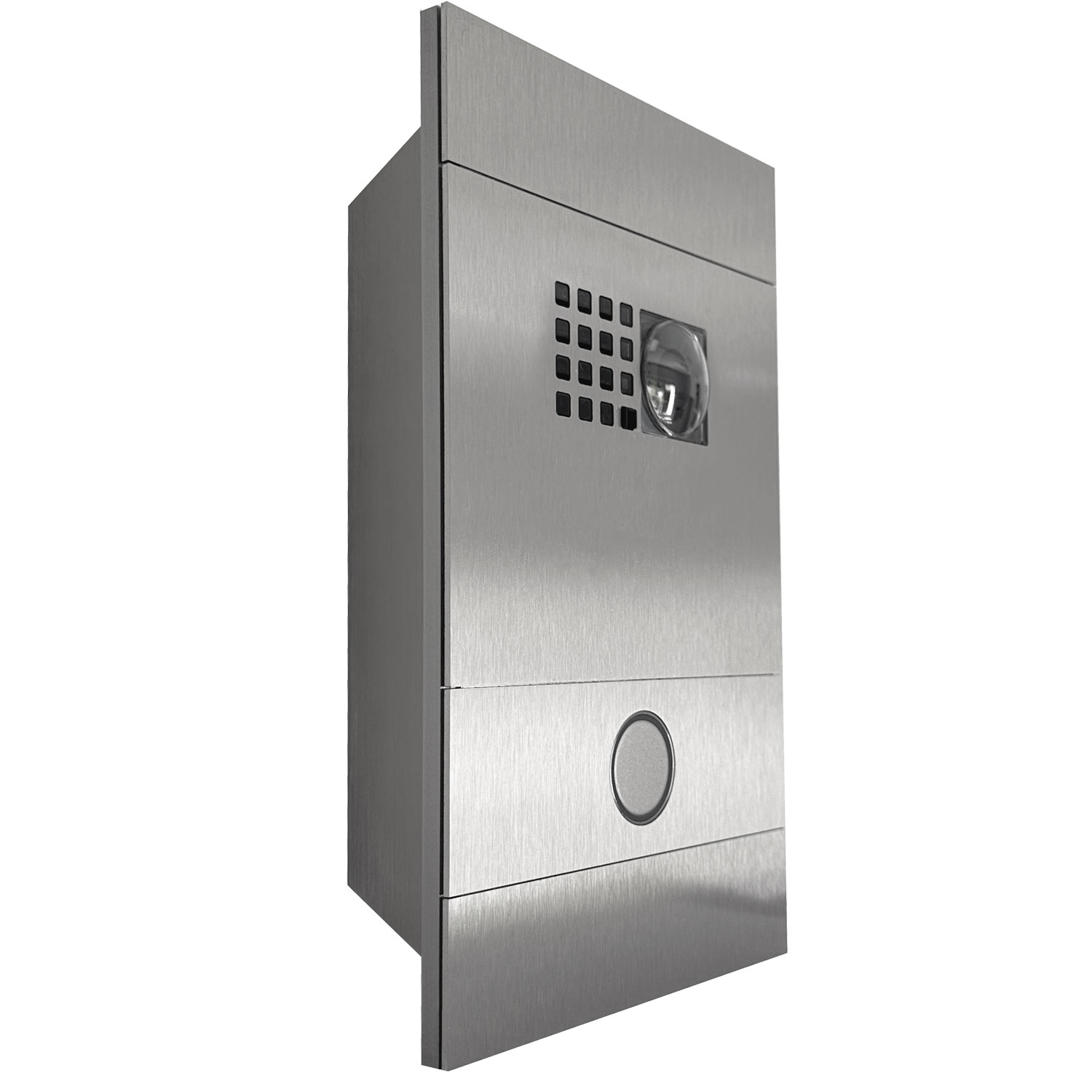

DIVISION 530S video door station - RAL of your choice - Comelit Ultra VIDEO Set

The DIVISION 530S video intercom is the perfect combination of state-of-the-art door communication, high-quality design and maximum ease of use. The elegant front made of polished stainless steel blends seamlessly into any building façade, while the white illuminated bell push sets a stylish accent. The high-quality finish in V2A stainless steel makes the system particularly robust, durable and weather-resistant - ideal for long-term outdoor use.

Equipped with the innovative Comelit camera, you can experience razor-sharp live images, a generous wide angle, face recognition and voice control. Convenient operation via mobile phone or indoor intercom: Using the free Comelit app, you can receive visitor calls directly on your smartphone, see the camera image in real time, speak to guests and even open doors or gates if you wish - no matter where you are.

With the DIVISION 530S video call station, you are opting for a flexible, modular system in which front panels and camera modules can be easily replaced even years later. This means your door communication is always up to date - both technically and visually.

  • Door station made entirely of stainless steel.
  • Replaceable front panels and installation box in V2A stainless steel, 240 grit polished.
  • 8-12V DC short-stroke bell push-button with LED ring lighting in white.

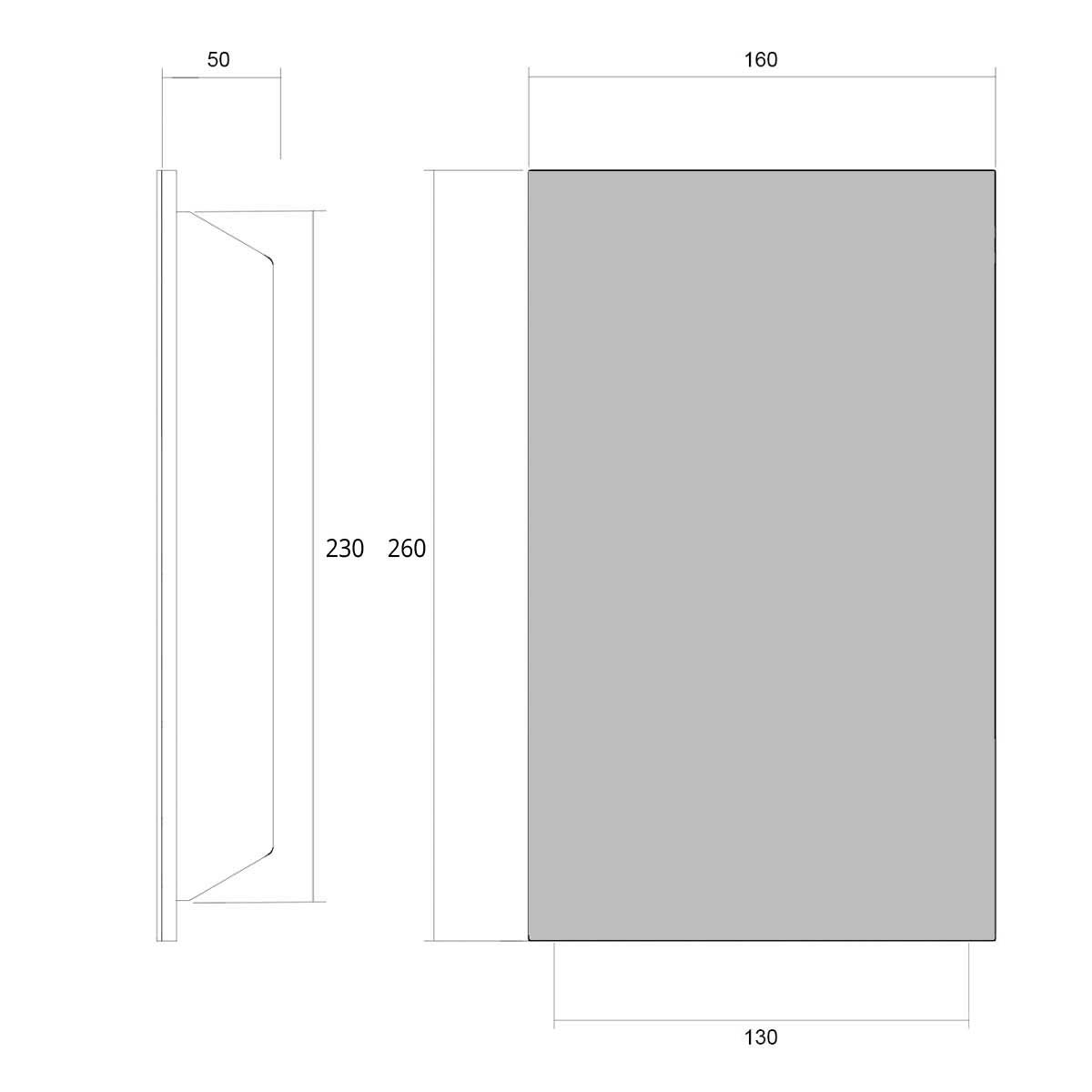

  • Dimensions of the bell plates: W 160 mm x H 260 mm x D 8 mm.

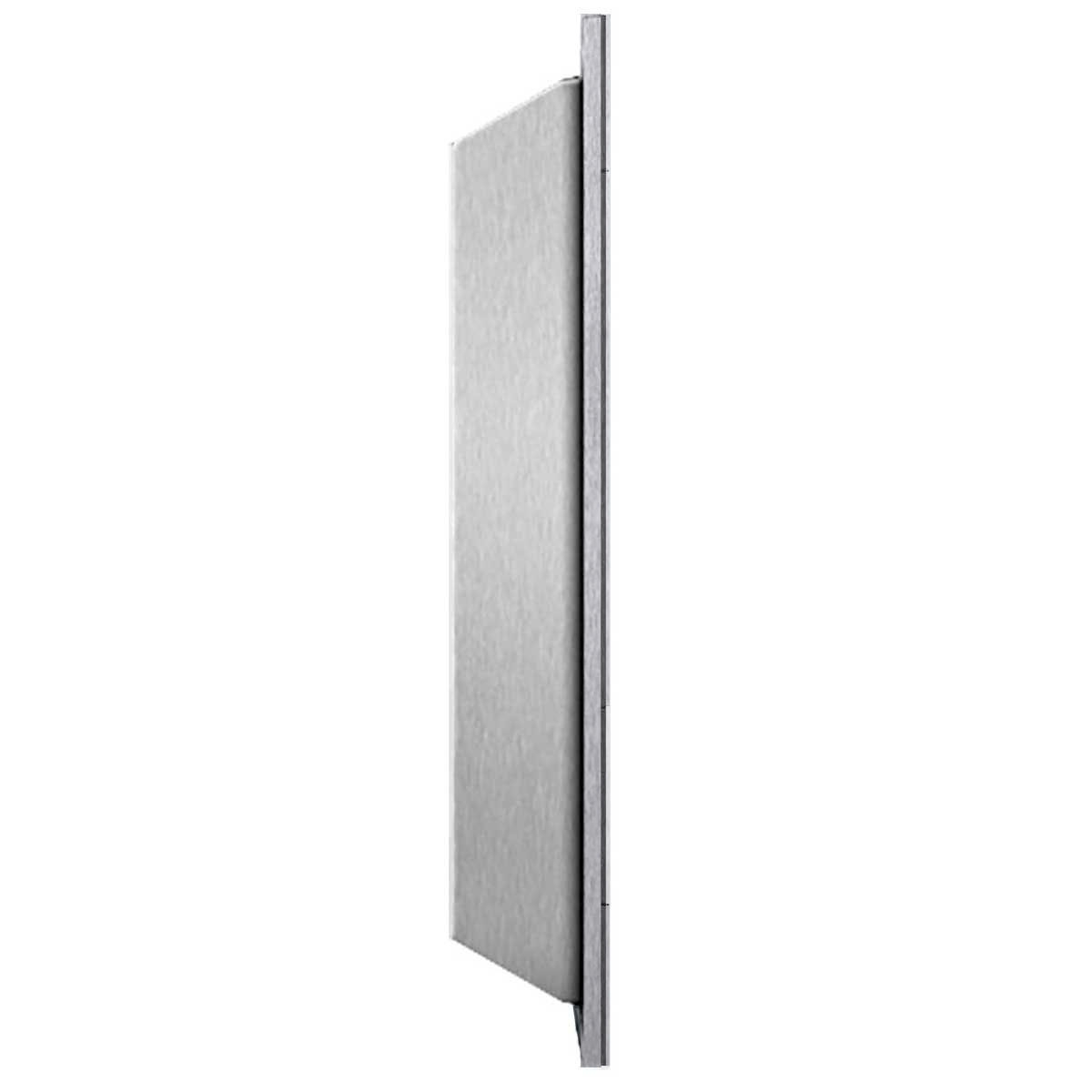

  • Installation box dimensions: W 130 mm x H 230 mm x D 50 mm.
  • Optionally for flush-mounted or surface-mounted installation.

Important information

Camera or intercom preparation

The intercom systems must be connected by an electrician. Please contact your trusted electrician for planning, fitting and installation.

Water protection

To achieve optimum water protection, the door station should be located under a canopy if possible.

Properties
Connection technology: 2-wire
Material: Stainless steel V2A 1.4301
Number of bell push buttons: 1 button
Manufacturer

Briefkasten Manufaktur

Briefkasten Manufaktur Lippe GmbH
Werler Str. 60
32105 Bad Salzuflen
Deutschland
info@briefkasten-manufaktur.de
WEEE-Reg.-Nr. DE 24652177

Width in mm: 130 | 160
Height in mm: 230 | 260
Total width in mm: 130 | 160
Depth in mm: 52,0
Weight in kg: 4
Delivery condition: Delivery is assembled
Shipping information: Depending on the order volume, delivery will be by parcel post or bulky goods. Partial deliveries are possible for dismountable products (z.B. For free-standing letterboxes, the stand and box can be dispatched separately).
Abmessungen
Reviews 0

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.

Excellent

Very good

Good

Acceptable

Unsatisfactory

Please enter at least 5 characters.
Please enter at least 40 characters.
(Maximum number of files:3, Maximum file size (in MB):16, Allowed file extensions:jpeg;jpg;png;webp)
No files selected

COMELIT Ultra

The complete solution for high-resolution video door communication

  • High-resolution camera:
    The integrated colour camera delivers detailed high-resolution video images. Ideal for clear identification of visitors – even with changing lighting conditions.
  • Wide-angle lens:
    Thanks to the large horizontal (2‑wire 120° / IP 160°) and vertical (90°) field of view, you can keep the entire entrance area in sight – with no blind spots.
  • CMOS sensor with high light sensitivity:
    The 1/3" CMOS sensor ensures stable image transmission even in low ambient light. Supported by automatic exposure and white balance.
  • Digital MEMS audio sensor & 28 mm loudspeaker:
    The integrated omnidirectional microphone in MEMS technology enables precise voice capture. The powerful speaker (4 Ohm, 2 W) provides clear sound even outdoors.
  • Full-duplex technology for real-time conversations:
    Simultaneous speaking and listening without interruption – like a natural telephone conversation.
  • Integrated front-mounted volume control:
    The speaker volume can be adjusted conveniently directly on the front panel.
  • Accessible feedback:
    Optical and acoustic signals (e.g. LED feedback) enhance usability for people with impairments. The signals are individually programmable.
  • Door release function & relay output:
    With an integrated door release output (3 A) and a potential-free relay contact (C, NC, NO – rated up to 10 A) for flexible control of door or gate systems.

The COMELIT Ultra video speaker combines video monitoring, professional audio quality and ease of use in a premium module. Ideal for those who rely on dependable door communication and modern features – in apartment buildings, commercial properties or high-end residential developments.

Highlights: Facial recognition and voice control

With Comelit's innovative facial recognition you can open your front door with a single glance – without a key, transponder or an app. The feature is available free of charge and enhances the comfort and security of your home.

In addition, the app offers integration with Amazon Alexa. This allows you to control your Comelit video door intercom using voice commands – for example, to open the door or display the camera feed. The set-up can be completed in a few simple steps without any specialist knowledge.

The (video) intercom sets from COMELIT are available in two modern connection options: 2-wire technology and ViP (IP technology). Both systems offer high flexibility, easy installation and future-proof network integration.

2-wire technology – ideal for refurbishment and retrofitting

The 2-wire systems from COMELIT are simply connected using existing cabling. This allows existing doorbell or intercom cabling to be reused – without additional costs for new cable runs, plastering or painting work. From the power supply (power supply unit 1209 included) in the meter cupboard, only two wires run to the built-in speaker or video speaker in the functional box of the mailbox system, and two wires run from the power supply unit to the apartment station (indoor unit) in the flat or to the gateway in the distribution cabinet. That's it. For the Wi‑Fi function of the apartment station, only a Wi‑Fi network within range is required. The Gateway 1406A is connected to the internet via the Ethernet port.

++ ideal for conversions and refurbishment, as existing doorbell cabling can be reused
++ no additional plastering or painting work required
++ low cost thanks to simple installation
++ quick and secure commissioning

ViP system (IP technology) – maximum flexibility and integration

As an alternative to 2‑wire technology, COMELIT offers the ViP technology (Video over IP), a modern, fully digital, Ethernet-based system. This connection type is ideal for new-build projects, complex building structures or where seamless integration into existing network or building management systems is required.

All functions – from door intercom and video surveillance to remote operation – can be managed easily and securely over the local network or the Internet. Thanks to PoE (Power over Ethernet), a single network cable is sufficient for data transmission and power supply. The ViP systems are scalable, support a wide range of end devices and can be controlled via the COMELIT app through the smart gateway or the Wi‑Fi door station.

++ ideal for new-build projects, larger installations and network integration
++ easy expansion with additional door or indoor stations
++ PoE power supply without a separate power cable
++ remote access via the Internet or VPN
++ maximum system flexibility through the IP standard

COMELIT App features

With the Comelit App you can enjoy maximum comfort and flexibility in door communication. You can receive calls from the video door station anywhere – at home, in the garden, when out and about or at work. The app connects your intercom system to your smartphone or tablet and enables intuitive, secure control of your entrance area.

Key features

  • Receive calls anywhere: Receive visitor calls from your video door station – wherever you are.
  • Internal communication: Conduct conversations between the indoor stations connected to the system – like an intercom.
  • Video recordings: Missed calls are automatically recorded as video. You can also view live images from your system’s cameras.
  • Access control: Open gates or doors directly via the app – conveniently with a tap, voice command or facial recognition.
  • Automation: Enable automatic access functions to allow registered persons to enter – for example via facial recognition at the door station.
  • Energy efficiency through push notifications: The app is only activated when there is an incoming call, significantly reducing battery and data usage.

The Comelit App is available for both iOS and Android and is compatible with all current Comelit video door-entry systems.

EU-compliant: COMELIT as a guarantee for your data

Several countries have barred certain manufacturers of video surveillance systems from entering their markets. These include the United States, which, under Section 889 of the John S. McCain National Defense Authorization Act, prohibits government contractors from procuring telecommunications or video surveillance equipment, systems or services (or a substantial component thereof) for the US Government that are manufactured or supplied by some of the largest manufacturers and their branches and subsidiaries.

If you choose Comelit, you are opting for a private Italian company without state ownership, which has neither an interest nor an obligation to transmit the data collected via our servers.

COMELIT even has more to offer!

  • the cloud server infrastructure is owned by COMELIT and is located in Europe (in Frankfurt, one of Europe’s major financial centres and an important hub for the data centre industry) and is managed in partnership with the world’s leading cloud provider: Amazon Web Services (AWS).
  • the components of Comelit products comply with the provisions of the NDAA and the GDPR.
